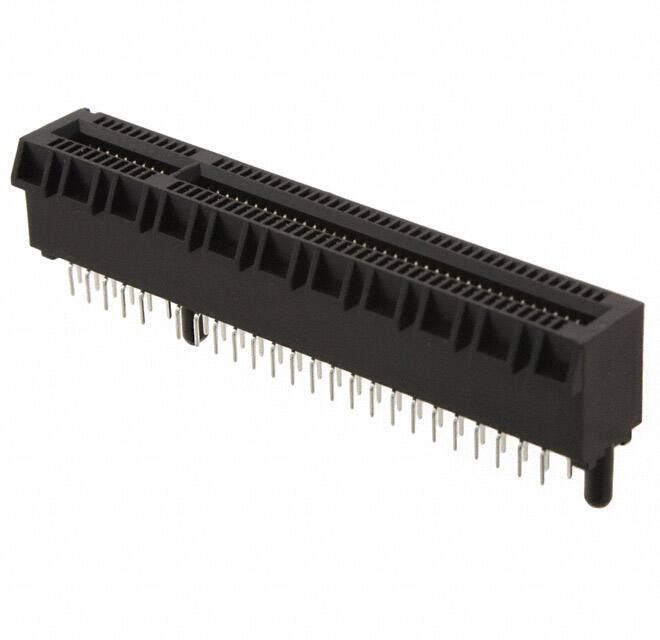

GWE49DHHN-T911

GWE49DHHN-T911

  • 厂商:

    SULLINS

  • 封装:

    -

  • 描述:

    CONN PCI EXP FEMALE 98POS 0.039

  • 数据手册
  • 价格&库存
GWE49DHHN-T911 数据手册
8 7 4 5 6 1 2 3 REVISIONS F REV. ECO. NO DESCRIPTION DATE BY H 2920 REMOVE MATERIAL CODE 'N' 2/13/2014 JHSU J 3048 ADD NOTE 13 FOR 'N' MATERIAL CODE 8/12/2014 JHSU K 3665 UPDATE PROCESSING TEMPERATURE 04/20/2017 LH F 1.73±0.08 .068±.003 11.65 .459 PIN A1 IDENTIFIER E B A 1.50 .059 1.80±0.15 .071±.006 1.00 .039 TYP. 7.45 .293 PIN A1 CL PIN B1 E 8.85 .348 1.50 .059 10.00±0.15 .394±.006 14.50 .571 D 5.10 .201 C 0.90 .035 3.75 .148 MAX. A 1.50 .059 MAX. D 3.75 .148 7.85 .309 11.25 .443 MAX. 0.80 .031 15.60 .614 4.40 .173 3.40 .134 C A 0.34 .013 2.00 .079 1.25 .049 1.65 .065 C 2X 1.20 .047 1.00 .039 TYP. 1.35 .053 2X TAIL LENGTH (SEE PART NUMBER CODING) +0.25 +.010 Tol. .XX - 0.13 .XXX - .005 3.25 .128 SECTION A-A B NOTES: 1. INSULATOR MATERIAL: NYLON 9T, UL 94V-0. 2. CONTACT MATERIAL: PHOSPHOR BRONZE. 3. CONTACT PLATING: SEE PART NUMBER CODING. 14.65 .577 4. CURRENT RATING: 1.1 AMP PER CONTACT. 5. VOLTAGAE RATING 50 V AC. 6. INSULATOR RESISTANCE: 1000 MEGOHMS MIN. 7. CONTACT RESISTANCE: 30 MILLI OHMS MAX. 8. DIELECTRIC WITHSTANDING: 500 V AC. 9. INSERTION FORCE: 117.3gf (1.15 N) MAX PER CONTACT PAIR USING A 1.70 mm (.067") STEEL CARD. 10. WITHDRAWAL FORCE: 15.31gf (0.15 N) MIN PER CONTACT PAIR USING A 1.44 mm (.057") STEEL CARD. 11. OPERATING TEMPERATURE: -10° C TO +85° C. 12. PROCESSING TEMP: WAVE/MANUAL SOLDERING ONLY. 13. MATERIAL CODE 'N' EQUIVALENT TO 'G'. A B D DRAWN Pb RoHS COMPLIANT UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MM[INCHES] NAME 03/09/2009 JH THE INFORMATION HEREIN CONTAINS PROPIETARY INFORMATION OF SULLINS ELECTRONICS AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED TO OTHERS FOR ANY PURPOSE EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY AN OFFICER OF SULLINS ELECTRONICS. TOLERANCES: ANGULAR: DATE 3 DECIMALS .X= 0.35 [.014] .XX= 0.25 [.010] .XXX= 0.08 [.0031] TITLE PCI EXPRESS, 1mm CC, DIP SOLDER(GEN 1) PART NUMBER SIZE C 7 6 5 4 3 2 G_E_ _DHHN-T9_1 CAGE CODE 54453 SCALE: 3.5:1 8 2.15±0.05 .085±.002 DWG. NO. 11045 REV K SHEET 1 OF 2 1 FILE NAME: C:\Users\LHsu.SEC\Desktop\ECO 3665, PCI E UPDATE PROCESSING TEMP\11045-K, (G,N)_E_ _DHHN-T9_ _\11045, (G,N)_E_ _DHHN-T9_ _ PRINT: 5/22/2017 A 8 7 4 5 6 1.90±0.06 .075±.002 1 2 3 -X- 1.50 .059 0.70 .028 TYP. F F 1.50 .059 0.10[.004] W X B PIN #1 1.00 .039 TYP. E 8.40 .331 MIN 3.20 .126 REF. 5.60 .220 E 2.40 .094 PIN "G" SEE TABLE -W- 10.00 .394 A 12.15 .478 0.50[.020] X 45 TYP F I/O PANEL DIRECTION PRIMARY (COMPONENT) SIDE D 1.57±0.13 .062±.005 D A PIN #1 D 10.00 .394 2X A 0.10[.004] 1.65 .065 1.35 .053 C C 1.25 .049 A PIN #1 4.20 .165 2.35±0.05 .093±.002 3.25 .128 B PIN #1 1.57 .062 B I/O PANEL DIRECTION SECONDARY (SOLDER) SIDE 0.10[.004] B ADD-IN CARD EDGE-FINGER DIMENSIONS 1.40 .055 0.70±0.08 .028±.003 1.00 .039 TYP . RECOMMENDED PCB LAYOUT (TOLERANCE: 0.05[.002]) 20°±2° DETAIL A SCALE 10 : 1 DRAWN Pb A RoHS COMPLIANT 8 7 6 5 4 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MM[INCHES] NAME 03/09/2009 JH THE INFORMATION HEREIN CONTAINS PROPIETARY INFORMATION OF SULLINS ELECTRONICS AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED TO OTHERS FOR ANY PURPOSE EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY AN OFFICER OF SULLINS ELECTRONICS. TOLERANCES: ANGULAR: DATE 3 DECIMALS .X= 0.35 [.014] .XX= 0.25 [.010] .XXX= 0.08 [.0031] TITLE PCI EXPRESS, 1mm CC, DIP SOLDER(GEN 1) PART NUMBER SIZE C 3 G_E_ _DHHN-T9_1 CAGE CODE 54453 DWG. NO. 11045 SCALE: 2:1 SHEET 2 OF 2 2 1 REV K FILE NAME: C:\Users\LHsu.SEC\Desktop\ECO 3665, PCI E UPDATE PROCESSING TEMP\11045-K, (G,N)_E_ _DHHN-T9_ _\11045, (G,N)_E_ _DHHN-T9_ _ PRINT: 5/22/2017 A
