CG8M000000S001

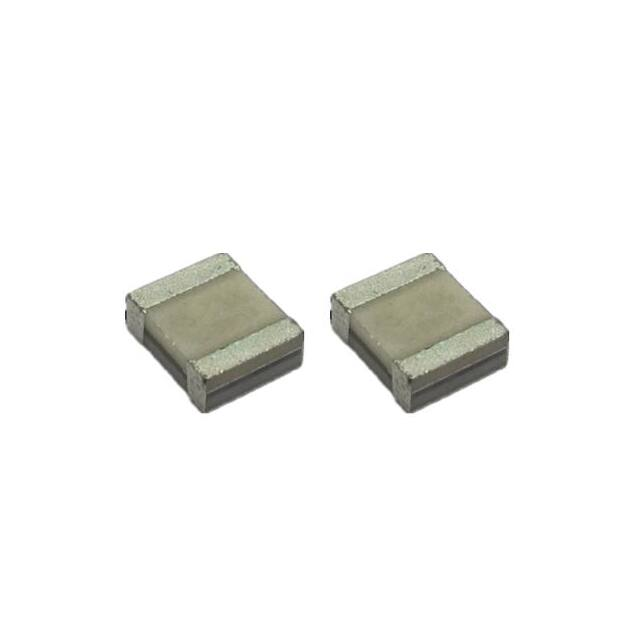

PART CODE: CG8M000000S001 SPECIFICATION SHEET SPECIFICATION SHEET NO. N0207-CG8M000000S001 DATE Feb. 07, 2021 REVISION A0 DESCRIPITION SMD Ceramic Resonator, 3731 Type, L3.7*W3.1*H1.2mm, Without Built-in Capacitance, 2 pads, CRAV Series 8.000MHz, Frequency Accuracy +/-0.5%, Operating Temp. Range -25°C ~+85°C, Reflow Profile Condition 260 °C Max. RoHS/RoHS III compliant, Tape/Reel CUSTOMER CUSTOMER PART NUMBER CROSS REF. PART NUMBER ORIGINAL PART NUMBER TGS CRAV 8.0MT TLF PART CODE CG8M000000S001 VENDOR APPROVE Issued/Checked/Approved DATE: Feb. 07, 2021 CUSTOMER APPROVE DATE: NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES MAIN FEATURE • SMD Ceramic Resonator, L3.7*W3.1*H1.2mm, 2 pads • Low cost & Without Built-in Capacitance • Reflow Profile Condition 260 °C Max. • Wide Frequency Range • Cross more competitors part • RoHS III compliant APPLICATION • Bluetooth, wireless communication set • Communication Electronics RFQ PART CODE GUIDE Request For Quotation CG 8M000000 S 001 1 2 3 4 1) CG: Part family Code for SMD Ceramic Resonator, L3.7*W3.1*H1.2mm, 2 pads, CRAV series 2) 8M000000: Frequency range code for 8.00000MHz 3) S: SMD type, Package Tape/Reel, 1000pcs/Reel 4) 001: Specification code for original part No.: TGS CRAV 8.0MT TLF MORE FREQUENCY RANGE AVAILABLE (MHz) 8.000 12.000 NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES DIMENSION (Unit: mm, Tol. +/-0.15mm) Image for reference CRAV Marking Line 1: Freq. Range+ QC Code (A~Z) Recommend Pad Layout NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES ELECTRICAL PARAMETERS Parameter Part No. Symbol Units Value Min. Original Manufacturer Holder Type Frequency Range Typical Condition Max. TGS TGS Crystals CRAV SMD Ceramic Resonator, L3.7*W3.1*H1.2mm, 2 pads 8.0 MHz 8.0 Withstanding Voltage V 50 @DC, 1 min Insulation Resistance MΩ 500 @AV, 1 min. Operation Temperance °C -25 +85 Storage Temperance °C -55 +85 Rating Voltage V 6 DC 15 p-p Frequency Accuracy % Resonant Impedance Ω 40 Temperature Coefficient of Oscillation Frequency % +/-0.3 Oscillation Frequency drift， -25℃～ +85℃） Oscillation Frequency Aging Rate (10 years) % +/-0.3 From initial value IC application Design Mode 1/6TC4069UBP MG Built-in Capacitance Other 0.5 pF N/A Package T Tape/Reel RoHS Status LF RoHS III compliant Add Value N/A Internal Control Code * N/A Note: 1) Original Part Number: TGS CRAV 8.0MT TLF 2) * Internal Control Code- 2 letter or digits; Blank: N/A NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES RELIABILITY Test Items Humidity Test Method And Conditions Performance Requirements Keep the resonator at 40℃±2℃ and 90%-95% RH for 96h. Then Release the resonator into the room Condition for 1h prior to the Measurement. It shall fulfill the specifications in Table 1. High Temperature Exposure Subject the resonator to -85℃±2℃ for 96h, then release the resonator into the room conditions for 1h prior to the measurement. It shall fulfill the specifications in Table 1. Low Temperature Exposure Subject the resonator to -55℃±2℃ for 96h, then release the resonator into the room conditions for 1h prior to the measurement. It shall fulfill the specifications in Table 1. Temperature Cycling After temperature cycling of blow table was performed 5 times, resonator shall be measured after being placed in natural conditions for 1h. Time: 30 min.@ -25 +/-3℃ ; Time: 30 min. @85 +/-3℃ It shall fulfill the specifications in Table 1. Vibration Subject the resonator to vibration for 2h each in x, y and z axis With the amplitude of 1.5mm, the frequency shall be varied uniformly between the limits of 10 Hz—55Hz. It shall fulfill the specifications in Table 1. Drop the resonator randomly onto a wooden floor from the height of 100cm 3 times. It shall fulfill the specifications in Table 1. Passed through the re-flow oven under the following condition and left at room temperature for 1h before measurement It shall fulfill the specifications in Table 1. Solder Ability Dipped in 245℃±5℃ solder bath for 3s±0.5 s with rosin flux (25wt% ethanol solution.) The terminals shall be at least 95% covered by solder. Board Bending Mount a glass-epoxy board (Width=40mm,thickness=1.6mm),then bend it to 1mm displacement and keep it for 5s. (See the following figure 1) Mechanical damage such as breaks shall not occur. Mechanical Shock Soldering Test Table 1 Item Specification after test Oscillation Frequency Change △Fosc/Fosc (%) max Resonant Impedance (Ω) max ±0.3 40 The limits in the above table are referenced to the initial measurements. NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES TEST CIRCUIT (For Reference Only) Note: Parts shall be tested under the condition ( Temp.: 20±15℃,Humidity 65±20% R.H.) unless the standard condition(Temp.: 25±3 ℃, Humidity :65±10% R.H.) is regulated to measure. SUGGESTED REFLOW PROFILE (For Reference Only) BOARD BENDING TEST- FIGURE 1 NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com PART CODE: CG8M000000S001 SMD CERAMIC RESONATOR CRAV SERIES TAPE/REEL (Unit: mm) All Devices are packed in accordance with EIA standard RS-481-2 and specifications., 1000pcs/Reel Symbol Dimension ɸA 180±3.0 ɸB 60.0 Min. W 12.4 Min. T 19.4 Max. DISCLAIMER NextGen Components, Inc. reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information NextGen Components, Inc. sales@NextGenComponent.com www.NextGenComponent.com
