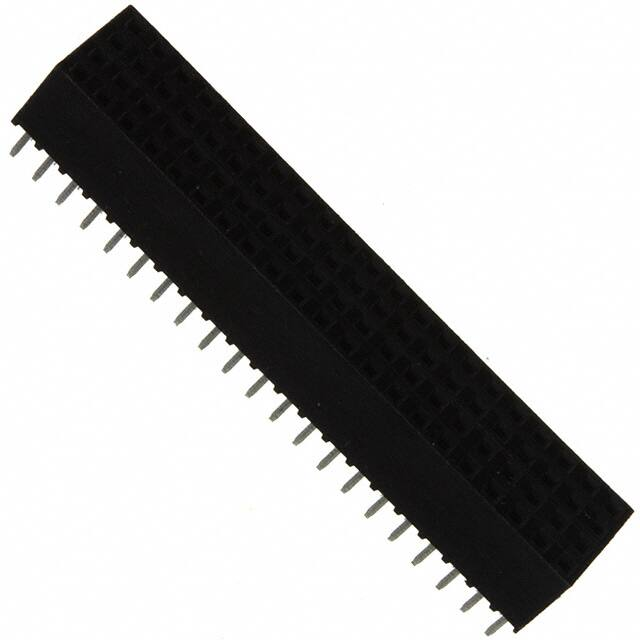

NPRN214EFCN-RC

8 7 4 5 6 1 2 3 REVISIONS REV. ECO. NO DESCRIPTION DATE BY D 2515 ADD "REF." IN CONTACT POINT DIST, ADD NOTE 10 MATING PART 01/16/2012 LH E 3120 UPDATE PROCESSING TEMPERATURE FOR NYLON 6T MATERIAL 04/15/2015 LH F F E E .079 2.00 A±.004 [ .10] .079 2.00 .079 2.00 .236 6.00 D D .079 2.00 B±.012 [ 0.30] RECOMMENDED PCB LAYOUT .031 0.80 .315 8.00 .072 1.82 C C .189 4.80 .250 6.35 .094±.008 2.40±0.20 .079±.002 2.00±0.05 B A±.008 [ 0.20] .020±.002 0.50±0.05 .020±.002 0.50±0.05 B .079±.004 2.00±0.10 .236 6.00 A 05-20, 0.20mm MAX. NOTES: 21-30, 0.30mm MAX. 1. INSULATOR MATERIAL: SEE PART NUMBER CODING. 2. CONTACT MATERIAL: PHOSPHOR BRONZE. 3. CONTACT PLATING: SEE PART NUMBER CODING. 4. CURRENT RATING: 2 AMPS 5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN. 6. CONTACT RESISTANCE: 20 MILLIOHMS MAX. 7. DIELECTRIC WITHSTANDING: AC 500V. 8. OPERATING TEMPERATURE: -40° C TO +105° C. 9. PROCESSING TEMP.: WAVE/MANUAL SOLDERING ONLY. 10.MATES WITH SULLINS .079 [2.00] CONTACT CENTER MALE HEADER SERIES. (.020 [0.50] SQUARE POSTS) 8 7 6 5 Pb RoHS COMPLIANT 4 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES [MM] TOLERANCES: ANGULAR: 5 DECIMALS .X= .012 [.30] .XX= .008 [.20] .XXX= .006 [.15] DRAWN DATE NAME 01/10/2009 JH THE INFORMATION HEREIN CONTAINS PROPIETARY INFORMATION OF SULLINS ELECTRONICS AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED TO OTHERS FOR ANY PURPOSE EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY AN OFFICER OF SULLINS ELECTRONICS. TITLE HEADER, FEMALE 2mm CC, 4 ROWS, ST PART NUMBER SIZE C CAGE CODE 54453 SCALE: 12:1 3 2 NPxNxx4EFCN-RC DWG. NO. 10665 SHEET 1 OF 1 1 REV E FILE NAME: 10665, NPxNxx4EFCN-RC A
