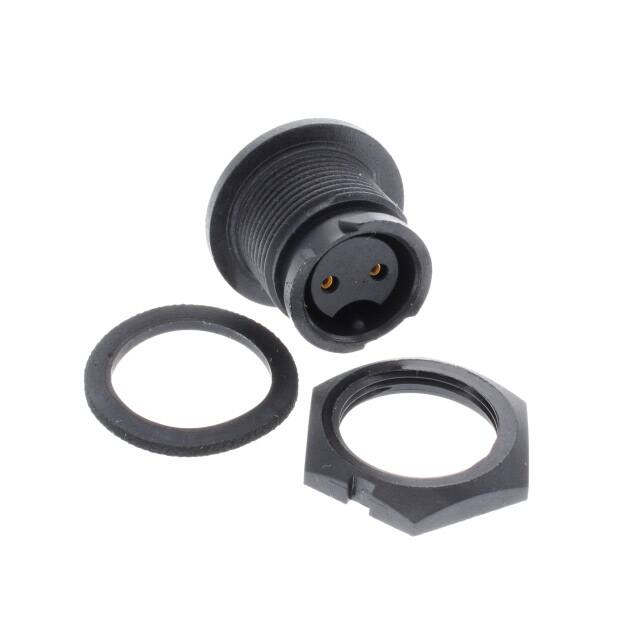

W17281-2SG-P-300

ASS'Y P/N CONTACT QTY NOTES: W17281-2SG-P-300 2 #20 1. 2. 3. 4. W17281-3SG-P-300 3 #20 ALL PARTS ARE BULK PACKED CONTACTS INSERTED INTO HOUSING AS SHOWN. SEE DRAWING HPMCSTD FOR HOLE PATTERN. ALL DIMENSIONS ARE REFERENCE EXCEPT THOSE WITH A TOLERANCE .715 18.2 .625 15.9 .140 3.6 CUSTOMER PRINT .395 10 D FLAT 2 1 .050 1.3 .545 13.8 .137±.015 3.5±0.4 CAVITY INDICATOR TYP. 2 .040 1 .620 15.7 ACROSS FLATS 1 (2-3) #20 SOCKET CONTACTS, PC TAIL MAT'L: GOLD PLATED COPPER ALLOY FACE VIEW HEX NUT MAT'L: UV PBT, BLACK PART NUMBER: W17281-XSG-P-300 1 WIRE VIEW 7/16-28 UNEF-2A MOD. THREAD W17281-2SG-P-300 W17281-2SG-P-300 GASKET MAT'L: NEOPRENE, BLACK 2 PANEL CONNECTOR, FEMALE MAT'L: UV PBT, BLACK 2 .401±.003 10.2±0.1 1 3 WIRE VIEW 3 W17281-3SG-P-300 FACE VIEW W17281-3SG-P-300 .430±.003 10.9±0.1 CUSTOMER APPROVAL RECOMMENDED PANEL CUT-OUT THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS UNLESS INDICATED RoHS COMPLIANT A MA 08-05-20 JGK 8/13/19 REV. INIT. DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX RELEASED PER PDR 18004-2 DRAWING CREATED FOR PDR #18004 DESCRIPTION ORIG. DRAWN BY: DATE: 8/13/19 JGK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE NTS B FILE: W17281-XSG-P-300 SHEET 1 OF 1 DIRECTORY: SLW PANEL MOUNT ASSEMBLY (2-3) #20 SOCKET CONTACTS, PC TAIL INSTA-CLICK™ MICRO-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: W17281-XSG-P-300 REV A
