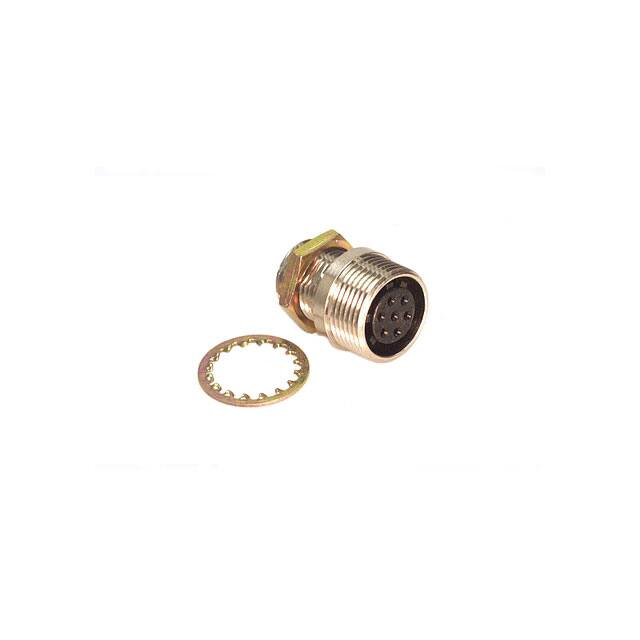

SR30-10R-7S(71)

Circular connectors for small electronic devices SR30 Series Features 1. Compact and light weight design Optimally suited for use in small electronic devices such as radio equipment, the SR30 has a maximum outer shell diameter of Ø15. 2. Robustness The metal construction provides for a small but robust connector. Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 3. Smart design The flexible strain relief is strong enough to maintain its shape and resist bending stresses. 4. Variation Items No. of Contacts 4 contacts, 6 contacts, 7 contacts Connector type Plug and jack : Straight Receptacle : Straight Termination version Plug and jack : Soldering Receptacle : Soldering Receptacle mounting method Tightened with nuts on either of the front or back of the panel (6-contact only) Product Specifications Ratings Rated current Rated voltage 1A 100V AC, 140V DC Operation temperature range Storage temperature range Items 1. Contact resistance 10mø max Specifications Measured at 1A DC 2. Insulation resistance 200Mø min Measured at 100V DC 3. Withstanding voltage No flashover or dielectric breakdown. No electrical discontinuity for 10µs 4. Vibration resistance or greater. No electrical discontinuity for 10µs 5. Shock resistance or greater. 6. Mating cycle Contact resistance : 15mø max −10 to +60ç −10 to +60ç Conditions 300V AC for 1 minute 10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions, 2 hours each 2 Acceleration : 490m/s , duration : 11ms, 3 axis directions, 3 cycles each 1,000 times 7. Temperature cycle Insulation resistance : 200Mø min −30°C : 30 minutes ➝ Normal temperature : 10 to 15 minutes ➝ 85ç : 30 minutes ➝ Normal Temperature : 10 to 15 minutes, left for 5 cycles Insulation resistance : 10Mø min (at high humidities) 100Mø min (when dry) Temperature : 40°C, relative humidity : 90 to 95%, left for 96 hours 8. Humidity resistance Materials / Finish Items Plug Jack Receptacle Insulator Contact Shell Hood Clamp Screw Insulator Contact Shell Gasket Nut Material Polyacetal resin Brass or phosphor bronze Brass or zinc die-cast Chloroprene rubber Brass Steel Polyacetal resin Phosphor bronze Brass Polyamide resin Steel Finish ----------Gold plating Nickel or Chromium plating --------------------Nickel plating ----------Gold plating Chromium plating ----------Nickel plating In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. Remarks --------------------------------------------------------------------------------------------------------------- 2018.8w 1 SR30 Series●Circular connectors for small electronic devices ■Product Number Structure Refer to the chart below when determining the product specifications from the product number. Please select from the product numbers listed in this catalog when placing orders. ●Connector SR30 - 10 W P A - 6 P A ( **) ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❶ Model name : SR30 Series ❷ Shell size : Shell size is the outer diameter of the mating end of the plug. ❸ Particularity :   No indication : Standard   W : Waterproof Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ❹ Shell type   P : Plug   R : Receptacle   J : Jack ❺ Shell variation : Connectors are distinguished by A, B, or C if another variation is applied in the same form. ❻ Number of contacts : Indicates the number of contacts. ❼ Contact form   P : Male contact   S : Female contact ❽ Variation of insulator   A : Insulator material : Fluorinated synthetic resin ❾ Other specifications : 2 numerical digits will be added when there is a specification change other than shown in positions ❶∼❽ ●Accessory SR30 - 10 RC 1 ( **) ❶ ❷ ❸ ❹ ❺ ❶ Model name : SR30 Series ❷ Shell size : Shell size is the outer diameter of the mating end of the plug. ❸ Accessory name : RC : Receptacle cap ❹ Form type : A number is added if there are some variations. ❺ Other specifications : 2 numerical digits will be added when there is a specification change other than shown in positions ❶∼❹ 2 SR30 Series●Circular connectors for small electronic devices Plug C ØB D ØA M11.5×0.75 （Representative example.） SR30-10PE-6P(74) HRS No. No. of contacts SR30-10PE-4P(71) 103-0265-2 71 SR30-10PE-6P(74) 103-0258-7 74 SR30-10PG-6P(31) 103-0273-0 31 SR30-10PX-6P(31) 103-0336-9 31 SR30-10PF-6P(71) 103-0319-0 71 SR30-10PF-7P(71) 103-0316-1 71 7 SR30-10PM-4P(31) 103-0341-9 31 4 SR30-10PM-6P(31) 103-0288-8 31 SR30-10PQ-6P(71) 103-0313-3 71 SR30-10WP-6PA(71) 103-0350-0 71 SR30-P 103-0266-5 ØA 4 ØB C D Remarks ----------- 4.3 51.5 32 13 6 5.2 5.7 49.0 5.5 55.0 15 6 5.7 49.0 4.3 See Note 1 31 ----------- ---- See Note 1 ---- ----------- ---- Silver plated contacts only ---- ----------- ---- ----------- 57.5 38 Screw attached 51.5 32 Waterproof Metal fitting for clamping ----------- Note 1 : When ordering the SR30-10PE-6P or SR30-10PX-6P, order SR30-P cable clamps separately, because such plugs have no cable clamps. Note 2 : The inner diameter of solder pot for male contact is Ø0.8. Note 3 : Cable clamping force, cable rotation force, and other aspects may differ depending on the cable construction. We recommend that you verify the suitability of the cable assembly before use or production. Receptacle（Jam nut to be fastened） （12.7） M9×0.75 Ø12.0 Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Part No. M11.5×0.75 7.5 1 7.5 18 Ø0.9 （Inner diameter of solder pot） 8 11 （Representative example.） SR30-10R-6S(71) HRS No. No. of contacts Remarks SR30-10R-4S(71) Part No. 103-0264-0 71 4 ----------- SR30-10R-6S(71) 103-0239-2 71 6 ----------- SR30-10R-7S(71) 103-0317-4 71 7 Silver plated contacts SR30-10WR-6SA(71) 103-0349-0 71 6 Waterproof (Remarks) The mounting panel thickness should be 5mm or less. Note 1 : Some dimensions on the waterproof types differ from those given below. 3 SR30 Series●Circular connectors for small electronic devices Receptacle (Jam nut to be fastened from front panel) M13×1 1.5 Ø16 Ø15 M11.5×0.75 Ø16.4 11.6 Ø0.9 (Inner diameter of solder pot) 0.8 14.3 18 SR30-10RD-6S(71) (Representative example.) Part No. HRS No. SR30-10RD-6S(71) No. of contacts 103-0302-7 71 6 Jack C M11.5×0.75 ØA ØB D (Representative example.) SR30-10JE-6S(72) Part No. HRS No. SR30-10JE-4S(71) 103-0301-4 71 SR30-10JE-6S(72) 103-0259-0 72 SR30-10JM-6S(71) 103-0292-5 71 SR30-10JF-7S(71) 103-0330-2 71 No. of contacts 4 ØA ØB C D 4.3 53.5 34 6 13 5.7 51 7 5.5 57 Remarks ----------Note 1) ---- ----------Silver plated ---contacts Note 1 : When ordering the SR30-10JE-6S receptacles, order SR30-P (103-0266-5) cable clamps separately, because they have no cable clamps. Note 2 : The inner diameter of solder pot for male contact is Ø0.9. Note 3 : Cable clamping force, cable rotation force, and other aspects may differ depending on the cable construction. We recommend that you verify the suitability of the cable assembly before use or production. Cap 100 Ø6 3 Ø3. 12 SR30-10RC1(71) 7 Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. (Remarks) The mounting panel thickness should be 3 mm or less. Ø13 Part No. SR30-10RC1(71) HRS No. 103-0344-7 71 M11.5×0.75 Remarks ----------- 4 SR30 Series●Circular connectors for small electronic devices Dip post arrangement sizes for receptacles 2.2 1 2 6 1 4 7 5 1 3 2 2 4- 1 1 6 5 2.2 Main mating guide 6-Ø0.6 .6 Ø0 7 contacts 7-Ø0.6 4 1.9 Main mating guide 1.73 2 3 1.9 2 Main mating guide 6 contacts 2 1.73 1 2 4 contacts 2 Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. (Remarks) 1. Figures are views from the mating side of the receptacle. 2. A machining tolerance of ±0.05mm is recommended for the PCB layout dimensions. Reference termination procedure (plug and jack sides) ○ Assembly procedure Metal fitting for clamping 1. Please use the cables with a finished outer Metal fitting for Wrench application point 3 or more Wrench gap: 8mm tightening Wrench gap: 9mm Hood Cable diameter of between Ø4.2 and 4.8 and the Approximately 2 10.5 Block Boss P shell or J shell Set screw Washer Coupling For details on usage, please contact our Engineering Dept. or Sales Dept. 150-0004-6 SR30-10P-T04 Jig for termination Crimping Tool (for use with cable diameters between Ø 4.2mm and 4.8mm) 150-0001-8 nominal conductor cross section of 0.3mm2. 2. Pass the cable through the hood and metal fitting for tightening in order. Cut the cable end at an approximate length as shown in the figure on the left. 3. Insert the block into the jig for termination and terminate the cable by soldering. 4. Crimp the cable onto the metal fitting for clamping (SR30-P) several times with using the crimping tool (SR30-10PE-T), in such a way that the outer diameter becomes approximately Ø5.2. 5. After termination, tighten the metal fitting for tightening into the threaded section on the block (P shell, J shell) to a torque of approximately 2 N•m (20 kg•cm), using a single-acting torque wrench. When performing tightening on the jack side, be sure to fix the wrench application point on the J shell. 6. Secure the metal fitting for clamping by tightening a set screw on either side of the two bosses on the metal fitting for clamping to a torque of approximately 0.1 N•m (1 kg•cm) in such a way that the tip of the set screw slightly sinks. 7. Place the hood over the metal fitting for tightening. The procedure has been completed. Please be sure to apply a small amount of thread adhesive to prevent loosening. SR30-10PE-T (handle shape is shown as an example.) 5 Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. SR30 Series●Circular connectors for small electronic devices USA: HIROSE ELECTRIC (U.S.A.), INC. HEADQUARTERS CHICAGO OFFICE 2300 Warrenville Road, Suite 150, Downers Grove, IL 60515 Phone : +1-630-282-6700 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. SAN JOSE OFFICE 2841 Junction Ave, Suite 200 San Jose, CA. 95134 Phone : +1-408-253-9640 Fax : +1-408-253-9641 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. DETROIT OFFICE (AUTOMOTIVE) 17197 N. Laurel Park Drive, Suite 253, Livonia, MI 48152 Phone : +1-734-542-9963 Fax : +1-734-542-9964 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. BOSTON OFFICE 300 Brickstone Square Suite 201, Andover, MA 01810 Phone : +1-978-662-5255 THE NETHERLANDS: HIROSE ELECTRIC EUROPE B.V. Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. GERMAN BRANCH Schoenbergstr. 20, 73760 ostfildern Phone : +49-711-456002-1 Fax : +49-711-456002-299 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. NUREMBERG OFFICE Neumeyerstrasse 22-26, 90411 Nurnberg Phone : +49-911 32 68 89 63 Fax : +49-911 32 68 89 69 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. HANOVER OFFICE Bayernstr. 3, Haus C 30855 Langenhagen, Germany Phone : +49-511 97 82 61 30 Fax : +49-511 97 82 61 35 http://www.hirose.com/eu/ FRANCE: HIROSE ELECTRIC EUROPE B.V. PARIS OFFICE 130 Avenue Joseph Kessel, Bat E, 78960 Voisins le Bretonneux, France Phone : +33-1-85764886 Fax : +33-1-85764823 http://www.hirose.com/eu/ UNITED KINGDOM: HIROSE ELECTRIC EUROPE BV (UK BRANCH) 4 Newton Court, Kelvin Drive, Knowlhill, Milton Keynes, MK5 8NH Phone : +44-1908 202050 Fax : +44-1908 202058 http://www.hirose.com/eu/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. (SHANGHAI, HEADQUARTERS) 18, Enterprise Center Tower 2, 209# Gong He Road, Jing’an District, Shanghai, CHINA 200070 Phone : +86-21-6391-3355 Fax : +86-21-6391-3335 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO.,LTD. BEIJING BRANCH A1001, Ocean International Center, Building 56# East 4th Ring Middle Road, ChaoYang District, Beijing, 100025 Phone : +86-10-5165-9332 Fax : +86-10-5908-1381 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. SHENZHEN BRANCH Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre, 5002 Shen Nan Dong Road, Shenzhen City, Guangdong Province, 518008 Phone : +86-755-8207-0851 Fax : +86-755-8207-0873 http://www.hirose.com/cn/ HONG KONG: HIROSE ELECTRIC HONGKONG TRADING CO., LTD. Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560 http://www.hirose.com/hk/ TAIWAN: HIROSE ELECTRIC TAIWAN CO., LTD. 103 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377 Fax : +886-2-2555-7355 http://www.hirose.com/tw/ KOREA: HIROSE KOREA CO.,LTD. 143, Gongdan 1-daero, Siheung-si, Gyeonggi-do, 15084, Korea Phone : +82-31-496-7000 Fax : +82-31-496-7100 http://www.hirose.co.kr/ SINGAPORE: INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. DELHI LIAISON OFFICE HIROSE ELECTRIC SINGAPORE PTE. LTD. 03, Anson Road, #20-01, Springleaf Tower, Office NO.552, Regus-Green Boulevard, Level5, Tower C, Sec62, Plot B-9A, Block B, Noida, 201301, Uttar Pradesh, India Singapore 079909 Phone : +91-12-660-8018 Phone : +65-6324-6113 Fax : +91-120-4804949 Fax : +65-6324-6123 http://www.hirose.com/sg/ http://www.hirose.com/sg/ INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGALORE LIAISON OFFICE Unit No-403, 4th Floor, No-84, Barton Centre, Mahatma Gandhi (MG) Road, Bangalore 560 001, Karnataka, India Phone : +91-80-4120 1907 Fax : +91-80-4120 9908 http://www.hirose.com/sg/ MALAYSIA: THAILAND: PENANG REPRESENTATIVE OFFICE BANGKOK OFFICE (REPRESENTATIVE OFFICE) 73-3-1, Ideal@The One, Jalan Mahsuri, Bayan Unit 4703, 47th FL., 1 Empire Tower, South Sathorn Road, Yannawa, Sathorn, Bangkok 10120 Thailand Lepas Penang, 11950, Malaysia Phone : +66-2-686-1255 Phone : +604-648-5536 Fax : +66-2-686-3433 http://www.hirose.com/sg/ http://www.hirose.com/sg/ ® 6 2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-3526 Fax: +81-45-591-3726 http://www.hirose.com http://www.hirose-connectors.com The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 08/2018. Contents are subject to change without notice for the purpose of improvements.
