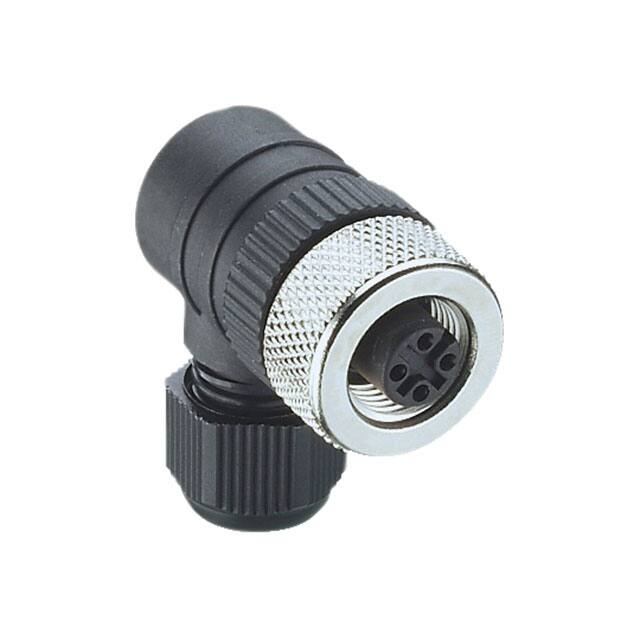

CONB14NF-A

General Accessories Connector Plug Terminals Type CONB14NF-A/S • Straight or 90° connectors • M12 version • 4 wire • IP 67 • UL approved CONB14NF-A CONB14NF-S Product Description Ordering Key M12 connector plug terminals for 4 wires. High quality CONB 1 = M12 DC 4 = 4 wire (BN, BU, BK, WH) N= Not shielded F= Female A = Angled S = Straight and approved by UL. Come instraight or angled versions. Type Selection CONB14NF-A/S Plug type Ordering number 4-Wire Angled 4-Wire Straight CONB14NF-A CONB14NF-S Specifications Rated operating voltage Rated current Contact resistance Rated impulse voltage Insulation resistance Cable outlet diameter Connection wires Contact Material Contact plating Contact bearer material 250VAC/DC ≤4A ≤5mΩ 2.0KV >109Ω 3.6 to 5mm max 0.75mm2 CuZn CuSnZn, pre-coppered PBT, black Specifications are subject to change without notice (12.04.2016) Moulded body material O-ring sealing Coupling nut Cup nut Knurled but Degree of protection Pollution Degree Temperature Weight PBT, black FKM PBT, black PBT, black CuZn, nickel plated IP67 3 -25° to 90°C approx 25g 1 CONB1... Dimensions Straight version Angled version 35 Ø 20 52.5 Ø 20 27.5 Contact layout (4-wire) Female 3 4 2 1 Derating curve (DIN EN 60512-5-2) 6 Current [A] 5 4 3 2 1 0 0 2 10 20 30 40 50 Temperature [ºC] 60 70 80 90 100 Specifications are subject to change without notice (12.04.2016)
