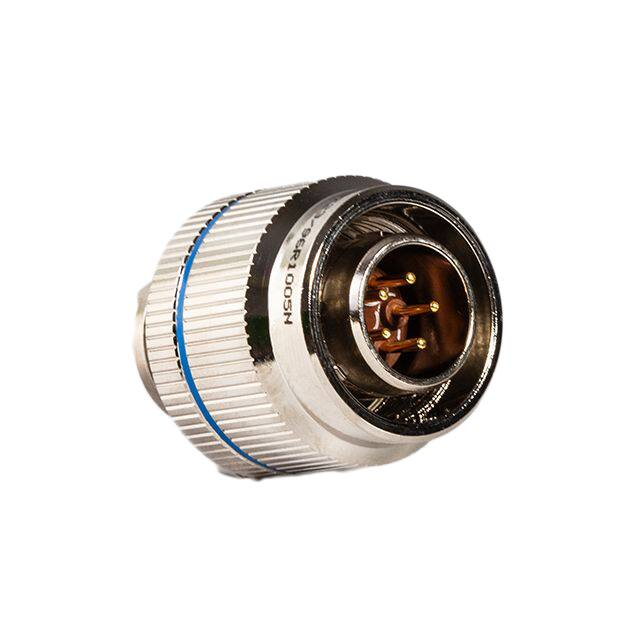

M83723/77R2039N

MIL-DTL-83723 Series III Features and Application Bayonet and Threaded Coupling Features and Application Shell Polarization – Alternate key/keyway positions prevent cross mating of adjacent connectors having same insert arrangement. MIL-DTL-83723 Series III family offers connectors with bayonet and threaded coupling including lanyard-release quick-disconnects. These connectors combine the best features of MIL-DTL-26500 and NAS 1599 miniature connector specifications. They are intermateable with both bayonet and threaded 26500 connectors (exception: shell size 8, threaded coupling only) and have the added advantage provided by the rear-release contact retention system. Closed-Entry Socket Insert – Hard dielectric socket face has lead-in chamfers for positive alignment of pins (even partially bent within pre-established limits) with sockets. Interfacial Pin Insert Seal – Raised moisture barriers around each pin, which mate into lead-in chamfers of hard face socket insert, provide individual contact sealing. Interfacial seal is never touched by service tools. AE833 connectors are widely used on commercial, military and aerospace systems requiring general-purpose, miniature cylindrical bayonet or threaded coupling connectors. In addition, Series III threaded connectors with self-locking plugs are well suited for engine applications. Elastomer Wire Sealing Grommet – Sealing over a wide range of wire diameters is assured by a triple wire seal in each cavity at the rear of the connector. This family of connectors (bayonet as well as threaded) is offered in wall mount receptacles as well as jam nut mounted receptacles which incorporate “O” ring seals, designed for rear panel “D” hole mounting. Superior Contact Stability – Rear release crimp contact system features a stamped beryllium-copper retaining clip captivated by molded-in shoulders of each contact cavity in the insulator. A rear-inserted M81969 plastic tool expands the tines beyond the shoulder, releasing the contact. Series III bayonet-coupling plugs are available in two designs - with and without RFI grounding. Threaded coupling plugs are offered with and without RFI grounding, self-locking and RFI/self-locking. In addition we offer quick-disconnect (lanyard release) plugs, which mate with threaded receptacles via an adapter. 83723 S III Thirty-one insert arrangements per MIL-STD-1554 are tooled and qualified to MIL-DTL-83723 Series III, utilizing 2 to 61 M39029 contacts. Contacts come in sizes 20, 16 and 12, terminating wire sizes from 24 to 12 gauge. These connectors are available in wide range of shell materials and finishes. Aluminum shells are offered in electroless nickel, olive drab cadmium and black anodic. Other finishes such as zinc cobalt are available upon request to commercial callouts only. In addition, we offer passivated stainless steel shells with both standard and firewall-rated inserts, and for highly corrosive environments, nickel-aluminum-bronze shells with standard environment-resisting inserts (commercial callouts only). Universal I/R Tool – A single, expendable plastic tool is used for both insertion and removal of contacts. www.conesys.com – 127 – sales@aero-electric.com MIL-DTL-83723 Series III Performance Specifications Bayonet and Threaded Coupling Performance Specifications Durability Mated connectors withstand a minimum of 500 mating cycles for bayonet coupling straight plug (M83723/75, 76); 250 mating cycles for bayonet coupling RFI plug (M83723/77, 78); and 250 cycles for all threaded coupling plugs (M83723/86, 87, 91, 92, 95, 96, 97, 98). Operating Temperature Range Classes A and R: -65°C to +200°C (-85°F to +392°F) Class W: -65°C to +175°C (-85°F to +347°F) Classes G and K: -65°C to +200°C (-85°F to +392°F) Classes N and S: -65°C to +200°C (-85°F to +392°F) Shock and Vibration Requirements Wired, mated connectors shall not be damaged, coupling ring shall not loosen, and there shall be no interruption of electrical continuity longer than one microsecond when subjected to the following: Material and Finish Data (Class) A – aluminum shell, black anodized finish G – stainless steel shell, passivated K – stainless steel shell, passivated, firewall R – aluminum shell, electroless nickel finish S – stainless steel shell, passivated, firewall, and 360° teeth W– aluminum shell, olive drab cadmium over nickel base N – stainless steel shell, electrodeposited nickel, firewall, and 360° teeth Shock Mated connectors withstand a pulse of approximate half sine wave of 300 G ± 15 percent magnitude with duration of 3 ± 1 milliseconds applied in three axes. Vibration Mated connectors withstand the following vibration levels: • Random vibration per MIL-STD-1344, method 2005, test condition VI, letter J. Corrosion Resistance Class W withstands 500-hour salt spray. Class R withstands 48-hour salt spray. Environmental Seal Wired, mated connectors with specified accessories attached, shall meet the altitude-immersion test specified by MIL-DTL-83723 Series III. Shielding Effectiveness RFI attenuation at the specified frequency meets the requirements of MIL-DTL-83723 Series III. • RFI shielding effectiveness of mated connectors with RFI backshells is measured in a triaxial radio frequency leakage fixture. Shell-to-Shell Conductivity (Except class A) • With RFI spring fingers, the maximum potential drop shall not exceed 5 millivolts. • Without spring fingers, the maximum potential drop shall not exceed 200 millivolts. Voltage Rating Service Rating Suggested Operating Voltage* Test Voltage Test Voltage Test Voltage Test Voltage (Sea Level) Sea Level 50,000 Ft. 70,000 Ft. 110,000 Ft. V RMS V RMS V RMS V RMS AC (RMS) DC I 600 850 1500 500 375 200 II 900 1250 2300 750 500 200 * To be used by designer only as a guide. www.conesys.com – 128 – sales@aero-electric.com 83723 S III Fluid Resistance Connectors resist specified immersions in MIL-PRF-7808 (lubricating oil), MIL-PRF-23699 (lubricating oil), MIL-PRF-5606 (hydraulic fluid), M2-V Chevron oil, Coolanol 25, MIL-DTL-83133 (turbine fuel JP-8), MIL-DTL-5624 (turbine fuels JP-4 and JP-5), SAE-AMS1424 Type I (defrosting fluid), and other solvents and cleaning agents. MIL-DTL-83723 Series III Part Number Development Bayonet Coupling Military and Aero-Electric Part Number Development Mil. Prefix Aero Prefix M83723/ AE833 71 71 R R 12 12 12 12 N N -340 Shell type 71 = Wall mount receptacle with socket contacts 72 = Wall mount receptacle with pin contacts 73 = Jam nut receptacle with socket contacts 74 = Jam nut receptacle with pin contacts 75 = Straight plug with socket contacts 76 = Straight plug with pin contacts 77 = RFI grounding plug with socket contacts 78 = RFI grounding plug with pin contacts Class (Material and Finish) A = Aluminum shell, black anodized finish (not available in 77 and 78 RFI plugs) G = Stainless stell shell, passivated R = Aluminum shell, electroless nickel finish W = Aluminum shell, olive drab cadmium over electroless nickel finish Shell Size (SS) 8, 10, 12, 14, 16, 18, 20, 22 or 24 Insert Arrangement See pages 148 and 149 Polarization (Keying) N = Normal 6, 7, 8, 9 or Y (Alternate keyed positions, Y is not availabe in SS 8) 1, 2, 3, 4 or 5 (Clocked insert polarizations within normally keyed shell, not approved for new design, n/a in SS 8) Modification (applies to Aero part numbers only) 01 = Less contacts (Part is bagged and tagged, but not marked with 01) 340 = Connector kitted with M85049/31-XXX E-nut 83723 S III 341 = Connector kitted with M85049/52-1-XXX straight clamp 342 = Connector kitted with M85049/51-1-XXX right angle clamp Consult factory for other modifications Note 1: Each connector is furnished with contacts unless ordered less contacts (L/C) as follows: One spare contact for inserts requiring 2 to 26 of each contact and two spares for inserts with 27 or more of each size, and a minimum of one sealing plug up to 15% of the number of contacts of each size. In addition, one insertion/removal tool of each size is included. www.conesys.com Note 2: Proper part number marking has no “0” in front of single digit shell size (8), but it does include the “0” in front of single digit layout. Examples: M83723/72W803N and M83723/77G10056. Please note that in this series “N” for normal is included in part number marking. – 129 – sales@aero-electric.com M83723/71, 72 Wall Mounting Receptacle AE83371, 72 Bayonet Coupling, Crimp Removable, Rear Release 1.300(33.02) MAX A .728(18.49) .708(17.98) B .072(1.83) .052(1.32) .290(7.37) MIN FULL THREAD 3x BAYONET PINS EQUALLY SPACED MASTER KEYWAY .190(4.83) GROMMET .130(3.30) EXTENSION 3 ACCESSORY TEETH EQUALLY SPACED D F MAX GROMMET E 4x MINOR KEYS 4x  C ACCESSORY THREAD BLUE COLOR BANDS MOUNTING HOLES Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization A ±.005 ±.13 inch mm ØC (TP) inch mm ØD E ±.005 ±.13 +.000 -.005 +.00 -.13 inch mm inch mm Accessory Thread Class 2A ØF Maximum inch mm 8 .812 20.62 .594 15.09 .120 3.05 .536 13.61 1/2-20UNF .305 7.75 10 .937 23.80 .719 18.26 .120 3.05 .659 16.74 5/8-24UNEF .405 10.29 12 1.031 26.19 .812 20.62 .120 3.05 .829 21.06 3/4-20UNEF .531 13.49 14 1.125 28.58 .906 23.01 .120 3.05 .898 22.81 7/8-20UNEF .665 16.89 16 1.250 31.75 .969 24.61 .120 3.05 1.025 26.04 1-20UNEF .790 20.07 18 1.343 34.11 1.062 26.97 .120 3.05 1.131 28.73 1-1/16-18UNEF .869 22.07 20 1.437 36.50 1.156 29.36 .120 3.05 1.256 31.90 1-3/16-18UNEF .994 25.25 22 1.562 39.67 1.250 31.75 .120 3.05 1.381 35.08 1-5/16-18UNEF 1.119 28.42 24 1.703 43.26 1.375 34.93 .149 3.78 1.506 38.25 1-7/16-18UNEF 1.244 31.60 www.conesys.com – 130 – sales@aero-electric.com 83723 S III Shell Size B M83723/73, 74 Jam Nut Receptacle AE83373, 74 Bayonet Coupling, Crimp Removable, Rear Release A MAX 1.300(33.02) MAX .190(4.83) GROMMET .130(3.30) EXTENSION E MOUNTING FLAT .781(19.84) .761(19.33) MASTER KEYWAY "O" RING 3 ACCESSORY TEETH EQUALLY SPACED C D MAX GROMMET F JAM NUT G ACCESSORY THREAD B THREAD MAX 4x MINOR KEYWAYS HEX NUT PER MS3186 BLUE COLOR BAND BLUE COLOR BAND PANEL THICKNESS: .125(3.18) .062(1.58) Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization 83723 S III Shell Size A ØB ØC Maximum Maximum Maximum inch mm inch mm inch ØD E +.000 -.005 +.00 -.13 ±.003 ±.08 mm inch mm inch mm F G Jam Nut Thread Class 2A Accessory Thread Class 2A 8 .979 24.87 1.068 27.13 .305 7.75 .536 13.61 .593 15.06 5/8-20UN 1/2-20UNF 10 1.104 28.04 1.192 30.28 .405 10.29 .659 16.74 .718 18.24 3/4-20UNEF 5/8-24UNEF 12 1.291 32.79 1.380 35.05 .531 13.49 .829 21.06 .905 22.99 15/16-20UNEF 3/4-20UNEF 14 1.391 35.33 1.505 38.23 .665 16.89 .898 22.81 .968 24.59 1-20UNEF 7/8-20UNEF 16 1.516 38.51 1.630 41.40 .790 20.07 1.025 26.04 1.093 27.76 1-1/8-20UN 1-20UNEF 18 1.641 41.68 1.756 44.60 .869 22.07 1.131 28.73 1.217 30.91 1-1/4-18UNEF 1-1/16-18UNEF 20 1.766 44.86 1.860 47.24 .994 25.25 1.256 31.90 1.342 34.09 1-3/8-18UNEF 1-3/16-18UNEF 22 1.954 49.63 2.086 52.98 1.119 28.42 1.381 35.08 1.467 37.26 1-1/2-18UNEF 1-5/16-18UNEF 24 2.079 52.81 2.160 54.86 1.244 31.60 1.506 38.25 1.592 40.44 1-5/8-18UNEF 1-7/16-18UNEF www.conesys.com – 131 – sales@aero-electric.com M83723/75, 76 Straight Plug AE83375, 76 Bayonet Coupling, Crimp Removable, Rear Release 1.230(31.24) MAX F 3x BAYONET HOLES EQUALLY SPACED MAX COUPLING NUT .290(7.37) MIN FULL THREAD .190(4.83) GROMMET .130(3.30) EXTENSION MASTER KEY 3 ACCESSORY TEETH EQUALLY SPACED E G MAX GROMMET 4 MINOR KEYS H ACCESSORY THREAD BLUE COLOR BAND Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization inch ØF ØG Maximum Maximum H +.005 -.004 +.13 -.10 mm inch mm inch mm Accessory Thread Class 2A 8 .305 7.75 .776 19.71 .419 10.64 1/2-20UNF 10 .405 10.29 .906 23.01 .521 13.23 5/8-24UNEF 12 .531 13.49 1.078 27.38 .691 17.55 3/4-20UNEF 14 .665 16.89 1.141 28.98 .760 19.30 7/8-20UNEF 16 .790 20.07 1.266 32.16 .887 22.53 1-20UNEF 18 .869 22.07 1.375 34.93 .993 25.22 1-1/16-18UNEF 20 .994 25.25 1.510 38.35 1.118 28.40 1-3/16-18UNEF 22 1.119 28.42 1.625 41.28 1.243 31.57 1-5/16-18UNEF 24 1.244 31.60 1.760 44.70 1.368 34.75 1-7/16-18UNEF www.conesys.com – 132 – sales@aero-electric.com 83723 S III Shell Size ØE M83723/77, 78 RFI Grounding Plug AE83377, 78 Bayonet Coupling, Crimp Removable, Rear Release 1.230(31.24) MAX F 3x BAYONET HOLES EQUALLY SPACED MAX COUPLING NUT MASTER KEY .290(7.37) MIN FULL THREAD .190(4.83) GROMMET .130(3.30) EXTENSION R.F.I SPRING 3 ACCESSORY TEETH EQUALLY SPACED E G MAX GROMMET 4 MINOR KEYS H ACCESSORY THREAD BLUE COLOR BAND Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization 83723 S III Shell Size inch ØE ØF Maximum Maximum mm inch ØG mm H +.005 -.004 +.13 -.10 inch mm Accessory Thread Class 2A 8 .305 7.75 .776 19.71 .419 10.64 1/2-20UNF 10 .405 10.29 .906 23.01 .521 13.23 5/8-24UNEF 12 .531 13.49 1.078 27.38 .691 17.55 3/4-20UNEF 14 .665 16.89 1.141 28.98 .760 19.30 7/8-20UNEF 16 .790 20.07 1.266 32.16 .887 22.53 1-20UNEF 18 .869 22.07 1.375 34.93 .993 25.22 1-1/16-18UNEF 20 .994 25.25 1.510 38.35 1.118 28.40 1-3/16-18UNEF 22 1.119 28.42 1.625 41.28 1.243 31.57 1-5/16-18UNEF 24 1.244 31.60 1.760 44.70 1.368 34.75 1-7/16-18UNEF www.conesys.com – 133 – sales@aero-electric.com MIL-DTL-83723 Series III Part Number Development Threaded Coupling Military and Aero-Electric Part Number Development Mil. Prefix Aero Prefix M83723/ AE833 95 95 R R 12 12 12 12 N N -340 Shell type 82 = Wall mount receptacle with socket contacts 83 = Wall mount receptacle with pin contacts 84 = Jam nut receptacle with socket contacts 85 = Jam nut receptacle with pin contacts 86 = Straight plug with socket contacts 87 = Straight plug with pin contacts 91 = RFI grounding plug with socket contacts 92 = RFI grounding plug with pin contacts 95 = Self-locking plug with socket contacts 96 = Self-locking plug with pin contacts 97 = Self-locking, RFI grounding plug with socket contacts 98 = Self-locking, RFI grounding plug with pin contacts 68 = Lanyard release, quick-disconnect plug, pin (not available in K & S classes) 69 = Lanyard release, quick-disconnect plug, socket (not available in K & S classes) Class (Material and Finish) A = Aluminum shell, black anodized finish (Not available in 91, 92, 97 & 98 RFI plugs) G = Stainless steel shell, passivated (n/a in 97 & 98) K = Stainless steel shell, passivated, with firewall rated insert (n/a in 91, 92, 97 & 98) R = Aluminum shell, electroless nickel finish (n/a in 97 & 98 to mil number) W = Aluminum shell, olive drab cadmium over nickel base (n/a in 97 & 98 to mil number) S = Stainless steel shell, passivated, full teeth, firewall insert (n/a in 86, 87, 91, 92, 95 & 96) Shell Size (SS) 8, 10, 12, 14, 16, 18, 20, 22 or 24 (and shell size 28 available in Aero p/n only) Insert Arrangement See pages 148 and 149 Polarization (Keying) N = Normal 6, 7, 8, 9 or Y (Alternate keyed positions, Y is not availabe in SS 8) 1, 2, 3, 4 or 5 (Clocked insert polarizations within normally keyed shell, not approved for new design, n/a in SS 8) Note 1: Each connector is furnished with contacts unless ordered less contacts (L/C) as follows: One spare contact for inserts requiring 2 to 26 of each contact and two spares for inserts with 27 or more of each size, and a minimum of one sealing plug up to 15% of the number of contacts of each size. In addition, one insertion/removal tool of each size is included. www.conesys.com 83723 S III Modification (applies to Aero part numbers only) 01 = Less contacts (Part is bagged and tagged, but not marked with 01) 340 = Connector kitted with M85049/31-XXX E-nut 341 = Connector kitted with M85049/52-1-XXX straight clamp 342 = Connector kitted with M85049/51-1-XXX right angle clamp Consult factory for other modifications Note 2: Proper part number marking has no “0” in front of single digit shell size (8), but it does include the “0” in front of single digit layout. Examples: M83723/95G803N and M83723/98S10056. Please note that in this series “N” for normal is included in part number marking. Note 3: Shell type M83723/70 (AE83370 Receptacle Adapter) is not listed above, – 134 – sales@aero-electric.com M83723/82, 83 Wall Mounting Receptacle AE83382, 83 Threaded Coupling, Crimp Removable, Rear Release 1.340(34.04) MAX CLASSES: “N” & “S” ONLY 1.248(31.70) MAX .072(1.83) .728(18.49) .052(1.32) .708(17.98) A B .290(7.37) MIN FULL THREAD MASTER KEYWAY .190(4.83) GROMMET .130(3.30) EXTENSION .290(7.37) MIN FULL THREAD .160(4.06) GROMMET .010(0.25) EXTENSION 3 ACCESORY TEETH EQUALLY SPACED F F MAX GROMMET H No. OF TEETH E ACCESSORY THREAD D MATING THREAD 4 MINOR KEYWAYS MAX GROMMET CLASSES: “N” & “S” ONLY E ACCESSORY THREAD BLUE COLOR BANDS 4x  C MOUNTING HOLES FULL MATE INDICATOR COLOR: RED PANEL THICKNESS: .125(3.18) MAX Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization A B 83723 S III ±.13 ØC +.005 -.004 (TP) +.13 -.10 D E Mating Thread Class 2A Accessory Thread Class 2A ØF H Maximum No. of Teeth Shell Size ±.005 inch mm inch mm inch mm inch mm 8 .812 20.62 .594 15.09 .120 3.05 9/16-24UNEF 1/2-20UNF .305 7.75 12 10 .937 23.80 .719 18.26 .120 3.05 11/16-24UNEF 5/8-24UNEF .405 10.29 15 12 1.031 26.19 .812 20.62 .120 3.05 7/8-20UNEF 3/4-20UNEF .531 13.49 21 14 1.125 28.58 .906 23.01 .120 3.05 15/16-20UNEF 7/8-20UNEF .665 16.89 24 16 1.250 31.75 .969 24.61 .120 3.05 1-1/16-18UNEF 1-20UNEF .790 20.07 30 18 1.343 34.11 1.062 26.97 .120 3.05 1-3/16-18UNEF 1-1/16-18UNEF .869 22.07 33 20 1.437 36.50 1.156 29.36 .120 3.05 1-5/16-18UNEF 1-3/16-18UNEF .994 25.25 36 22 1.562 39.67 1.250 31.75 .120 3.05 1-7/16-18UNEF 1-5/16-18UNEF 1.119 28.42 39 24 1.703 43.26 1.375 34.93 .149 3.78 1-9/16-18UNEF 1-7/16-18UNEF 1.244 31.60 42 28 2.000 50.80 1.562 39.67 .149 3.78 1-13/16-16UN 1-3/4-18UNS 1.475 37.47 54 www.conesys.com – 135 – sales@aero-electric.com M83723/84, 85 Jam Nut Receptacle AE83384, 85 Threaded Coupling, Crimp Removable, Rear Release 1.340(34.04) MAX CLASSES: “N” & “S” ONLY A 1.240(31.50) MAX G HEX NUT PER MS3186 MOUNTING FLAT MASTER KEYWAY "O" RING .290(7.37) MIN FULL THREAD FULL MATE INDICATOR COLOR: RED .290(7.37) MIN FULL THREAD .190(4.83) .130(3.30) GROMMET EXTENSION .160(4.06) GROMMET .010(0.25) EXTENSION CLASSES: “N” & “S” C MAX GROMMET C MAX GROMMET 3 ACCESSORY TEETH 120° APART F No. OF TEETH H ACCESSORY THREAD B CLASSES: “N” & “S” ONLY H ACCESSORY THREAD E JAM NUT BLUE COLOR BAND THREAD D 4 MINOR KEYWAYS MATING THREAD .781(19.84) .761(19.33) BLUE COLOR BAND PANEL THICKNESS: .125(3.18) .062(1.57) Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization A 8 +.016 -.015 +.41 -.38 +.016 -.015 +.41 -.38 ØC D E F Maximum Mating Thread Class 2A Jam Nut Thread Class 2A No. of Teeth inch mm Class 2A 5/8-20UN 12 .593 15.06 1/2-20UNF inch mm inch mm inch mm .964 24.49 1.062 26.97 .305 7.75 9/16-24UNEF G ±.003 H ±.08 Accessory Thread 10 1.088 27.64 1.176 29.87 .405 10.29 11/16-24UNEF 3/4-20UNEF 15 .718 18.24 5/8-24UNEF 12 1.275 32.39 1.364 34.65 .531 13.49 7/8-20UNEF 15/16-20UNEF 21 .905 22.99 3/4-20UNEF 14 1.375 34.93 1.545 39.24 .665 16.89 15/16-20UNEF 1-20UNEF 24 .968 24.59 7/8-20UNEF 16 1.500 38.10 1.625 41.28 .790 20.07 1-1/16-18UNEF 1-1/8-18UNEF 30 1.093 27.76 1-20UNEF 18 1.625 41.28 1.750 44.45 .869 22.07 1-3/16-18UNEF 1-1/4-18UNEF 33 1.217 30.91 1-1/16-18UNEF 20 1.750 44.45 1.938 49.23 .994 25.25 1-5/16-18UNEF 1-3/8-18UNEF 36 1.342 34.09 1-3/16-18UNEF 22 1.938 49.23 2.062 52.37 1.119 28.42 1-7/16-18UNEF 1-1/2-18UNEF 39 1.467 37.26 1-5/16-18UNEF 24 2.063 52.40 2.166 55.02 1.244 31.60 1-9/16-18UNEF 1-5/8-18UNEF 42 1.592 40.44 1-7/16-18UNEF 28 2.314 58.78 2.428 61.67 1.475 37.47 1-13/16-16UN 1-7/8-20UN 54 1.840 46.74 1-3/4-18UNS www.conesys.com – 136 – sales@aero-electric.com 83723 S III Shell Size ØB M83723/86, 87 Straight Plug AE83386, 87 Threaded Coupling, Crimp Removable, Rear Release 1.180(29.97) MAX 3x  .035(.89) SAFETY WIRE HOLES  B MAX COUPLING NUT MASTER KEY .290(7.37) MIN FULL THREAD .190(4.83) .130(3.30) GROMMET EXTENSION A C MAX GROMMET 3 ACCESSORY TEETH EQUALLY SPACED D MATING THREAD 4 MINOR KEYS BLUE COLOR BAND E ACCESSORY THREAD Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization ØA 83723 S III Shell Size +.005 -.004 Ø +.13 -.10 B Ø Maximum C Maximum D E Mating Thread Class 2B Accessory Thread Class 2A inch mm inch mm inch mm 8 .400 10.16 .776 19.71 .305 7.75 9/16-24UNEF 1/2-20UNF 10 .521 13.23 .906 23.01 .405 10.29 11/16-24UNEF 5/8-24UNEF 12 .691 17.55 1.078 27.38 .531 13.49 7/8-20UNEF 3/4-20UNEF 14 .760 19.30 1.141 28.98 .665 16.89 15/16-20UNEF 7/8-20UNEF 16 .887 22.53 1.266 32.16 .790 20.07 1-1/16-18UNEF 1-20UNEF 18 .993 25.22 1.375 34.93 .869 22.07 1-3/16-18UNEF 1-1/16-18UNEF 20 1.118 28.40 1.510 38.35 .994 25.25 1-5/16-18UNEF 1-3/16-18UNEF 22 1.243 31.57 1.625 41.28 1.119 28.42 1-7/16-18UNEF 1-5/16-18UNEF 24 1.368 34.75 1.760 44.70 1.244 31.60 1-9/16-18UNEF 1-7/16-18UNEF 28 1.618 41.10 2.050 52.07 1.475 37.47 1-13/16-16UN 1-3/4-18UNS www.conesys.com – 137 – sales@aero-electric.com M83723/91, 92 RFI Grounding Plug AE83391, 92 Threaded Coupling, Crimp Removable, Rear Release 1.180(29.97) MAX 3X  .035(.89) SAFETY WIRE HOLES  B MAX COUPLING NUT MASTER KEY .290(7.37) MIN FULL THREAD .190(4.83) .130(3.30) GROMMET EXTENSION RFI STRIP C A MAX GROMMET 3 ACCESSORY TEETH EQUALLY SPACED D MATING THREAD 4 MINOR KEYS BLUE COLOR BAND E ACCESSORY THREAD Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization ØA ØB +.13 -.10 Maximum ØC D E Maximum Mating Thread Class 2B Accessory Thread Class 2A inch mm inch mm inch mm 8 .400 10.16 .776 19.71 .305 7.75 9/16-24UNEF 1/2-20UNF 10 .521 13.23 .906 23.01 .405 10.29 11/16-24UNEF 5/8-24UNEF 12 .691 17.55 1.078 27.38 .531 13.49 7/8-20UNEF 3/4-20UNEF 14 .760 19.30 1.141 28.98 .665 16.89 15/16-20UNEF 7/8-20UNEF 16 .887 22.53 1.266 32.16 .790 20.07 1-1/16-18UNEF 1-20UNEF 18 .993 25.22 1.375 34.93 .869 22.07 1-3/16-18UNEF 1-1/16-18UNEF 20 1.118 28.40 1.510 38.35 .994 25.25 1-5/16-18UNEF 1-3/16-18UNEF 22 1.243 31.57 1.625 41.28 1.119 28.42 1-7/16-18UNEF 1-5/16-18UNEF 24 1.368 34.75 1.760 44.70 1.244 31.60 1-9/16-18UNEF 1-7/16-18UNEF 28 1.618 41.10 2.050 52.07 1.475 37.47 1-13/16-16UN 1-3/4-18UNS www.conesys.com – 138 – sales@aero-electric.com 83723 S III Shell Size +.005 -.004 M83723/95, 96 Self-Locking Plug AE83395, 96 Threaded Coupling, Crimp Removable, Rear Release 1.180(29.97) MAX  C MAX .290(7.37) MIN FULL THREAD COUPLING NUT MASTER KEY .190(4.83) .130(3.30) GROMMET EXTENSION B A MAX GROMMET 3 ACCESSORY TEETH EQUALLY SPACED D MATING THREAD E ACCESSORY THREAD 4 MINOR KEYS BLUE COLOR BAND Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization Ø 83723 S III Shell Size +.005 -.004 A Ø +.13 -.10 B Ø Maximum C Maximum D E Mating Thread Class 2B Accessory Thread Class 2A 1/2-20UNF inch mm inch mm inch mm 8 .400 10.16 .305 7.75 .832 21.13 9/16-24UNEF 10 .521 13.23 .405 10.29 .959 24.36 11/16-24UNEF 5/8-24UNEF 12 .691 17.55 .531 13.49 1.097 27.86 7/8-20UNEF 3/4-20UNEF 14 .760 19.30 .665 16.89 1.236 31.39 15/16-20UNEF 7/8-20UNEF 16 .887 22.53 .790 20.07 1.360 34.54 1-1/16-18UNEF 1-20UNEF 18 .993 25.22 .869 22.07 1.473 37.41 1-3/16-18UNEF 1-1/16-18UNEF 20 1.118 28.40 .994 25.25 1.586 40.28 1-5/16-18UNEF 1-3/16-18UNEF 22 1.243 31.57 1.119 28.42 1.703 43.26 1-7/16-18UNEF 1-5/16-18UNEF 24 1.368 34.75 1.244 31.60 1.846 46.89 1-9/16-18UNEF 1-7/16-18UNEF 28 1.618 41.10 1.475 37.47 2.278 57.86 1-13/16-16UN 1-3/4-18UNS www.conesys.com – 139 – sales@aero-electric.com M83723/97, 98 Self-Locking, RFI Grounding Plug AE83397, 98 Threaded Coupling, Crimp Removable, Rear Release 1.280(32.51) MAX [ D MAX .290(7.37) MIN FULL THREAD COUPLING NUT MASTER KEY .160(4.06) .010(0.25) GROMMET EXTENSION [C [A MAX GROMMET RFI STRIP B NUMBER OF TEETH E MATING THREAD 4 MINOR KEYS F ACCESSORY THREAD BLUE COLOR BAND Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization Ø A B +.13 -.10 No. of Teeth Ø C Ø Maximum D Maximum E F Mating Thread Class 2B Accessory Thread Class 2A inch mm inch mm inch mm 8 .400 10.16 12 .305 7.75 .967 24.56 9/16-24UNEF 1/2-20UNF 10 .521 13.23 15 .405 10.29 1.093 27.76 11/16-24UNEF 5/8-24UNEF 12 .691 17.55 21 .531 13.49 1.170 29.72 7/8-20UNEF 3/4-20UNEF 14 .760 19.30 24 .665 16.89 1.310 33.27 15/16-20UNEF 7/8-20UNEF 16 .887 22.53 30 .790 20.07 1.500 38.10 1-1/16-18UNEF 1-20UNEF 18 .993 25.22 33 .869 22.07 1.562 39.67 1-3/16-18UNEF 1-1/16-18UNEF 20 1.118 28.40 36 .994 25.25 1.710 43.43 1-5/16-18UNEF 1-3/16-18UNEF 22 1.243 31.57 39 1.119 28.42 1.812 46.02 1-7/16-18UNEF 1-5/16-18UNEF 24 1.368 34.75 42 1.244 31.60 1.948 49.48 1-9/16-18UNEF 1-7/16-18UNEF 28 1.618 41.10 54 1.475 37. 47 2.278 57.86 1-13/16-16UN 1-3/4-18UNS www.conesys.com – 140 – sales@aero-electric.com 83723 S III Shell Size +.005 -.004 M83723/68, 69 Lanyard Release, Quick-Disconnect Plug AE83368, 69 Quick-Disconnect, Threaded Coupling, Crimp Removable, Rear Release A 7.500(190.50) MAX MAX C ACCESSORY THREAD BLUE COLOR BAND MASTER KEY B D MAX GROMMET 4 MINOR KEYS LENGTH TO BE MEASURED WITH A  .750(19.05)±.060(1.52) BAR TO PULL LANYARD TAUT 3 ACCESSORY TEETH EQUALLY SPACED 1.180(29.97) MAX .190(4.83) .130(3.30) GROMMET EXTENSION Note 1: M83723/70 receptacle adapter (page 142) is required to mate the Quick-Disconnect Plug with a receptacle. Page 129 Completed Part Number Page 145 Contacts, Sealing Plugs and Tools Pages 148,149 Insert Arrangements Page 128 Performance Specifications Page 147 Insert Availability and Contact Information Page 143 Polarization 83723 S III Ø A Ø Maximum Note 2: Not available in shell size 8. B C Ø D Accessory Thread Class 2A Maximum Shell Size inch mm inch mm inch mm 10 1.240 31.50 .405 10.29 5/8-24UNEF .526/.517 13.36/13.13 12 1.432 36.37 .531 13.49 3/4-20UNEF .696/.687 17.68/17.45 14 1.490 37.85 .665 16.89 7/8-20UNEF .765/.756 19.43/19.20 16 1.711 43.46 .790 20.07 1-20UNEF .892/.883 22.66/22.43 18 1.815 46.10 .869 22.07 1-1/16-18UNEF .998/.989 25.35/25.12 20 1.962 49.83 .994 25.25 1-3/16-18UNEF 1.123/1.114 28.52/28.30 22 2.070 52.58 1.119 28.42 1-5/16-18UNEF 1.248/1.239 31.70/31.47 24 2.195 55.75 1.244 31.60 1-7/16-18UNEF 1.373/1.364 34.87/34.65 www.conesys.com – 141 – sales@aero-electric.com M83723/70 Receptacle Adapter, Quick-Disconnect AE83370 Quick-Disconnect (Push-Pull) Receptacle Adapter  .442(11.23) ±.005(.13) C D THREAD  A  B  E COLOR BAND Mil Prefix Aero Prefix M83723/ AE833 70 70 W W 10 10 Specification Sheet (Shell type) 70 = Receptacle adapter, quick-disconnect Class (Material and Finish) A = Aluminum shell, black anodized finsih Note: The adapter is required to mate the Lanyard Release and Push-Pull Quick-Disconnect plugs (M83723/66 thru 69) with M83723/82, 83, 84, 85, 88, 89 and 90 threaded coupling receptacles. Use compatible thread seizing compound to permanently secure to the receptacle. G = Stainless steel shell, passivated R = Aluminum shell, elctroless nickel finish W = Aluminum shell, cadmium olive drab over nickel base Shell Size 8, 10, 12, 14, 16, 18, 20, 22 or 24 D Coupling Thread Class 2B A Ø B Ø C Ø E ±.002 ±.05 ±.002 ±.05 ±.002 ±.05 ±.005 ±.13 inch mm inch mm inch mm inch mm 8 9/16-24UNEF .605 15.37 .577 14.66 .687 17.45 .525 13.34 10 11/16-24UNEF .730 18.54 .712 18.08 .812 20.62 .650 16.51 12 7/8-20UNEF .917 23.29 .892 22.66 .999 25.37 .840 21.34 14 15/16-20UNEF .980 24.89 .952 24.18 1.062 26.97 .900 22.86 16 1-1/16-18UNEF 1.105 28.07 1.077 27.36 1.187 30.15 1.025 26.04 18 1-3/16-18UNEF 1.230 31.24 1.202 30.53 1.328 33.73 1.150 29.21 20 1-5/16-18UNEF 1.355 34.42 1.327 33.71 1.453 36.91 1.275 32.39 22 1-7/16-18UNEF 1.480 37.59 1.452 36.88 1.578 40.08 1.400 35.56 24 1-9/16-18UNEF 1.605 40.77 1.577 40.06 1.703 43.26 1.525 38.74 www.conesys.com – 142 – sales@aero-electric.com 83723 S III Shell Size Ø MIL-DTL-83723 Series III Polarization (Shell Keying, Insert Clocking) Bayonet and Threaded Shell Keying D° B°                    Insert Clocking E° MASTER KEYWAY(KEY) OF SHELL MASTER KEYWAY A° ENGAGING FACE VIEW FOR RECEPTACLE SHELL KEYWAYS (PLUG SHELL KEYS, OPPOSITE) C° INSERT VERTICAL CENTERLINE SOCKET INSERT MATING FACE (PIN INSERT IS OPPOSITE) Notes: 1. In the normal position (N), the insert centerline coincides with the centerline of the master keyway (key) of the shell. E = 0°. 2. In the alternate keying positions (6, 7, 8, 9 and Y), the minor keyways (keys) are positioned with reference to master keyway (key) as indicated in the keying position table below. Polarizing Shell Size 8*, 10 10 only 83723 S III 12 thru 24, 28** 10 thru 24 Position N 6 7 8 9 Y N 6 7 8 9 Y 1† 2† 3† 4† 5† 3. In the alternate insert clocking positions (1, 2, 3, 4 and 5), the socket insert (viewing from the mating side) is rotated counter-clockwise relative to the centerline of the master keyway (key) of the shell. The pin insert is rotated clockwise. Key/Keyway Positions A° 105 102 80 35 64 25 105 18 92 84 24 98 105 105 105 105 105 B° 140 132 118 140 155 115 140 149 152 152 135 152 140 140 140 140 140 * Per MIL-STD-1554, keyed position Y and clocked positions 1, 2, 3, 4 and 5 are not available in shell size 8. D° 265 320 312 275 304 270 265 259 342 334 240 338 265 265 265 265 265 E° 0 0 0 0 0 0 0 0 0 0 0 0 10 20 30 40 50 † Per MIL-STD-1554, insert positions 1 thru 5 are inactive for new design. Note: Alternate positions “Z” and “10” are cancelled and superseded by Position “Y”. ** Shell size 28 is not from military standard. It is only availabe in threaded family to Aero-Electric part number. www.conesys.com C° 215 248 230 205 234 220 215 192 222 204 199 268 215 215 215 215 215 Insert Position – 143 – sales@aero-electric.com MIL-DTL-83723 Series III, Bayonet and Threaded Flange and Jam Nut Receptacles Panel Cutouts Panel Cutouts S  LL J Z L Panel Thickness Receptacle Type Rear Mounting Wall Mount Receptacle, Bayonet Front Mounting inch mm inch mm .250 max* 6.36 max* .125 max 3.18 max Wall Mount Receptacle, Threaded .125 max 3.18 max .125 max 3.18 max Jam Nut Mount (Bayonet & Threaded) .062/.125 1.57/3.18 — — * Includes screw-head Flange and Jam Nut Mounting Dimensions L Ø J Ø Ø inch mm inch mm inch S Ø Z +.000 -.009 +.00 -.23 ±.005 ±.13 ±.005 ±.13 mm inch mm inch mm inch mm For Front Mounting Minimum Shell Size LL 8 .594 15.09 .620 15.75 .510 12.95 .125 3.18 .605 15.37 .635 16.13 10 .719 18.26 .748 19.00 .635 16.13 .125 3.18 .730 18.54 .760 19.30 12 .812 20.62 .918 23.32 .760 19.30 .125 3.18 .917 23.29 .947 24.05 14 .906 23.01 .988 25.10 .885 22.48 .125 3.18 .980 24.89 1.010 25.65 16 .969 24.61 1.114 28.30 1.010 25.65 .125 3.18 1.105 28.07 1.135 28.83 18 1.062 26.97 1.220 30.99 1.072 27.23 .125 3.18 1.229 31.22 1.260 32.00 20 1.156 29.36 1.346 34.19 1.197 30.40 .125 3.18 1.354 34.39 1.385 35.18 22 1.250 31.75 1.470 37.34 1.322 33.58 .125 3.18 1.479 37.57 1.510 38.35 24 1.375 34.93 1.596 40.54 1.442 36.63 .154 3.91 1.604 40.74 1.635 41.53 www.conesys.com – 144 – sales@aero-electric.com 83723 S III For Back Mounting Minimum (TP) J MIL-DTL-83723 Contacts, Tools and Seal Plugs Series III Contacts, Plastic Insertion/Removal Tools and Seal Plugs Application Pin Contacts Socket Contacts Seal Plugs Insertion/Removal Tools Plastic Contact Size Type Military No. Military No. Military No. Military No. 20 Power/Signal M39029/4-110 M39029/5-115 MS27488-20-1 M81969/14-11 16 Power/Signal M39029/4-111 M39029/5-116 MS27488-16-1 M81969/14-03 12 Power/Signal M39029/4-113 M39029/5-118 MS27488-12-1 M81969/14-04 Positioner Positioner Insertion Tool Extraction Tool For Pin Contacts For Socket Contacts Metal Metal Military No. Military No. Military No. Military No. M81969/8-205 M81969/8-206 Crimping and Metal Insertion/Extraction Tools Crimp Tool Contact Size Military No. M22520/1-01 M22520/1-02 M22520/1-02 M22520/2-01 M22520/2-02 M22520/2-02 16 M22520/1-01 M22520/1-02 M22520/1-02 M81969/8-207 M81969/8-208 12 M22520/1-01 M22520/1-02 M22520/1-02 M81969/8-209 M81969/8-210 20 Contact and Wire Data 83723 S III Test Current Voltage DC Test Max. Drop Well Dia. Amps Millivolts inch inch mm AWG mm2 inch mm inch mm 20 7.5 55 .049 ±.001 .155 3.94 24-20 .20-.52 .040 1.02 .083 2.11 16 13.0 49 .067 ±.001 .250 6.35 20-16 .52-1.31 .053 1.35 .103 2.62 12 23.0 42 .100 ±.002 .250 6.35 14-12 2.08-3.31 .097 2.46 .158 4.01 Contact Size Crimp Well Data Wire Range Minimum Well Dept Finished Wire Ø Range Minimum Maximum Note: Test Current and Maximum Voltage Drop when tested with silver-plated wire at 25°C. www.conesys.com – 145 – sales@aero-electric.com MIL-DTL-83723 Series III Contact Installation Instructions Bayonet and Threaded Coupling Contact Installation Instructions 3. Place the correct insertion tool on the contact so that the wire runs along the groove in the tool. (Tool tip will butt against the shoulder.) Hold the plug or receptacle body firmly. Crimping Contacts 1. Select the appropriate crimp tool and ensure that the proper crimp head positioner is used. 4. Beginning with a center cavity, insert the contact into the insulator with a slow, even pressure until the contact snaps into position. Make sure the contact and tool are held perpendicular to the face of the insert during the contact installation or the grommet could be damaged. 2. Cycle the tool to be sure the indentors are open. 3. Determine the correct selector setting for the wire size from the data plate on the positioner (turret head assembly) and set the selector knob on the crimp tool to match. 4.1 If contacts are not inserted all the way prior to removing insertion tool, do not try to reinsert the insertion tool. Instead, remove the contact and try again; otherwise reinserting the insertion tool may damage the inside of the contact cavity. 4. Place the contact, mating end first, into the tool. 5. Remove tool and check the face of the connector for proper contact installation. Proper installation may also be checked by pulling back lightly on the wire to make sure the contact is properly seated. 5. Insert the stripped wire into the hollow end of the contact. Be sure the wire is inserted as far as it will go. 6. Close the tool completely to crimp. Unless the tool is closed completely, the tool will not release the contact. Completion After all the cavities have been filled, slide the hardware back into position on the connector and tighten. 7. Remove the crimped contact from the tool. Check the inspection hole to verify that the wire is fully inserted. Insertion of Contacts 1. Before inserting the contacts, unscrew the accessories (clamps, backshells or adapters) from rear of plug or receptacle. Slide the hardware over the wire bundle in the proper order for reassembly after all the contacts are inserted. Extraction of Contacts (Rework) 1. Slide the hardware back over the wire bundle. 2. Select the appropriate tool. Place the wire into the extraction tool of the pin or socket. Size Pin Contact Socket Contact 20 M39029/4-110 M39029/5-115 16 M39029/4-111 12 M39029/4-113 www.conesys.com Basic Crimp Tool Pin Positioner Socket Positioner M22520/1-01 M22520/1-02 Red M22520/1-02 Red M22520/2-01 M22520/2-02 M22520/2-02 M39029/5-116 M22520/1-01 M22520/1-02 Blue M22520/1-02 Blue M39029/5-118 M22520/1-01 M22520/1-02 Yellow M22520/1-02 Yellow – 146 – Insertion/Removal Tool M81969/14-11 M81969/14-03 M81969/14-04 sales@aero-electric.com 83723 S III 3. Slowly slide the extraction tool down wire into the contact cavities until the tool tip bottoms against the contact shoulder, expanding the clip retaining tines. Hold the wire firmly in the tool and pull the wired contact and tool straight out of the rear of the insulator. 2. To assist insertion of contacts, lubricate insulator (grommet) cavities with isopropyl alcohol. Alcohol will evaporate and will not leave a conductive film. Caution: Never use any lubricant other than isopropyl alcohol. MIL-DTL-83723 Series III Insert Availability and Contact Information per MIL-STD-1554 Insert Availability and Contact Information Aero-Electric Total Quantity of Contacts Status No. of (by Size) Service Alternate Positions** (Insert Rotation in Degrees) Insert Arrangement QPL’d Tooled Contacts 20 Rating 1 2 3 4 5 8-2∆ Yes Yes 2 2 I N/A N/A N/A N/A N/A 8-3 Yes Yes 3 3 I N/A N/A N/A N/A N/A 16 12 # 8 coax 8-98 Yes Yes 3 3 I N/A N/A N/A N/A N/A 10-2 Yes Yes 2 2 I 10 20 30 40 50 10-5 Yes Yes 5 5 I 10 20 30 40 50 10-6 Yes Yes 6 6 I 10 20 30 40 50 10-20 Yes Yes 2 I 10 20 30 40 50 12-3 Yes Yes 3 12-12 Yes Yes 12 2 3 12 14-4 Yes Yes 4 14-7 Yes Yes 7 14-12 Yes Yes 12 9 15 14-15 Yes Yes 15 16-10 Yes Yes 10 16-24 Yes Yes 24 18-8 Yes Yes 8 18-14 Yes Yes 14 18-31 Yes Yes 31 20-16 Yes Yes 16 4 I 10 20 30 40 50 I 10 20 30 40 50 I 10 20 30 40 50 7 I 10 20 30 40 50 3 I 10 20 30 40 50 I 10 20 30 40 50 10 I 10 20 30 40 50 24 I 10 20 30 40 50 I 10 20 30 40 50 14 I 10 20 30 40 50 I 10 20 30 40 50 16 I 10 20 30 40 50 8 31 20-25 Yes Yes 25 19 6 I 10 20 30 40 50 20-28 Yes Yes 28 24 4 I 10 20 30 40 50 20-39 Yes Yes 39 37 I 10 20 30 40 50 41 20-41 Yes Yes 41 22-12 Yes Yes 12 83723 S III 22-19 Yes Yes 19 22-32 Yes Yes 32 26 22-55 Yes Yes 55 55 24-19 Yes Yes 19 24-29* N/A Yes 29 Yes 30 Yes Yes 43 23 24-57 Yes Yes 57 55 61 Yes Yes 61 Yes 42 20 30 40 50 10 20 30 40 50 I 10 20 30 40 50 6 I 10 20 30 40 50 I 10 20 30 40 50 19 N/A N/A 10 I 29 24-30* 24-61 I 12 19 24-43 28-42* 2 10 20 30 40 50 10 20 30 40 50 30 I 10 20 30 40 50 20 I 10 20 30 40 50 I 10 20 30 40 50 I 10 20 30 40 50 I 10 20 30 40 50 2 42 * Non MIL-STD-1554 layout, available to Aero-Electric part number only. ∆ Consult factory for pin insert availablility. www.conesys.com I I ** Alternate clocking positions (1, 2, 3, 4, and 5) are for interchangeability use only. Inactive for new design per MIL-STD-1554. – 147 – sales@aero-electric.com MIL-STD-1554 Insert Arrangements (Socket Front View) for MIL-DTL-83723 Series III Connectors Insert Arrangement Views 1 2 3 2 803 3 # 20 I 802* 2 # 20 I 1 4 3 1002 2 # 20 I 1005 5 # 20 I 4 1 5 2 1 2 898 3 # 20 I 1006 6 # 20 I 7 1 2 1 6 5 1 3 1 1 1 1 1 12 12 2 1020 2 # 16 I 3 1203 3 # 16 I 1212 12 # 20 I 1404 4 # 12 I 1407 7 # 16 I 1412 9 # 20, 3 # 16 I 8 10 15 1 1 1 1 24 1415 15 # 20 I 1610 10 # 16 I 1624 24 # 20 I 1808 8 # 12 I 16 14 31 25 1 1 1 1831 31 # 20 I 2016 16 # 16 I 2025 19 # 20, 6 # 12 I 41 12 28 39 1 1 2028 24 # 20, 4 # 12 I 1 1 2039 37 # 20, 2 # 16 I 2041 41 # 20 I 2212 12 # 12 I * Consult factory for pin insert availability. www.conesys.com – 148 – sales@aero-electric.com 83723 S III 1814 14 # 16 I 1 MIL-STD-1554 Insert Arrangements (Socket Front View) for MIL-DTL-83723 Series III Connectors Insert Arrangement Views 19 32 55 1 1 1 2219 19 # 16 I 2255 55 # 20 I 2232 26 # 20, 6 # 12 I 19 1 1 1 30 29 2419 19 # 12 I 2429 29 # 16 I 2430 30 # 16 I 43 61 42 57 1 83723 S III 2443 23 # 20, 20 # 16 I 1 1 2461 61 # 20 I 2457 55 # 20, 2 # 12 I 1 2842 42 # 16 I ∆ Non MIL-STD-1554 layout, available to Aero-Electric part number only. www.conesys.com – 149 – sales@aero-electric.com
