IPM12-A8M-SCFT

IPM12-A8M-SCFT

  • 厂商:

    PEI-GENESIS(倍捷)

  • 封装:

    -

  • 描述:

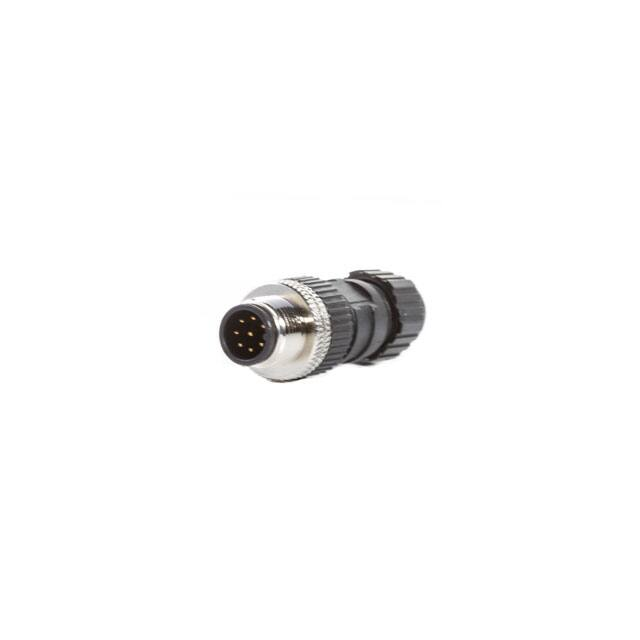

    CONN RCPT MALE 8P GOLD SLDR CUP

  • 详情介绍
  • 数据手册
  • 价格&库存
IPM12-A8M-SCFT 数据手册
7 6 ® IP G O L L A A T E A S C E S R E SU SERI 2 1 M www.peigenesis.com I www.peigenesis.cn sales@peigenesis.com Table of Contents Technical Information......................................................................... 4 How to Order M12 Series With Molded Cable...................................................................... 5 M12 Series Field Wireable Assemblies.......................................................... 5 M12 Series Panel Mount................................................................................ 6 M12 Series Cable Assemblies........................................................................ 6 M12 Series X Coded...................................................................................... 7 M12 Panel Mount (continued) M12 Male Panel Mount, Flying Leads, Front Fastened................................ 40 M12 Female Panel Mount, Flying Leads, Front Fastened............................ 41 M12 Male Panel Mount, PCB Type, Front Fastened.................................... 42 M12 Female Panel Mount, PCB Type, Front Fastened................................ 43 M12 Male Panel Mount, PCB Type, Front Fastened, Shielded.................... 44 M12 Female Panel Mount, PCB Type, Front Fastened, Shielded................ 45 M12 Male Panel Mount, Angled, PCB Type, M12 Molded Cable Front Fastened (shielded/non)...................................................................... 46 M12 Male Molded Cable, Straight................................................................. 8 M12 Female Panel Mount, Angled, PCB Type, M12 Female Molded Cable, Straight............................................................. 9 Front Fastened (shielded/non)...................................................................... 47 M12 Male Molded Cable, Straight, Shielded............................................... 10 M12 Male Panel Mount, PCB Type, Front Fastened, M12 Female Molded Cable, Straight, Shielded........................................... 11 X-coding, Shielded....................................................................................... 48 M12 Male Molded Cable, Straight, Snap-in Type........................................ 12 M12 Female Panel Mount, PCB Type, Front Fastened, M12 Female Molded Cable, Straight, Snap-in Type.................................... 13 X-coding, Shielded....................................................................................... 49 M12 Male Molded Cable, Angled................................................................. 14 M12 Female Molded Cable, Angled............................................................. 15 M12 Male Molded Cable, Angled Shielded.................................................. 16 M12 Female Molded Cable, Angled, Shielded............................................. 17 M12 Y-Splitter M12 Y-Splitter, Male-2*Female..................................................................... 50 M12 Y-Splitter, Female-Male-Female........................................................... 51 M12 Male Molded Cable, Straight, X-coding, Shielded .............................. 18 M12 Protection Cap M12 Female Molded Cable, Straight, X-coding, Shielded .......................... 19 M12 Protection Cap for Male Connector..................................................... 52 M12 Male Molded Cable, Angled, X-coding, Shielded................................ 20 M12 Protection Cap for Female Connector................................................. 52 M12 Female Molded Cable, Angled, X-coding, Shielded............................ 21 M12 Protection Cap for Male Molded Cable Connector.............................. 53 M12 Cable Assembly M12 Straight Female to M12 Straight Male Cable Assembly...................... 22 M12 Protection Cap for Female Molded Cable Connector.......................... 53 M12 Protection Cap for Male Panel-mount Connector............................... 54 M12 Protection Cap for Female Panel-mount Connector............................ 54 M12 Straight Female to M12 Right Angle Male Cable Assembly................ 23 M12 Right Angle Female to M12 Straight Male Cable Assembly................ 24 M12 Right Angle Female to M12 Right Angle Male Cable Assembly.......... 25 M12 Field Wireable Assembly with Solder Cup Instructions................................................................... 55 M12 Field Wireable Male Assembly Instructions......................................... 55 M12 Field Wireable Assembly M12 Male Field Wireable Assembly, Straight, Solder.................................. 26 M12 Female Field Wireable Assembly, Straight, Solder.............................. 27 M12 Male Field Wireable Assembly, Straight, Screw joint, Shielded........... 28 M12 Female Field Wireable Assembly, Straight, Screw joint, Shielded....... 29 M12 Male Field Wireable Assembly, Angled, Solder.................................... 30 M12 Female Field Wireable Assembly, Angled, Solder................................ 31 M12 Male Field Wireable Assembly, Straight, Screw joint........................... 32 M12 Female Field Wireable Assembly, Straight, Screw joint....................... 33 M12 Male Field Wireable Assembly, Angled, Screw joint............................ 34 M12 Female Field Wireable Assembly, Angled, Screw joint........................ 35 M12 Panel Mount M12 Male Panel Mount, Solder, Front Fastened.......................................... 36 M12 Female Panel Mount, Solder, Front Fastened...................................... 37 M12 Male Panel Mount, Solder, Rear Fastened........................................... 38 M12 Field Wireable Female Assembly Instructions..................................... 56 M12 Field Wireable Assembly with Screw Joint Instruction.................................................................... 57 M12 Field Wireable Assembly with Screw Joint Instruction, Shield.................................................... 58 M12 PCB Layout & Panel Cut-out PCB Layout M12 Male Connector.................................................................................... 59 M12 Female Connector................................................................................ 59 M12 C-Coding Connector............................................................................ 59 M12 Right Angled Connector....................................................................... 60 Panel Cut-out Dimensions H-cutting...................................................................................................... 60 D-cutting....................................................................................................... 60 M12 Female Panel Mount, Solder, Rear Fastened....................................... 39 M12 Part Numbers............................................................................. 61 www.peigenesis.com Technical Information Technical Information Wire Gauge Conversion Chart Conversion between American Wire Gauge (AWG), Circular Mil Area (CMA), and approximate metric millimeter squared (mm2) wire sizes. Diameter Area Diameter AWG in. mm CMA mm2* AWG in. mm CMA mm2* 4/0 (0000) 0.46 11.68 212000 120 14 0.062 1.57 4110 2.5 3/0 (000) 0.41 10.41 168000 95 15 0.057 1.45 3260 - 2/0 (00) 0.365 9.27 133000 70 16 0.051 1.30 2580 1.5 1/0 (0) 0.325 8.26 106000 50 17 0.045 1.14 2050 1 1 0.289 7.34 83700 - 18 0.040 1.02 1620 0.75 2 0.258 6.55 66400 35 19 0.036 0.91 1290 - 3 0.229 5.82 52600 - 20 0.032 0.81 1020 0.5 4 0.204 5.18 41700 25 21 0.0285 0.72 810 - 5 0.182 4.62 33100 - 22 0.0253 0.643 642 0.34 6 0.162 4.11 26300 16 23 0.0226 0.574 509 - 7 0.144 3.66 20800 - 24 0.0201 0.511 404 0.25 8 0.128 3.25 16500 10 25 0.0179 0.45 320 - 9 0.114 2.90 13100 - 26 0.0159 0.404 254 0.14 10 0.102 2.59 10400 6 27 0.0142 0.361 202 - 11 0.091 2.31 8230 - 28 0.0126 0.320 160 0.08 12 0.081 2.06 6530 4 29 0.0113 0.29 127 - 13 0.072 1.83 5180 - 30 0.01 0.254 101 0.05 *Nearest metric wire size Use to Convert American Wire Gauge to Diameter and Circular Mil Area. 4 Area www.peigenesis.com How to Order M12 Series With Molded Cable IPM12 2 - A3 CODING & # CONTACTS SERIES 3 4 5 F WL GENDER ANGLE LOCKING SYSTEM SERIES IPM12 = M12 LOCKING SYSTEM (blank) = Screw-in I = Snap-in* CODING & # CONTACTS A3 = 3 Contacts, A Coding B3 = 3 Contacts, B Coding C3 = 3 Contacts, C Coding A4 = 4 Contacts, A Coding B4 = 4 Contacts, B Coding C4 = 4 Contacts, C Coding D4 = 4 Contacts, D Coding A5 = 5 Contacts, A Coding B5 = 5 Contacts, B Coding C5 = 5 Contacts, C Coding C6 = 6 Contacts, C Coding A8 = 8 Contacts, A Coding A12 = 12 Contacts, A Coding A17 = 17 Contacts, A Coding - 6 7 1.5 U ASSEMBLY LENGTH CABLE SHEATH & SHIELDING How to Order 1 CABLE SHEATH & SHIELDING (blank) = PVC, Unshielded U = PUR, Unshielded US = PUR, Shielded S = PVC, Shielded GENDER F = Female M = Male *Only available with 3, 4, 5 or 8 contacts with Unshielded Cable ANGLE WL = Straight RA-WL = Right Angle **Additional lengths are available ASSEMBLY LENGTH** 1.5 = 1.5 meters 2.0 = 2 meters 3.0 = 3 meters 5.0 = 5 meters 10 = 10 meters M12 Series Field Wireable Assemblies 1 IPM12 SERIES - 2 3 4 A3 M -SCFT CODING & # CONTACTS GENDER TYPE SERIES IPM12 = M12 CODING & # CONTACTS A3 = 3 Contacts, A Coding B3 = 3 Contacts, B Coding C3 = 3 Contacts, C Coding A4 = 4 Contacts, A Coding B4 = 4 Contacts, B Coding C4 = 4 Contacts, C Coding D4 = 4 Contacts, D Coding A5 = 5 Contacts, A Coding B5 = 5 Contacts, B Coding C5 = 5 Contacts, C Coding C6 = 6 Contacts, C Coding A8 = 8 Contacts, A Coding A12 = 12 Contacts, A Coding 5 - 3 CABLE GLAND GENDER F = Female M = Male TYPE -SRFT = Screw Terminal Contacts -SRFT-S = Screw Terminal Contacts, Shielded -SCFT = Solder Contacts, Unshielded RA - SRFT = Right Angled Screw Terminal RA - SCFT = Right Angled Screw Solder Contacts CABLE GLAND SIZE (If applicable) See Pages 26-35 for reference 3 = PG9 (6-8 mm) 4 = PG7 (4-6 mm) A = 4-6 MM B = 6-8 MM 5 www.peigenesis.com How to Order How to Order M12 Series Panel Mount 1 IPM12 2 3 4 A3 M -RF CODING & # CONTACTS GENDER FASTENING - SERIES SERIES IPM12 = M12 - 5 6 SC -3 TYPE THREAD SIZE GENDER F = Female M = Male CODING & # CONTACTS A3 = 3 Contacts, A Coding B3 = 3 Contacts, B Coding C3 = 3 Contacts, C Coding A4 = 4 Contacts, A Coding B4 = 4 Contacts, B Coding C4 = 4 Contacts, C Coding D4 = 4 Contacts, D Coding A5 = 5 Contacts, A Coding B5 = 5 Contacts, B Coding C5 = 5 Contacts, C Coding C6 = 6 Contacts, C Coding A8 = 8 Contacts, A Coding A12 = 12 Contacts, A Coding A17 = 17 Contacts, A Coding X8 = 8 Contacts, X Coding* THREAD SIZE (If applicable) See Pages 36-49 for reference -3 PG9 FASTENING (blank) = Front Fastened -RF = Rear Fastened** TYPE FL = Flying Leads (500mm) PC = Straight PC Tails PC-S = Straight PC Tails, Shielded PCRA = Right Angle PC Tails PCRA-S = Right Angle PC Tails, Shielded SC = Solder Cup *X-Coded Panel Mounts are only available in PC-S **Only available on solder type panel mounts M12 Series Cable Assemblies 1 IPM12 2 - SERIES A3 CODING & # CONTACTS SERIES IPM12 = M12 to M12 6 CODING & # CONTACTS A3 = 3 Contacts, A Coding B3 = 3 Contacts, B Coding C3 = 3 Contacts, C Coding A4 = 4 Contacts, A Coding B4 = 4 Contacts, B Coding C4 = 4 Contacts, C Coding D4 = 4 Contacts, D Coding A5 = 5 Contacts, A Coding B5 = 5 Contacts, B Coding C5 = 5 Contacts, C Coding C6 = 6 Contacts, C Coding A8 = 8 Contacts, A Coding A12 = 12 Contacts, A Coding A17 = 17 Contacts, A Coding 3 - FM - CONNECTOR GENDERS AND ANGLES 4 5 0.5 U ASSEMBLY LENGTH CABLE SHEATH CONNECTOR GENDERS AND ANGLES FM = Straight Female to Straight Male FMRA = Straight Female to Male Right Angle FRAM = Female Right Angle to Straight Male FRAMRA = Female Right Angle to Male Right Angle MFRA = Straight Male to Female Right Angle CABLE SHEATH (blank) = PVC U = PUR S = PVC, Shielded US = PUR, Shielded ASSEMBLY LENGTH* 1.5 = 1.5 meters 2.0 = 2 meters 3.0 = 3 meters 5.0 = 5 meters 10 = 10 meters *Additional lengths are available www.peigenesis.com How to Order M12 Series X Coded Single Ended Cable Assembly IPM12 2 - X8 - CODING & # CONTACTS SERIES SERIES IPM12 = M12 3 4 F WL GENDER ANGLE 5 - How to Order 1 6 6A - CABLE TYPE 2.0 ASSEMBLY LENGTH CABLE TYPE 6A = Cat 6A 7 = Cat 7 6AP = Cat 6A terminated to RJ45 plug 7P = Cat 7 terminated to RJ45 plug CODING & # CONTACTS X = 8 Contacts, X Coded GENDER F = Female M = Male ASSEMBLY LENGTH* 1.5 = 1.5 meters 2.0 = 2 meters 3.0 = 3 meters 5.0 = 5 meters 10 = 10 meters ANGLE WL = Straight RA-WL = Right Angle *Additional lengths are available M12 Series X Coded End to End Cable Assembly 1 IPM12 SERIES 2 - X8 CODING & # CONTACTS SERIES IPM12 = M12 CODING & # CONTACTS X = 8 Contacts, X Coded 3 - 4 FM - CONNECTOR GENDER & ANGLES 6A CABLE TYPE 5 - 0.5 ASSEMBLY LENGTH CABLE TYPE 6A = Cat 6A 7 = Cat 7 ASSEMBLY LENGTH* 1.5 = 1.5 meters 2.0 = 2 meters 3.0 = 3 meters 5.0 = 5 meters 10 = 10 meters GENDER FM = Straight Female to Straight Male FMRA = Straight Female to Male Right Angle FRAM = Female Right Angle to Straight Male FRAMRA =Female Right Angle to Male Right Angle *Additional lengths are available MFRA = Straight Male to Female Right Angle 7 www.peigenesis.com M12 Male Molded Cable, Straight REF 42.0 14.5 M12 Molded Cable Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**-MWL-XXX M12x1.0 ** refers to coding and number of contacts X refers to cable length and cable type General Information Standard: IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 1 5 2 4A 2 4 (4+PE) 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 8 www.peigenesis.com I www.peigenesis.cn www.peigenesis.com M12 Female Molded Cable, Straight M12 Molded Cable Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**-FWL-XXX 14.5 REF 41.0 M12x1.0 ** refers to coding and number of contacts X refers to cable length and cable type General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Seal / O-ring: FKM Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) TPU; PA Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Coupling nut/screw: Zinc alloy with nickel plated Standard: Ambient temperature: Electrical Data & Mechanical Data Available Coding Contacts A C D 2 3 1 1 Voltage Wire gauge / size AWG mm2 Cable ending & length Cable jacket A/C D/C 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 4 3 4 3 03 pins B Rated Current (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 1 5 1 (4+PE) 6 2 06 pins 4A PE 4 2 5 1 2A(C-code) PE 4 5 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC Customized cable ending and length (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 9 10 2 17 pins 5 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 3 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn 9 www.peigenesis.com M12 Male Molded Cable, Straight, Shielded REF48.2 14.5 M12 Molded Cable Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**-MWL-XXXS M12x1.0 ** refers to coding and number of contacts X refers to cable length and cable type General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 1 5 2 4A 2 4 (4+PE) 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 Notes 10 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn www.peigenesis.com M12 Female Molded Cable, Straight, Shielded M12 Molded Cable Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**-FWL-XXXS 14.5 REF46.9 ** refers to coding and number of contacts X refers to cable length and cable type M12x1.0 General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Seal / O-ring: Insulation resistance: FKM ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated Connector overmold: TPU IP rating: IP67 locked condition Coupling nut/screw: Zinc alloy with nickel plated Standard: Ambient temperature: Electrical Data & Mechanical Data Available Coding Contacts A C D 2 3 1 1 Voltage Wire gauge / size AWG mm2 Cable ending & length Cable jacket A/C D/C 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 4 3 4 3 03 pins B Rated Current (2+PE) PE 04 pins 3 4 3 4 2 1 2 1 1 3 2 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 1 5 1 (4+PE) 6 2 06 pins 4A PE 4 2 5 1 2A(C-code) PE 4 5 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC Customized cable ending and length (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 9 10 2 17 pins 5 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 3 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn 11 www.peigenesis.com M12 Male Molded Cable, Straight, Snap-in Type REF 44 14.5 M12 Molded Cable Connector series: M12 Gender: Male Coding: A, B, D Locking type: Snap-in Mounting type: Straight Part No.: IPM12-**I-MWL-XXX ** refers to coding and number of contacts X refers to cable length and cable type General Information -10°C ~ +80°C (fixed installation) Ambient temperature: Connector insert: -5°C ~ +80°C (flexible installation) TPU Connector contacts: Brass with gold plated Connector overmold: TPU Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B 3 4 Rated Current D 3 03 pins 1 04 pins 4 3 4 3 4 3 1 2 1 2 1 2 05 pins 1 08 pins 4 1 4 6 7 1 5 3 4 2 1 5 3 2 Voltage Wire gauge / size Cable jacket Wire insulation A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC PVC 4A 250V 250V 22AWG 0.34 PUR / PVC PVC 4A 60V 60V 22AWG 0.34 PUR / PVC PVC 2A 30V 30V 24AWG 0.25 PUR / PVC PVC Cable ending & length Customized cable ending and length 5 8 4 3 2 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 12 www.peigenesis.com I www.peigenesis.cn www.peigenesis.com M12 Female Molded Cable, Straight, Snap-in Type M12 Molded Cable Connector series: M12 Gender: Female Coding: A, B, D Locking type: Snap-in Mounting type: Straight Part No.: IPM12-**I-FWL-XXX 14.5 REF 43 ** refers to coding and number of contacts X refers to cable length and cable type General Information Ambient temperature: -10°C ~ +80°C (fixed installation) Connector insert: -5°C ~ +80°C (flexible installation) TPU; PA Connector contacts: Brass with gold plated Connector overmold: TPU Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B D 4 3 4 Rated Current 03 pins 3 04 pins 3 4 3 4 3 4 2 1 2 1 2 1 05 pins 3 4 3 1 2 08 pins 1 1 5 2 3 4 2 5 8 6 1 7 4 5 1 Voltage Wire gauge / size Cable jacket Wire insulation A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC PVC 4A 250V 250V 22AWG 0.34 PUR / PVC PVC 4A 60V 60V 22AWG 0.34 PUR / PVC PVC 2A 30V 30V 24AWG 0.25 PUR / PVC PVC Cable ending & length Customized cable ending and length Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn 13 www.peigenesis.com M12 Male Molded Cable, Angled 8.8 REF 36 REF 29.7 M12 Molded Cable Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**-MRA-WL-XXX ** refers to coding and number of contacts X refers to cable length and cable type M12x1. 0 4. 5 General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) PA Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 1 5 2 4A 2 4 (4+PE) 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 14 www.peigenesis.com I www.peigenesis.cn www.peigenesis.com M12 Female Molded Cable, Angled M12 Molded Cable Connector series: M12 REF 36 REF 28 8.8 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**-FRA-WL-XXX ** refers to coding and number of contacts X refers to cable length and cable type 4. 5 M12x 1. 0 General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Seal / O-ring: FKM Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) TPU; PA Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Coupling nut/screw: Zinc alloy with nickel plated Standard: Ambient temperature: Electrical Data & Mechanical Data Available Coding Contacts A C D 2 3 1 1 Voltage Wire gauge / size AWG mm2 Cable ending & length Cable jacket A/C D/C 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 4 3 4 3 03 pins B Rated Current (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 PE 4 2 5 1 1 (4+PE) 6 2 06 pins 1 4A 5 PE 4 5 2A(C-code) 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC Customized cable ending and length (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 3 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 9 10 2 17 pins 5 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 15 www.peigenesis.com M12 Male Molded Cable, Angled, Shielded REF 37.5 REF29.7 M12 Molded Cable Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**-MRA-WL-XXXS ** refers to coding and number of contacts X refers to cable length and cable type M12x1.0 14.5 General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: -5°C ~ +80°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 1 5 2 4A 2 4 (4+PE) 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 Notes 16 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn www.peigenesis.com M12 Female Molded Cable, Angled, Shielded M12 Molded Cable Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**-FRA-WL-XXXS REF28.7 REF 37.5 ** refers to coding and number of contacts X refers to cable length and cable type M12x1.0 14.5 General Information IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Seal / O-ring: FKM Insulation resistance: ≥ 100MΩ Connector insert: -5°C ~ +80°C (flexible installation) PA Contact resistance: ≤ 5mΩ Connector contacts: Brass with gold plated Shielding: Available IP rating: IP67 in locked condition Connector overmold: TPU Coupling nut/screw: Zinc alloy with nickel plated Standard: Ambient temperature: Electrical Data & Mechanical Data Available Coding Contacts A C D 2 3 1 1 Voltage Wire gauge / size AWG mm2 Cable ending & length Cable jacket A/C D/C 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 4 3 4 3 03 pins B Rated Current (2+PE) PE 04 pins 3 4 3 4 2 1 2 1 1 3 2 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 PE 4 2 5 1 1 (4+PE) 6 2 06 pins 1 4A 5 PE 4 5 2A(C-code) 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1.5A 30V 30V 26AWG 0.14 PUR / PVC Customized cable ending and length (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 3 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 9 10 2 17 pins 5 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 17 www.peigenesis.com Connector series: M12 Gender: Male Coding: X Locking type: Fix screw Mounting type: Straight Part No.: IPM12-X8-MWL-***-XXX REF48.9 14.5 M12 Molded Cable M12 Male Molded Cable, Straight, X-coding, Shielded M12x1.0 X refers to cable length *** refers to cable type and termination General Information IEC 61076-2-109 -10°C ~ +60°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 10mΩ Connector insert: -5°C ~ +60°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Transmission characteristics: CAT 6A /CAT 7 Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Contacts X-Coding 5 08 pins Rated Voltage Wire gauge / size A/C D/C AWG mm2 50V 60V 27-24 0.14-0.25 Cable spec Cable ending & length CAT 6A /CAT 7 Customized cable ending and length 4 6 3 7 8 Rated Current 1 2 0.5A Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 7 for part number breakdown. 18 www.peigenesis.com M12 Female Molded Cable, Straight, X-coding, Shielded M12 Molded Cable REF47.3 14.5 Connector series: M12 Gender: Female Coding: X Locking type: Fix screw Mounting type: Straight Part No.: IPM12-X8-FWL-***-XXX M12x1.0 X refers to cable length *** refers to cable type and termination General Information IEC 61076-2-109 -10°C ~ +60°C (fixed installation) Seal / O-ring: FKM Insulation resistance: ≥ 100MΩ -5°C ~ +60°C (flexible installation) PA Contact resistance: ≤ 10mΩ Connector insert: Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Transmission characteristics: CAT 6A /CAT 7 Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Contacts X-Coding 4 08 pins Rated Current Rated Voltage Wire gauge / size A/C D/C AWG mm2 50V 60V 27-24 0.14-0.25 Cable spec Cable ending & length CAT 6A /CAT 7 Customized cable ending and length 5 6 3 7 2 1 0.5A 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 7 for part number breakdown. 19 www.peigenesis.com M12 Molded Cable M12 Male Molded Cable, Angled, X-coding, Shielded Connector series: M12 Gender: Male Coding: X Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-X8-MRA-WL-***-XXX REF33.9 REF37.5 14.5 X refers to cable length M12*1.0 *** refers to cable type and termination General Information Standard: IEC 61076-2-109 -10°C ~ +60°C (fixed installation) Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 10mΩ Connector insert: -5°C ~ +60°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector overmold: TPU Transmission characteristics: CAT 6A /CAT 7 Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Contacts X-Coding 5 08 pins Rated Voltage Wire gauge / size A/C D/C AWG mm 50V 60V 27-24 0.14-0.25 Cable spec Cable ending & length CAT 6A /CAT 7 Customized cable ending and length 2 4 6 3 7 8 Rated Current 1 2 0.5A Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 7 for part number breakdown. 20 www.peigenesis.com M12 Female Molded Cable, Angled, X-coding, Shielded M12 Molded Cable Connector series: M12 Gender: Female Coding: X Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-X8-FRA-WL-***-XXX REF32.4 REF37.5 14.5 X refers to cable length M12*1.0 *** refers to cable type and termination General Information IEC 61076-2-109 -10°C ~ +60°C (fixed installation) Seal / O-ring: Insulation resistance: FKM ≥ 100MΩ Contact resistance: ≤ 10mΩ Connector insert: -5°C ~ +60°C (flexible installation) PA Shielding: Available Connector contacts: Brass with gold plated Connector overmold: TPU IP rating: IP67 in locked condition Transmission characteristics: CAT 6A /CAT 7 Standard: Ambient temperature: Connector nut/screw: Zinc alloy with nickel plated Electrical Data & Mechanical Data Contacts X-Coding 4 08 pins Rated Voltage Wire gauge / size A/C D/C AWG mm 50V 60V 27-24 0.14-0.25 Cable spec Cable ending & length CAT 6A /CAT 7 Customized cable ending and length 2 5 3 6 2 7 1 Rated Current 0.5A 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 7 for part number breakdown. 21 www.peigenesis.com M12 Cable Assembly M12 Straight Female to M12 Straight Male Cable Assembly Connector series: M12 Gender: Female to Male Coding: A, B, C, D, X Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**-FM-XXX IPM12-X8-FM-##-XXX 14.5 REF 41.0 M12x1.0 REF 42.0 14.5 ** refers to coding and number of contacts X refers to cable length and cable type # refers to cable type (X-coding only) General Information M12x1.0 Connector nut/screw: Zinc alloy with nickel plated Standard: IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Ambient temperature: -5°C ~ +80°C (flexible installation) Connector insert: TPU Connector contacts: Brass with gold plated Connector overmold: TPU Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) 4A 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 The above information is in regards to A/B/C/D Coded cables only, please refer to pages 18-21 for X-Coded details Notes 22 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. • Please refer to Page 7 for X-coded part number breakdown. www.peigenesis.com M12 Cable Assembly M12 Straight Female to M12 Right Angle Male Cable Assembly REF 41.0 14.5 Connector series: M12 Gender: Female to Male Coding: A, B, C, D, X Locking type: Fix screw Mounting type: Straight to Right Angle M12x1.0 8.8 REF 36 REF 29.7 Part No.: IPM12-**-FMRA-XXX IPM12-X8-FMRA-##-XXX ** refers to coding and number of contacts X refers to cable length and cable type # refers to cable type (X-coding only) M12x1. 0 4. 5 General Information Connector nut/screw: Zinc alloy with nickel plated Insulation resistance: ≥ 100MΩ Standard: IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Ambient temperature: -5°C ~ +80°C (flexible installation) Connector insert: TPU Connector contacts: Brass with gold plated Connector overmold: TPU Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) 4A 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 The above information is in regards to A/B/C/D Coded cables only, please refer to pages 18-21 for X-Coded details Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. • Please refer to Page 7 for X-coded part number breakdown. 23 www.peigenesis.com M12 Cable Assembly M12 Right Angled Female to M12 Straight Male Cable Assembly REF 36 REF 28 8.8 Connector series: M12 Gender: Female to Male Coding: A, B, C, D, X Locking type: Fix screw Mounting type: Right Angle to Straight Part No.: IPM12-**-FRAM-XXX IPM12-X8-FRAM-##-XXX M12x 1. 0 4. 5 REF 42.0 14.5 ** refers to coding and number of contacts X refers to cable length and cable type # refers to cable type (X-coding only) General Information M12x1.0 Connector nut/screw: Zinc alloy with nickel plated Insulation resistance: ≥ 100MΩ Standard: IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Ambient temperature: -5°C ~ +80°C (flexible installation) Connector insert: TPU Connector contacts: Brass with gold plated Connector overmold: TPU Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) 2 PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) 4A 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 The above information is in regards to A/B/C/D Coded cables only, please refer to pages 18-21 for X-Coded details Notes 24 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. • Please refer to Page 7 for X-coded part number breakdown. www.peigenesis.com M12 Cable Assembly M12 Right Angled Female to M12 Right Angle Male Cable Assembly 8.8 REF 36 REF 28 Connector series: M12 Gender: Female to Male Coding: A, B, C, D, X Locking type: Fix screw Mounting type: Right Angle Part No.: IPM12-**-FRAMRA-XXX IPM12-X8-FRAMRA-##-XXX M12x 1. 0 REF 36 REF 29.7 8.8 4. 5 ** refers to coding and number of contacts X refers to cable length and cable type # refers to cable type (X-coding only) M12x1. 0 4. 5 General Information Connector nut/screw: Zinc alloy with nickel plated Insulation resistance: ≥ 100MΩ Standard: IEC 61076-2-101 -10°C ~ +80°C (fixed installation) Ambient temperature: -5°C ~ +80°C (flexible installation) Connector insert: TPU Connector contacts: Brass with gold plated Connector overmold: TPUs Contact resistance: ≤ 5mΩ Shielding: Unavailable IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B C Rated Current D Voltage Wire gauge / size Cable ending & length Cable jacket A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 PUR / PVC 4A 250V 250V 22AWG 0.34 PUR / PVC 60V 60V 22AWG 24(C-code) 0.34 0.25 PUR / PVC (C-code) PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) 4A 2A(C-code) Customized cable ending and length PE 2 4 06 pins 5 6 1 2A 30V 30V 24AWG 0.25 PUR / PVC 2A 30V 30V 24AWG 0.25 PUR / PVC (5+PE) 6 5 4 3 2 08 pins 7 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 1.5A 30V 30V 26AWG 0.14 PUR / PVC 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 1.5A 30V 30V 26AWG 0.14 PUR / PVC 1 8 8 The above information is in regards to A/B/C/D Coded cables only, please refer to pages 18-21 for X-Coded details Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. • Please refer to Page 7 for X-coded part number breakdown. 25 M12 Field Wireable Assembly www.peigenesis.com M12 Male Field Wireable Assembly, Straight, Solder Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**M-SCFT 17.0 16.2 REF 51 M12x1.0 ** refers to coding and number of contacts PG7 General Information Seal / O-ring: FKM Ambient temperature: -25°C ~ +90°C Insulation resistance: ≥ 100MΩ Connector insert: TPU Contact resistance: ≤ 5mΩ Connector contacts: Brass with gold plated Shielding: Unavailable Connector nut/screw: Brass with nickel plated Suitable cable dia: 4-5.5mm Connector body: IP rating: IP67 locked condition Standard: IEC 61076-2-101 PA+GF Electrical Data & Mechanical Data Available Coding Contacts A B C D PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) PE 2 4 06 pins 5 6 1 (5+PE) Contacts Termination Rated Current Solder Version Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 08 pins 7 4 3 2 Solder Version 2A 30V 30V 24AWG 0.25 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 Solder Version 1.5A 30V 30V 26AWG 0.14 6 1 5 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 26 www.peigenesis.com I www.peigenesis.cn M12 Field Wireable Assembly www.peigenesis.com M12 Female Field Wireable Assembly, Straight, Solder Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**F-SCFT RE F 50 .0 16.2 17.0 PG 7 M12x 1. 0 ** refers to coding and number of contacts General Information Seal / O-ring: FKM Ambient temperature: -25°C ~ +90°C Insulation resistance: ≥ 100MΩ Connector insert: TPU; PA Contact resistance: ≤ 5mΩ Connector contacts: Brass with gold plated Shielding: Unavailable Connector nut/screw: Brass with nickel plated Suitable cable dia: 4-5.5mm Connector body: IP rating: IP67 locked condition Standard: IEC 61076-2-101 PA+GF Electrical Data & Mechanical Data Available Coding Contacts A C D 2 3 1 1 Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 PE 4 3 4 3 03 pins B Rated Current (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 1 2 5 2 4 PE 4 2 5 1 (4+PE) 6 2 06 pins 1 4A 5 1 PE 4 5 2A(C-code) 24(C-code) (C-code) 2A 30V 30V 24AWG 0.25 2A 30V 30V 24AWG 0.25 1.5A 30V 30V 26AWG 0.14 (5+PE) 08 pins 12 pins 3 4 2 5 8 6 1 7 6 5 7 4 11 12 8 3 9 10 2 1 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn 27 M12 Field Wireable Assembly www.peigenesis.com M12 Male Field Wireable Assembly, Straight, Screw joint, Shielded Connector series: M12 Gender: Male Coding: A, B, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**M-SRFT-S-# REF 63 20.0 M12x1.0 ** refers to coding and number of contacts # suitable cable dia: A:4-6mm; B:6-8mm General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Available Connector contacts: Brass with gold plated Suitable cable dia: A: 4-6mm; B: 6-8mm Connector nut/screw: Brass with nickel plated IP rating: IP67 locked condition Connector body: Zinc alloy with nickel plated Assembly instructions: Refer to page 58 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B 3 4 D 3 03 pins 1 04 pins 4 3 4 3 1 2 1 2 05 pins 1 08 pins 4 1 4 6 7 1 5 3 4 2 1 5 3 2 4 3 1 2 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 5 8 4 3 2 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 28 M12 Field Wireable Assembly www.peigenesis.com M12 Female Field Wireable Assembly, Straight, Screw joint, Shielded Connector series: M12 Gender: Female Coding: A, B, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**F-SRFT-S-# 20.0 REF 58 M12x1.0 ** refers to coding and number of contacts # suitable cable Dia: A:4-6mm; B:6-8mm General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Available Connector contacts: Brass with gold plated Suitable cable dia: A: 4-6mm; B: 6-8mm Connector nut/screw: Brass with nickel plated IP rating: IP67 locked condition Connector body: Zinc alloy with nickel plated Assembly instructions: Refer to page 58 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B 4 3 4 D 03 pins 3 04 pins 3 4 3 4 3 4 2 1 2 1 2 1 05 pins 3 4 3 1 2 08 pins 1 1 5 2 3 4 2 5 8 6 1 7 4 5 1 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 www.peigenesis.com I www.peigenesis.cn • Please refer to Page 5 for part number breakdown. www.peigenesis.com I www.peigenesis.cn 29 M12 Field Wireable Assembly www.peigenesis.com M12 Male Field Wireable, Assembly, Angled, Solder Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**MRA-SCFT RE F 40 .0 16.2 RE F 36 .0 PG 7 ** refers to coding and number of contacts 17.0 M15x1.0 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: 4-5.5mm Connector nut/screw: Brass with nickel plated IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 55 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B C D PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) PE 2 4 06 pins 5 6 1 (5+PE) 08 pins 6 7 1 5 8 4 3 2 Contacts Termination Rated Current Solder Version Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 2A 30V 30V 24AWG 0.25 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 30 www.peigenesis.com I www.peigenesis.cn M12 Field Wireable Assembly www.peigenesis.com M12 Female Field Wireable Assembly, Angled, Solder Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**FRA-SCFT PG 7 RE F 39 .5 16.2 RE F35. 0 ** refers to coding and number of contacts 17.0 M15x 1. 0 General Information Standard: IEC 61076-2-101 Ambient temperature: -25°C ~ +90°C Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: 4-5.5mm Connector nut/screw: Brass with nickel plated IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 56 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A C D PE 4 3 4 3 03 pins B 2 3 1 1 Contacts Termination Rated Current Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 (2+PE) PE 04 pins 3 4 3 4 2 1 2 1 1 3 2 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 PE 4 2 5 1 5 1 Solder Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 2A 30V 30V 24AWG 0.25 (5+PE) 08 pins 3 4 2 5 8 6 1 7 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 31 M12 Field Wireable Assembly www.peigenesis.com M12 Male Field Wireable Assembly, Straight, Screw Joint Connector series: M12 Gender: Male Coding: A, B, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**M-SRFT-# RE F 60 .0 M12x 1. 0 20.0 PG 7 or PG9 ** refers to coding and number of contacts # refers to cable gland size: 3=PG9; 4=PG7 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: PG7: 4-6mm; PG9: 6-8mm Connector nut/screw: Aluminum alloy anodized IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 57 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B 3 4 D 3 03 pins 1 04 pins 4 3 4 3 1 2 1 2 05 pins 1 08 pins 4 1 4 6 7 1 5 3 4 2 1 5 3 2 4 3 1 2 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 5 8 4 3 2 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 32 M12 Field Wireable Assembly www.peigenesis.com M12 Female Field Wireable Assembly, Straight, Screw Joint Connector series: M12 Gender: Female Coding: A, B, D Locking type: Fix screw Mounting type: Straight Part No.: IPM12-**F-SRFT-# RE F 54 .0 PG 7 or PG9 20.0 M12x 1. 0 ** refers to coding and number of contacts # refers to cable gland size: 3=PG9; 4=PG7 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: PG7: 4-6mm; PG9: 6-8mm Connector nut/screw: Aluminum alloy anodized IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 57 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B 4 3 4 D 03 pins 3 04 pins 3 4 3 4 3 4 2 1 2 1 2 1 05 pins 3 4 3 1 2 08 pins 1 1 5 2 3 4 2 5 8 6 1 7 4 5 1 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 33 M12 Field Wireable Assembly www.peigenesis.com M12 Male Field Wireable Assembly, Angled, Screw Joint RE F4 0. 0 RE F43. 0 Connector series: M12 Gender: Male Coding: A, B, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**MRA-SRFT-# PG 7 or PG9 M12x 1. 0 ** refers to coding and number of contacts # refers to cable gland size: 3=PG9; 4=PG7 20 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: PG7: 4-6mm; PG9: 6-8mm Connector nut/screw: Aluminum alloy anodized IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 57 Seal / O-ring: FKM Electrical Data & Mechanical Data Available Coding Contacts A B 3 4 D 3 03 pins 1 04 pins 4 3 4 3 1 2 1 2 05 pins 1 08 pins 4 1 4 6 7 1 5 3 4 2 1 5 3 2 4 3 1 2 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 5 8 4 3 2 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 34 M12 Field Wireable Assembly www.peigenesis.com M12 Female Field Wireable Assembly, Angled, Screw Joint RE F4 0. 0 RE F3 7. 0 Connector series: M12 Gender: Female Coding: A, B, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**-FRA-SRFT-# PG 7 or PG9 M12x1. 0 ** refers to coding and number of contacts # refers to cable gland size: 3=PG9; 4=PG7 General Information Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated Suitable cable dia: PG7: 4-6mm; PG9: 6-8mm Connector nut/screw: Aluminum alloy anodized IP rating: IP67 locked condition Connector body: PA+GF Assembly instructions: Refer to page 57 Seal / O-ring: FKM Standard: IEC 61076-2-101 Electrical Data & Mechanical Data Available Coding Contacts A B 4 3 4 D 03 pins 3 04 pins 3 4 3 4 3 4 2 1 2 1 2 1 05 pins 3 4 3 1 2 08 pins 1 1 5 2 3 4 2 5 8 6 1 7 4 5 1 Contacts Termination Rated Current Screw Joint Wire gauge / size Voltage A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 Screw Joint 4A 250V 250V 22AWG 0.34 Screw Joint 4A 60V 60V 22AWG 0.34 Screw Joint 2A 30V 30V 24AWG 0.25 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 35 www.peigenesis.com M12 Male Panel Mount, Solder, Front Fastened M12 Panel Mounts Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**M-SC-3 M16x1. 5 or PG9 M12x 1. 0 13. 4 ** refers to coding and number of contacts 19. 5 H1 9 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Panel cut-out: Refer to page 60 Connector nut/screw: Brass with nickel plated Seal/O-ring: Epoxy resin/FKM Electrical Data & Mechanical Data Available Coding Contacts A B C D Contacts Termination Rated Current Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 Solder Version (4+PE) 4A 2A(C-code) 24(C-code) (C-code) PE 2 4 06 pins Solder Version 2A 30V 30V 24AWG 0.25 08 pins 7 4 3 2 Solder Version 2A 30V 30V 24AWG 0.25 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 Solder Version 1.5A 30V 30V 26AWG 0.14 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 Solder Version 1.5A 30V 30V 26AWG 0.14 5 6 1 (5+PE) 6 1 8 5 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 36 www.peigenesis.com M12 Female Panel Mount, Solder, Front Fastened M12 Panel Mounts Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**F-SC-3 18.5 2.5 M12x1.0 13.4 18.0 ** refers to coding and number of contacts PG9 General Information Standard: IEC 61076-2-101 Ambient temperature: -25°C ~ +90°C Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 locked condition Panel cut-out: Refer to page 60 Connector nut/screw: Brass with nickel plated Seal / O-ring: Epoxy resin/FKM Electrical Data & Mechanical Data Available Coding Contacts A C D PE 4 3 4 3 03 pins B 2 3 1 1 Contacts Termination Rated Current Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 1 2 5 2 4 PE 4 2 5 1 5 1 Solder Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 1.5A 30V 30V 26AWG 0.14 (5+PE) 08 pins 12 pins 3 4 2 5 8 6 1 7 6 5 7 4 11 12 8 3 9 10 2 1 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 37 www.peigenesis.com M12 Panel Mounts M12 Male Panel Mount, Solder, Rear Fastened Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Rear fastened Part No.: IPM12-**M-RF-SC-3 20 13 13.4 17.0 18.0 ** refers to coding and number of contacts 2 M12x1.0 PG9 or M16x1. General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Panel cut-out: Refer to page 60 Connector nut/screw: Brass with nickel plated Seal/O-ring: Epoxy resin/FKM Electrical Data & Mechanical Data Available Coding Contacts A B C D PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) PE 4 3 1 2 Contacts Termination Rated Current Solder Version Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 08 pins 7 4 3 2 Solder Version 2A 30V 30V 24AWG 0.25 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 Solder Version 1.5A 30V 30V 26AWG 0.14 2 4 06 pins 5 6 1 (5+PE) 6 1 5 8 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 38 www.peigenesis.com M12 Female Panel Mount, Solder, Rear Fastened M12 Panel Mounts Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Rear fastened Part No.: IPM12-**F-RF-SC-3 18.5 2.5 13.4 18 ** refers to coding and number of contacts PG9 or M16x1.5 M12x1.0 General Information Standard: IEC 61076-2-101 Ambient temperature: -25°C ~ +90°C Insulation resistance: ≥ 100MΩ Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 locked condition Panel cut-out: Refer to page 60 Connector nut/screw: Brass with nickel plated Seal / O-ring: Epoxy resin/FKM Electrical Data & Mechanical Data Available Coding Contacts A C D PE 4 3 4 3 03 pins B 2 3 1 1 Contacts Termination Rated Current Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 1 2 5 2 4 PE 4 2 5 1 5 1 Solder Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 1.5A 30V 30V 26AWG 0.14 Solder Version 1.5A 30V 30V 26AWG 0.14 (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 3 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 9 10 2 17 pins 5 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 39 www.peigenesis.com M12 Male Panel Mount, Flying Leads, Front Fastened M12 Panel Mounts Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastening Part No.: IPM12-**M-FL M16x1. 5 or PG9 M12x1. 0 13.4 ** refers to coding and number of contacts 19.5 H1 9 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass with nickel plated Wire length: 500 mm Seal/O-ring: Epoxy resin/ FKM Panel cut-out: Refer to page 60 Electrical Data & Mechanical Data Available Coding Contacts A B C D PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 (4+PE) PE 2 4 06 pins 5 6 1 (5+PE) 4 3 1 2 Contacts Termination Rated Current Solder Version Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 4A 2A(C-code) 24(C-code) (C-code) Supplied blunt cut Solder Version 2A 30V 30V 24AWG 0.25 08 pins 7 4 3 2 Solder Version 2A 30V 30V 24AWG 0.25 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 Solder Version 1.5A 30V 30V 26AWG 0.14 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 Solder Version 1.5A 30V 30V 26AWG 0.14 6 1 8 5 8 Cable ending & length 2 Notes 40 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. www.peigenesis.com Connector series: M12 Gender: Female Coding: A Locking type: Fix screw Mounting type: Front fastening Part No.: IPM12-**F-FL M12 Panel Mounts M12 Female Panel Mount, Flying Leads, Front Fastened 18.5 2.5 M12x1.0 PG9 13.4 18.0 ** refers to coding and number of contacts General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass with nickel plated Wire length: 500 mm Seal/O-ring: Epoxy resin/ FKM Panel cut-out: Refer to page 60 Electrical Data & Mechanical Data Available Coding Contacts A C D PE 4 3 4 3 03 pins B 2 3 1 1 Contacts Termination Rated Current Solder Version Solder Version Voltage Wire gauge / size A/C D/C AWG mm2 4A 250V 250V 22AWG 0.34 4A 250V 250V 22AWG 0.34 60V 60V 22AWG 0.34 0.25 Cable ending & length (2+PE) PE 04 pins 3 4 3 4 2 1 2 1 1 3 2 3 4 2 1 (3+PE) 3 05 pins 4 3 5 2 2 1 4 PE 4 2 5 1 5 1 Solder Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) 24(C-code) (C-code) Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 2A 30V 30V 24AWG 0.25 Solder Version 1.5A 30V 30V 26AWG 0.14 Supplied blunt cut (5+PE) 08 pins 12 pins 3 4 2 5 8 6 1 7 6 5 7 4 11 12 8 3 9 10 2 1 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 41 www.peigenesis.com M12 Male Panel Mount, PCB Type, Front Fastened M12 Panel Mounts Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**M-PC-3 19.5 PG9 M12x1.0 3.0 6.5 13. 4 H1 9 ** refers to coding and number of contacts General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal/O-ring: Epoxy resin/ FKM PCB layout: Refer to page 59-60 Electrical Data & Mechanical Data Available Coding Contacts A B C D Contacts Termination Rated Current PCB Version PCB Version Voltage A/C D/C 4A 250V 250V 4A 250V 250V 60V 60V PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 PCB Version (4+PE) 4A 2A(C-code) PE 2 4 06 pins 5 6 1 PCB Version 2A 30V 30V (5+PE) 6 5 08 pins 7 4 3 2 PCB Version 2A 30V 30V 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 PCB Version 1.5A 30V 30V 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 PCB Version 1.5A 30V 30V 1 8 8 Notes 42 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. www.peigenesis.com M12 Female Panel Mount, PCB Type, Front Fastened M12 Panel Mounts Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**F-PC-3 6.5± 0.5 18.5 2.5 3.0 13.4 18.0 ** refers to coding and number of contacts M12x1.0 PG 9 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Unavailable Connector contacts: Brass with gold plated IP rating: IP67 locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal / O-ring: PCB layout: Refer to page 59-60 Epoxy resin/FKM Coding Electrical Data &Available Mechanical Data Contacts A C D 2 3 1 1 Rated Current PCB Version PCB Version Voltage A/C D/C 4A 250V 250V 4A 250V 250V 60V 60V PE 4 3 4 3 03 pins B Contacts Termination (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 1 2 5 2 4 PE 4 2 5 1 5 1 PCB Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) PCB Version 2A 30V 30V PCB Version 2A 30V 30V PCB Version 1.5A 30V 30V PCB Version 1.5A 30V 30V (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 3 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 9 10 2 17 pins 5 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 43 www.peigenesis.com M12 Male Panel Mount, PCB Type, Front Fastened, Shielded M12 Panel Mounts Connector series: M12 Gender: Male Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**M-PC-S-3 PG 9 M12x1. 0 Sh ie lded Pin 3.0 13. 4 H1 8 ** refers to coding and number of contacts 20 6. 5 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal/O-ring: Epoxy resin/ FKM PCB layout: Refer to page 59-60 Electrical Data & Mechanical Data Available Coding Contacts A B C D Contacts Termination Rated Current PCB Version PCB Version Voltage A/C D/C 4A 250V 250V 4A 250V 250V 60V 60V PE 03 pins 3 4 1 4 3 2 3 1 (2+PE) 04 pins 4 3 4 3 1 2 1 2 PE 1 3 2 4 3 1 2 (3+PE) PE 05 pins 4 5 1 3 4 2 1 5 3 2 4 1 5 2 PCB Version (4+PE) 4A 2A(C-code) PE 2 4 06 pins 5 6 1 PCB Version 2A 30V 30V (5+PE) 6 5 08 pins 7 4 3 2 PCB Version 2A 30V 30V 12 pins 6 7 5 4 8 12 11 3 9 1 10 2 PCB Version 1.5A 30V 30V 17 pins 9 7 6 5 15 14 4 16 17 11 12 13 3 10 2 1 PCB Version 1.5A 30V 30V 1 8 8 Notes 44 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. www.peigenesis.com M12 Female Panel Mount, PCB Type, Front Fastened, Shielded 6.5± 0.5 18.5 PG9 M12 Panel Mounts Connector series: M12 Gender: Female Coding: A, B, C, D Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-**F-PC-S-3 2.5 Shield Terminal 3.0 13.4 18.0 ** refers to coding and number of contacts M12x1.0 General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal / O-ring: PCB layout: Refer to page 59-60 Epoxy resin/FKM Coding Electrical Data &Available Mechanical Data Contacts A C D 2 3 1 1 Rated Current PCB Version PCB Version Voltage A/C D/C 4A 250V 250V 4A 250V 250V 60V 60V PE 4 3 4 3 03 pins B Contacts Termination (2+PE) PE 4 3 04 pins 2 4 3 2 1 1 3 2 1 3 4 2 1 (3+PE) 3 05 pins 4 3 1 2 5 2 4 PE 4 2 5 1 5 1 PCB Version (4+PE) 6 2 06 pins 1 PE 4 5 4A 2A(C-code) PCB Version 2A 30V 30V PCB Version 2A 30V 30V PCB Version 1.5A 30V 30V PCB Version 1.5A 30V 30V (5+PE) 08 pins 12 pins 3 4 2 8 6 1 7 6 5 7 4 11 12 8 3 3 1 6 7 8 14 15 13 17 16 9 12 11 10 2 1 5 4 9 10 2 17 pins 5 Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 45 www.peigenesis.com Connector series: M12 Gender: Male Coding: A, B, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**M-PCRA (Unshielded) IPM12-**M-PCRA-S (Shielded) SW 15.5 15 2 M12x1.0 1.0 1.6 M12 Panel Mounts M12 Male Panel Mount, Angled, PCB Type, Front Fastened (Shielded/Unshielded) ** refers to coding and number of contacts General Information Standard: IEC 61076-2-101 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: TPU Shielding: Unavailable / Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal/O-ring: Epoxy resin/ FKM PCB layout: Refer to page 59-60 Electrical Data & Mechanical Data Available Coding Contacts A B D 04 pins 4 3 4 3 4 3 1 2 1 2 1 2 05 pins 1 08 pins 4 6 7 1 5 3 4 2 1 5 3 2 Contacts Termination Rated Current PCB Version Voltage A/C D/C 4A 250V 250V PCB Version 4A 60V 60V PCB Version 2A 30V 30V 5 8 4 3 2 Notes 46 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. www.peigenesis.com Connector series: M12 Gender: Female Coding: A, B, D Locking type: Fix screw Mounting type: Right angled Part No.: IPM12-**F-PCRA (Unshielded) IPM12-**F-PCRA-S (Shielded) SW M12 Panel Mounts M12 Female Panel Mount, Angled, PCB Type, Front Fastened, (Shielded/Unshielded) 16 15 2 1.0 1.6 M12x1.0 ** refers to coding and number of contacts General Information Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 5mΩ Connector insert: PA+GF Shielding: Unavailable / Available Connector contacts: Brass with gold plated IP rating: IP67 locked condition Connector nut/screw: Brass with nickel plated Panel cut-out: Refer to page 60 Seal / O-ring: PCB layout: Refer to page 59-60 Standard: IEC 61076-2-101 FKM Electrical Data & Mechanical Data Available Coding Contacts A B D 04 pins 3 4 3 4 3 4 2 1 2 1 2 1 05 pins 3 4 3 1 2 08 pins 5 2 3 4 2 5 8 6 1 7 4 5 1 Contacts Termination Rated Current PCB Version Voltage A/C D/C 4A 250V 250V PCB Version 4A 60V 60V PCB Version 2A 30V 30V Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 6 for part number breakdown. 47 www.peigenesis.com Connector series: M12 Gender: Male Coding: X Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-X8M-PC-S 25 17 12.0 13.4 2.0 2.3 1.0 M12 Panel Mounts M12 Male Panel Mount, PCB Type, Front Fastened, X-coding, Shielded 2.3 M12*1.0 ** refers to coding and number of contacts M16*1.5 General Information Standard: IEC 61076-2-109 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 10mΩ Connector insert: PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM/Epoxy resin Electrical Data & Mechanical Data Contacts 3 8 D/C 1 PCB Version 0.5A 50V 60V 2 Panel Cut-out Dimensions With thread to screw in M16x1.5 16 +0.1 -0 With bare hole PCB Layout 5.6 2.8 5 4 6 3 2 7 8 +0.1 13.5 -0 Notes 48 1x45 ° 1 1x45 ° 10.0 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 10.0 6 7 2.8 08 pins A/C 4 5.6 5 Voltage Rated Current Contacts Termination www.peigenesis.com 19.5 10.0 Connector series: M12 Gender: Female Coding: X Locking type: Fix screw Mounting type: Front fastened Part No.: IPM12-X8F-PC-S 1.5 2.0 M12 Panel Mounts M12 Female Panel Mount, PCB Type, Front Fastened, X-coding, Shielded 2.3 2.3 M12x1.0 M16x1.5 ** refers to coding and number of contacts SW19 SW17 General Information Standard: IEC 61076-2-109 Insulation resistance: ≥ 100MΩ Ambient temperature: -25°C ~ +90°C Contact resistance: ≤ 10mΩ Connector insert: PA Shielding: Available Connector contacts: Brass with gold plated IP rating: IP67 in locked condition Connector nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM Electrical Data & Mechanical Data Contacts 3 6 2 7 D/C 0.5A 50V 60V 8 Panel Cut-out Dimensions With thread to screw in M16x1.5 16 +0.1 -0 With bare hole PCB Layout 5.6 2.8 5 4 6 3 2 7 8 +0.1 13.5 -0 Notes 1x45 ° 10.0 1 PCB Version 2.8 08 pins A/C 5 5.6 4 Voltage Rated Current Contacts Termination 1 1x45 ° 10.0 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 • Please refer to Page 5 for part number breakdown. 49 www.peigenesis.com M12 Y-Splitter, Male-2*Female M12x1.0 M12x1.0 1 2 17.0 ** refers to coding and number of contacts REF 20.5 M12 Y-Splitter Connector series: M12 Gender: Female & Male Coding: A, B, D Locking type: Fix screw Mounting type: Y type Part No.: IPM12-**-YSPLT-MFF M12x1.0 General Information Ambient temperature: -20°C ~ +80°C Seal/O-ring: FKM Connector insert: TPU; PA Insulation resistance: ≥ 100MΩ Connector contacts: Brass with gold plated Contact resistance: ≤ 5mΩ Connector nut/screw: Brass with nickel plated Shielding: Unavailable Overmold: PVC IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B 4 3 4 1 03 pins Male Male 250V 250V 4A 250V 250V 4A 60V 60V 2A 30V 30V 1 Female 4 3 4 3 4 3 1 2 1 2 1 2 Male Male Male 3 4 3 4 3 4 2 1 2 1 2 1 Female 4 5 1 3 3 4 1 4 1 6 1 2 3 4 5 1 Female 5 8 4 3 2 Male 4 Female 2 Male 2 Female 7 5 3 5 2 Female 2 Male 3 4A 4 3 4 Female 08 pins D/C 3 1 05 pins A/C 1 3 04 pins D Voltage Rated Current 5 8 6 1 7 Female Notes 50 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 www.peigenesis.com M12 Y-Splitter, Female-Male-Female M12x1.0 M12x1.0 REF 20.5 12 M12 Y-Splitter Connector series: M12 Gender: Female & Male Coding: A, B, D Locking type: Fix screw Mounting type: Y type Part No.: IPM12-**-YSPLT-FMF 17.0 M12x1.0 ** refers to coding and number of contacts General Information Ambient temperature: -20°C ~ +80°C Seal/O-ring: FKM Connector insert: TPU; PA Insulation resistance: ≥ 100MΩ Connector contacts: Brass with gold plated Contact resistance: ≤ 5mΩ Connector nut/screw: Brass with nickel plated Shielding: Unavailable Overmold: PVC IP rating: IP67 in locked condition Electrical Data & Mechanical Data Available Coding Contacts A B 4 3 4 1 03 pins Male Male 250V 250V 4A 250V 250V 4A 60V 60V 2A 30V 30V 1 Female 4 3 4 3 4 3 1 2 1 2 1 2 Male Male Male 3 4 3 4 3 4 2 1 2 1 2 1 Female 4 5 1 3 3 4 1 4 1 6 1 2 3 4 5 1 Female 5 8 4 3 2 Male 4 Female 2 Male 2 Female 7 5 3 5 2 Female 2 Male 3 4A 4 3 4 Female 08 pins D/C 3 1 05 pins A/C 1 3 04 pins D Voltage Rated Current 5 8 6 1 7 Female Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 51 www.peigenesis.com Connector series: M12 Gender: Male Locking type: Fix screw Part No.: IPM12-CAP-M 10. 5 M12x 1. 0 19. 7 M12 Protection Cap M12 Protection Cap for Male Connector 17. 3 15.3 General Information Material: PA+GF O-ring: FKM Color: Black Degree of Protection: IP67 in locked condition M12 Protection Cap for Female Connector 3.9 M12x1. 0 .6 Connector series: M12 Gender: Female Locking type: Fix screw Part No.: IPM12-CAP-F 11.9 General Information Material: PA+GF Color: Black Degree of Protection: IP67 in locked condition Notes 52 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 www.peigenesis.com 15.3 Connector series: M12 Gender: Male Locking type: Fix screw Part No.: IPM12-CAP-M-CA M12 Protection Cap M12 Cable Mounted Protection Cap for Male Molded Connector M12x1.0 General Information Color: Black Loop: TPU Nut/screw: PA+GF IP rating: IP67 in locked condition Gasket: FKM Connector series: M12 Gender: Female Locking type: Fix screw Part No.: IPM12-CAP-F-CA 17.3 M12 Cable Mounted Protection Cap for Female Connector M12x1.0 General Information Color: Black Loop: TPU Nut/screw: PA+GF IP rating: IP67 in locked condition Notes • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 53 www.peigenesis.com M12 Protection Cap M12 Cable Mounted Protection Cap for Male Panel-mount Connector 1.5 Connector series: M12 Gender: Male Locking type: Fix screw Part No.: IPM12-CAP-M-PNL M12x1.0 85 19.0 (s ize 1) 15. 0 85 19.0 (s ize 2) 10. 8 General Information Material: PA+GF O-ring: FKM Color: Black Degree of protection: IP67 in locked condition M12 Cable Mounted Protection Cap for Female Panel-mount Connector 1.5 17.3 Connector series: M12 Gender: Female Locking type: Fix screw Part No.: IPM12-CAP-F-PNL M12x1.0 85 ±3 19.0 15.0 General Information Color: Black Loop: TPU Nut/screw: PA+GF IP rating: IP67 in locked condition Notes 54 • Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2 www.peigenesis.com M12 Assembly Instructions M12 Field Wireable Assembly with Solder Cup Instructions Head Front nut Arrow 1. Ensure the cable jacket is suitably prepared, wires are stripped and tinned. Main body 2. Using a soldering iron, and suitable solder. Solder the wires to the contacts according to your wiring schematic. 3. Once soldered, ensure the keyway on the front nut is correctly aligned to the main body. Gently press together to ensure alignment. Gasket Back nut Keyway Cable Picture 1 press Keyway Front nut Arrow Back nut 4. Pull the cable gently to straighten the internal wiring, and then fully tighten the front nut to the main body. 5. Slide both the gasket and back nut towards the main body and into place, ensure the gasket is installed correctly and then tighten the back nut into place so there is an adequate seal on the cable. press Picture 2 55 M12 Assembly Instructions www.peigenesis.com M12 Field Wireable Assembly with Solder Cup Instructions 1. Ensure the cable jacket is suitably prepared, wires are stripped and tinned. 2. Using a soldering iron, and suitable solder. Solder the wires to the contacts according to your wiring schematic. 3. Once soldered, ensure the keyway on the front nut is correctly aligned to the main body. Gently press together to ensure alignment. 4. Pull the cable gently to straighten the internal wiring, and then fully tighten the front nut to the main body. 5. Slide both the gasket and back nut towards the main body and into place, ensure the gasket is installed correctly and then tighten the back nut into place so there is an adequate seal on the cable. Front nut Head Arrow Main body Gasket Keyway Back nut Cable Picture 1 press Coding key Front nut Back nut Arrow press Picture 2 56 6. Push the gasket to the right position and lock the back nut. www.peigenesis.com M12 Assembly Instructions M12 Field Wireable Assembly with Screw Joint Instruction Step 1 Prepare the cable jacket Strip cable jacket 20± 2mm Strip insulation 5.0± 0.5mm Cut wire for center pin to 15± 2mm Step 2 Assemble all the components on cable as follows. Right angle sketch 43 1 2 Step 3 Connect all wires to the insert according to wirelist, then tighten all small screws. The torque for the screws is 0.2Nm. . Step 4 43 1 2 Assemble plastic nut to main body. Recommended torque: 1.0 Nm. (Note: The key inside the main body must be correctly aligned to the insert. Step 5 43 1 2 Push the cable seal, pinch ring into the main body, then tighten the pressure screw into the body with recommended torque: 1.0 Nm. 57 M12 Assembly Instructions www.peigenesis.com M12 Field Wireable Assembly with Screw Joint Instruction, Shielded Step 1 Assemble all components on cable as following. Shi eld ing sle eve Sea l Pin ch ri ng Pre ssu re n ut Ca ble Step 2 Prepare the cable jacket. Strip the cable as following. Strip cable jacket 40± 2mm Keep the braid 8 ±1 mm Strip insulation 5.0± 0.5mm Cut wire for center pin to 35± 2mm Step 3 Push the braid over the shielding sleeve Step 4 Step 5 Step 6 Insert the cable in the main body and assemble the pressure nut tightly on the main body. Recommended torque: 1.0 Nm. Connect all wires to insert according to wirelist, then tighten all small screws. The torque for small screws is 0.2Nm. Insert the Female/male housing in the main body and assemble the nut to main body. Recommended torque: 1.0 Nm. (Note: The key inside the main body must be correctly aligned to the insert.) Main 58 bod y Sm all scr ew Nut M12 PCB Layout & Panel Cut-out www.peigenesis.com M12 PCB Layout & Panel Cut-out PCB Layout 1 3 0° For shielding Pin (Pin OD: 0.6) 12P 0.8) 6. 5 12 2 ° 3 For shielding Pin ° 31.5 1. 7 ° 13 11 5.55 2 1. 7 1. 7 1 ° 4 17 16 10 5.55 8x 5.55 5.55 5.55 1. 7 25 8 0. x 17 14 15 9 3 10 6 9x 33 12x 0 5x 5x 1. 7 For shielding Pin (Pin OD: 8P .5 .6 25 3. 29 8x 4 11 7 5 8 ° 60 5x 33 ° 12 9 37 For shielding Pin (Pin OD: 1.0) 3P/4P/5P (Pin OD: 0.8) 3P/4P/5P 2 1 5 ° 45 ° For shielding Pin 8 3 8 7 0 2 1 4 6 12 ° 5 5.87 ° 45 6 5.5 49 6x 2 1 5 3 4 5.0 2.2 3 4 5.0 2x 1. 1. 0 1. 2 0.8 M12 Male Connector (A,B & D coding) (Pin OD: 0.6) 17P Recommended PCB layout .6 25 ° ° For shielding Pin 1. 7 For shielding Pin (Pin OD: 8P (Pin OD: 0.6) 12P 0.8) 12 2 30 ° 6. 5 11 10 ° 3 5.55 17 16 x 17 9 9x 33 1 8 0. 8 13 7 7 1. 7 1. (Pin OD: 1.0) 3P/4P/5P (Pin OD: 0.8) 3P/4P/5P 37 33 ° For shielding Pin 10 2 4 1. 45 ° For shielding Pin ° ° .5 7 49 45 29 8x 9 7 15 14 8 1. 1 12 5.55 8x 2 12x 1. 0 5.55 1 3 7 5.55 5x 5.55 2 11 5 ° 60 5x 1 6x 2 8 25 4 3 7 6 3. 5.5 5 6 4 6 ° 5.0 5.0 5.8 5 0 4 5 4 12 3 2x 3 2.2 5x 1. 1. 0 2 0.8 M12 Female Connector (A,B & D coding) 1 ° 31.5 For shielding Pin (Pin OD: 0.6) 17P Recommended PCB layout M12 C-coding Connector Male Connector PE 3 PE 2 5 1.7 57 PE 2 4 6 1 5 1.7 1 1.7 For shielding pin 3Pin 6x 3 2 For shielding pin 4. 4 1 1.7 57 0 1. 4x72 ° 5x 5.55 2 4. 5.55 3. 8 0 57 4. 0 PE 0 1. 4x72 ° 1. 5.55 3x120 ° 1. For shielding pin For shielding pin 6Pin 5Pin 4Pin 5.55 4x 3x Female Connector 4. For shielding pin 5.55 5.55 2 1.7 1.7 4Pin 5 5 1 1.7 For shielding pin 5Pin 57 4 6 1.7 For shielding pin 3Pin 2 4 1 4. PE 1 3 0 PE 2 2 3 4x72 ° 1. 57 5.55 PE 6x 4x72 ° 1. 0 4x 4. 57 5.55 8 3. 3x120 ° PE 5x 0 1. 0 1. 3x For shielding pin 6Pin 59 M12 PCB Layout & Panel Cut-out www.peigenesis.com M12 PCB Layout & Panel Cut-out PCB Layout M12 Right Angled Connector Recommended PCB layout Panel Cut-out Dimensions A M12 12 PG9 15.3 B +0.1 –0 +0.1 –0 M12x1.0 PG9 H-cutting A PG9 15.3 B +0.1 –0 C PG9 13.5 +0.1 –0 D-cutting A 60 PG9 15.3 M12 12 B +0.1 –0 +0.1 –0 C PG9 14.3 M12x1.0 11.3 +0.1 –0 +0.1 –0 www.peigenesis.com All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-A3-MWL-XX 8 IPM12-A3-FWL-XXU 9 IPM12-A4-MWL-XXS 10 IPM12-A3-MWL-XXU 8 IPM12-A4-FWL-XX 9 IPM12-A4-MWL-XXUS 10 IPM12-A4-MWL-XX 8 IPM12-A4-FWL-XXU 9 IPM12-A5-MWL-XXS 10 IPM12-A4-MWL-XXU 8 IPM12-A5-FWL-XX 9 IPM12-A5-MWL-XXUS 10 IPM12-A5-MWL-XX 8 IPM12-A5-FWL-XXU 9 IPM12-A8-MWL-XXS 10 IPM12-A5-MWL-XXU 8 IPM12-A8-FWL-XX 9 IPM12-A8-MWL-XXUS 10 IPM12-A8-MWL-XX 8 IPM12-A8-FWL-XXU 9 IPM12-A12-MWL-XXS 10 IPM12-A8-MWL-XXU 8 IPM12-A12-FWL-XX 9 IPM12-A12-MWL-XXUS 10 IPM12-A12-MWL-XX 8 IPM12-A12-FWL-XXU 9 IPM12-A17-MWL-XXS 10 IPM12-A12-MWL-XXU 8 IPM12-A17-FWL-XX 9 IPM12-A17-MWL-XXUS 10 IPM12-A17-MWL-XX 8 IPM12-A17-FWL-XXU 9 IPM12-B3-MWL-XXS 10 IPM12-A17-MWL-XXU 8 IPM12-B3-FWL-XX 9 IPM12-B3-MWL-XXUS 10 IPM12-B3-MWL-XX 8 IPM12-B3-FWL-XXU 9 IPM12-B4-MWL-XXS 10 IPM12-B3-MWL-XXU 8 IPM12-B4-FWL-XX 9 IPM12-B4-MWL-XXUS 10 IPM12-B4-MWL-XX 8 IPM12-B4-FWL-XXU 9 IPM12-B5-MWL-XXS 10 IPM12-B4-MWL-XXU 8 IPM12-B5-FWL-XX 9 IPM12-B5-MWL-XXUS 10 IPM12-B5-MWL-XX 8 IPM12-B5-FWL-XXU 9 IPM12-C3-MWL-XXS 10 IPM12-B5-MWL-XXU 8 IPM12-C3-FWL-XX 9 IPM12-C3-MWL-XXUS 10 IPM12-C3-MWL-XX 8 IPM12-C3-FWL-XXU 9 IPM12-C4-MWL-XXS 10 IPM12-C3-MWL-XXU 8 IPM12-C4-FWL-XX 9 IPM12-C4-MWL-XXUS 10 IPM12-C4-MWL-XX 8 IPM12-C4-FWL-XXU 9 IPM12-C5-MWL-XXS 10 IPM12-C4-MWL-XXU 8 IPM12-C5-FWL-XX 9 IPM12-C5-MWL-XXUS 10 IPM12-C5-MWL-XX 8 IPM12-C5-FWL-XXU 9 IPM12-C6-MWL-XXS 10 IPM12-C5-MWL-XXU 8 IPM12-C6-FWL-XX 9 IPM12-C6-MWL-XXUS 10 IPM12-C6-MWL-XX 8 IPM12-C6-FWL-XXU 9 IPM12-D4-MWL-XXS 10 IPM12-C6-MWL-XXU 8 IPM12-D4-FWL-XX 9 IPM12-D4-MWL-XXUS 10 IPM12-D4-MWL-XX 8 IPM12-D4-FWL-XXU 9 IPM12-A3-FWL-XXS 11 IPM12-D4-MWL-XXU 8 IPM12-A3-MWL-XXS 10 IPM12-A3-FWL-XXUS 11 IPM12-A3-FWL-XX 9 IPM12-A3-MWL-XXUS 10 IPM12-A4-FWL-XXS 11 Part Numbers XX = Cable length XXX = Cable length & type M12 Part Numbers Part Numbers 61 M12 Part Numbers www.peigenesis.com 62 All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-A4-FWL-XXUS 11 IPM12-A8I-MWL-XXU 12 IPM12-A8-MRA-WL-XXU 14 IPM12-A5-FWL-XXS 11 IPM12-B3I-MWL-XX 12 IPM12-A12-MRA-WL-XX 14 IPM12-A5-FWL-XXUS 11 IPM12-B3I-MWL-XXU 12 IPM12-A12-MRA-WL-XXU 14 IPM12-A8-FWL-XXS 11 IPM12-B4I-MWL-XX 12 IPM12-A17-MRA-WL-XX 14 IPM12-A8-FWL-XXUS 11 IPM12-B4I-MWL-XXU 12 IPM12-A17-MRA-WL-XXU 14 IPM12-A12-FWL-XXS 11 IPM12-B5I-MWL-XX 12 IPM12-B3-MRA-WL-XX 14 IPM12-A12-FWL-XXUS 11 IPM12-B5I-MWL-XXU 12 IPM12-B3-MRA-WL-XXU 14 IPM12-A17-FWL-XXS 11 IPM12-D4I-MWL-XX 12 IPM12-B4-MRA-WL-XX 14 IPM12-A17-FWL-XXUS 11 IPM12-D4I-MWL-XXU 12 IPM12-B4-MRA-WL-XXU 14 IPM12-B3-FWL-XXS 11 IPM12-A3I-FWL-XX 13 IPM12-B5-MRA-WL-XX 14 IPM12-B3-FWL-XXUS 11 IPM12-A3I-FWL-XXU 13 IPM12-B5-MRA-WL-XXU 14 IPM12-B4-FWL-XXS 11 IPM12-A4I-FWL-XX 13 IPM12-C3-MRA-WL-XX 14 IPM12-B4-FWL-XXUS 11 IPM12-A4I-FWL-XXU 13 IPM12-C3-MRA-WL-XXU 14 IPM12-B5-FWL-XXS 11 IPM12-A5I-FWL-XX 13 IPM12-C4-MRA-WL-XX 14 IPM12-B5-FWL-XXUS 11 IPM12-A5I-FWL-XXU 13 IPM12-C4-MRA-WL-XXU 14 IPM12-C3-FWL-XXS 11 IPM12-A8I-FWL-XX 13 IPM12-C5-MRA-WL-XX 14 IPM12-C3-FWL-XXUS 11 IPM12-A8I-FWL-XXU 13 IPM12-C5-MRA-WL-XXU 14 IPM12-C4-FWL-XXS 11 IPM12-B3I-FWL-XX 13 IPM12-C6-MRA-WL-XX 14 IPM12-C4-FWL-XXUS 11 IPM12-B3I-FWL-XXU 13 IPM12-C6-MRA-WL-XXU 14 IPM12-C5-FWL-XXS 11 IPM12-B4I-FWL-XX 13 IPM12-D4-MRA-WL-XX 14 IPM12-C5-FWL-XXUS 11 IPM12-B4I-FWL-XXU 13 IPM12-D4-MRA-WL-XXU 14 IPM12-C6-FWL-XXS 11 IPM12-B5I-FWL-XX 13 IPM12-A3-FRA-WL-XX 15 IPM12-C6-FWL-XXUS 11 IPM12-B5I-FWL-XXU 13 IPM12-A3-FRA-WL-XXU 15 IPM12-D4-FWL-XXS 11 IPM12-D4I-FWL-XX 13 IPM12-A4-FRA-WL-XX 15 IPM12-D4-FWL-XXUS 11 IPM12-D4I-FWL-XXU 13 IPM12-A4-FRA-WL-XXU 15 IPM12-A3I-MWL-XX 12 IPM12-A3-MRA-WL-XX 14 IPM12-A5-FRA-WL-XX 15 IPM12-A3I-MWL-XXU 12 IPM12-A3-MRA-WL-XXU 14 IPM12-A5-FRA-WL-XXU 15 IPM12-A4I-MWL-XX 12 IPM12-A4-MRA-WL-XX 14 IPM12-A8-FRA-WL-XX 15 IPM12-A4I-MWL-XXU 12 IPM12-A4-MRA-WL-XXU 14 IPM12-A8-FRA-WL-XXU 15 IPM12-A5I-MWL-XX 12 IPM12-A5-MRA-WL-XX 14 IPM12-A12-FRA-WL-XX 15 IPM12-A5I-MWL-XXU 12 IPM12-A5-MRA-WL-XXU 14 IPM12-A12-FRA-WL-XXU 15 IPM12-A8I-MWL-XX 12 IPM12-A8-MRA-WL-XX 14 IPM12-A17-FRA-WL-XX 15 www.peigenesis.com Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-A17-FRA-WL-XXU 15 IPM12-B4-MRA-WL-XXUS 16 IPM12-C3-FRA-WL-XXUS 17 IPM12-B3-FRA-WL-XX 15 IPM12-B5-MRA-WL-XXS 16 IPM12-C4-FRA-WL-XXS 17 IPM12-B3-FRA-WL-XXU 15 IPM12-B5-MRA-WL-XXUS 16 IPM12-C4-FRA-WL-XXUS 17 IPM12-B4-FRA-WL-XX 15 IPM12-C3-MRA-WL-XXS 16 IPM12-C5-FRA-WL-XXS 17 IPM12-B4-FRA-WL-XXU 15 IPM12-C3-MRA-WL-XXUS 16 IPM12-C5-FRA-WL-XXUS 17 IPM12-B5-FRA-WL-XX 15 IPM12-C4-MRA-WL-XXS 16 IPM12-C6-FRA-WL-XXS 17 IPM12-B5-FRA-WL-XXU 15 IPM12-C4-MRA-WL-XXUS 16 IPM12-C6-FRA-WL-XXUS 17 IPM12-C3-FRA-WL-XX 15 IPM12-C5-MRA-WL-XXS 16 IPM12-D4-FRA-WL-XXS 17 IPM12-C3-FRA-WL-XXU 15 IPM12-C5-MRA-WL-XXUS 16 IPM12-D4-FRA-WL-XXUS 17 IPM12-C4-FRA-WL-XX 15 IPM12-C6-MRA-WL-XXS 16 IPM12-X8-MWL-6A-XX 18 IPM12-C4-FRA-WL-XXU 15 IPM12-C6-MRA-WL-XXUS 16 IPM12-X8-MWL-7-XX 18 IPM12-C5-FRA-WL-XX 15 IPM12-D4-MRA-WL-XXS 16 IPM12-X8-MWL-6AP-XX 18 IPM12-C5-FRA-WL-XXU 15 IPM12-D4-MRA-WL-XXUS 16 IPM12-X8-MWL-7P-XX 18 IPM12-C6-FRA-WL-XX 15 IPM12-A3-FRA-WL-XXS 17 IPM12-X8-FWL-6A-XX 19 IPM12-C6-FRA-WL-XXU 15 IPM12-A3-FRA-WL-XXUS 17 IPM12-X8-FWL-7-XX 19 IPM12-D4-FRA-WL-XX 15 IPM12-A4-FRA-WL-XXS 17 IPM12-X8-FWL-6AP-XX 19 IPM12-D4-FRA-WL-XXU 15 IPM12-A4-FRA-WL-XXUS 17 IPM12-X8-FWL-7P-XX 19 IPM12-A3-MRA-WL-XXS 16 IPM12-A5-FRA-WL-XXS 17 IPM12-X8-MRA-WL-6A-XX 20 IPM12-A3-MRA-WL-XXUS 16 IPM12-A5-FRA-WL-XXUS 17 IPM12-X8-MRA-WL-7-XX 20 IPM12-A4-MRA-WL-XXS 16 IPM12-A8-FRA-WL-XXS 17 IPM12-X8-MRA-WL-6AP-XX 20 IPM12-A4-MRA-WL-XXUS 16 IPM12-A8-FRA-WL-XXUS 17 IPM12-X8-MRA-WL-7P-XX 20 IPM12-A5-MRA-WL-XXS 16 IPM12-A12-FRA-WL-XXS 17 IPM12-X8-FRA-WL-6A-XX 21 IPM12-A5-MRA-WL-XXUS 16 IPM12-A12-FRA-WL-XXUS 17 IPM12-X8-FRA-WL-7-XX 21 IPM12-A8-MRA-WL-XXS 16 IPM12-A17-FRA-WL-XXS 17 IPM12-X8-FRA-WL-6AP-XX 21 IPM12-A8-MRA-WL-XXUS 16 IPM12-A17-FRA-WL-XXUS 17 IPM12-X8-FRA-WL-7P-XX 21 IPM12-A12-MRA-WL-XXS 16 IPM12-B3-FRA-WL-XXS 17 IPM12-A3-FM-XXX 22 IPM12-A12-MRA-WL-XXUS 16 IPM12-B3-FRA-WL-XXUS 17 IPM12-A3-FM-XXX 22 IPM12-A17-MRA-WL-XXS 16 IPM12-B4-FRA-WL-XXS 17 IPM12-A4-FM-XXX 22 IPM12-A17-MRA-WL-XXUS 16 IPM12-B4-FRA-WL-XXUS 17 IPM12-A4-FM-XXX 22 IPM12-B3-MRA-WL-XXS 16 IPM12-B5-FRA-WL-XXS 17 IPM12-A5-FM-XXX 22 IPM12-B3-MRA-WL-XXUS 16 IPM12-B5-FRA-WL-XXUS 17 IPM12-A5-FM-XXX 22 IPM12-B4-MRA-WL-XXS 16 IPM12-C3-FRA-WL-XXS 17 IPM12-A8-FM-XXX 22 M12 Part Numbers All M12 Series P/Ns 63 M12 Part Numbers www.peigenesis.com 64 All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-A8-FM-XXX 22 IPM12-A12-FMRA-XXX 23 IPM12-A17-FRAM-XXX 24 IPM12-A12-FM-XXX 22 IPM12-A17-FMRA-XXX 23 IPM12-B3-FRAM-XXX 24 IPM12-A12-FM-XXX 22 IPM12-A17-FMRA-XXX 23 IPM12-B3-FRAM-XXX 24 IPM12-A17-FM-XXX 22 IPM12-B3-FMRA-XXX 23 IPM12-B4-FRAM-XXX 24 IPM12-A17-FM-XXX 22 IPM12-B3-FMRA-XXX 23 IPM12-B4-FRAM-XXX 24 IPM12-B3-FM-XXX 22 IPM12-B4-FMRA-XXX 23 IPM12-B5-FRAM-XXX 24 IPM12-B3-FM-XXX 22 IPM12-B4-FMRA-XXX 23 IPM12-B5-FRAM-XXX 24 IPM12-B4-FM-XXX 22 IPM12-B5-FMRA-XXX 23 IPM12-C3-FRAM-XXX 24 IPM12-B4-FM-XXX 22 IPM12-B5-FMRA-XXX 23 IPM12-C3-FRAM-XXX 24 IPM12-B5-FM-XXX 22 IPM12-C3-FMRA-XXX 23 IPM12-C4-FRAM-XXX 24 IPM12-B5-FM-XXX 22 IPM12-C3-FMRA-XXX 23 IPM12-C4-FRAM-XXX 24 IPM12-C3-FM-XXX 22 IPM12-C4-FMRA-XXX 23 IPM12-C5-FRAM-XXX 24 IPM12-C3-FM-XXX 22 IPM12-C4-FMRA-XXX 23 IPM12-C5-FRAM-XXX 24 IPM12-C4-FM-XXX 22 IPM12-C5-FMRA-XXX 23 IPM12-C6-FRAM-XXX 24 IPM12-C4-FM-XXX 22 IPM12-C5-FMRA-XXX 23 IPM12-C6-FRAM-XXX 24 IPM12-C5-FM-XXX 22 IPM12-C6-FMRA-XXX 23 IPM12-D4-FRAM-XXX 24 IPM12-C5-FM-XXX 22 IPM12-C6-FMRA-XXX 23 IPM12-D4-FRAM-XXX 24 IPM12-C6-FM-XXX 22 IPM12-D4-FMRA-XXX 23 IPM12-X8-FRAM-6A-XX 24 IPM12-C6-FM-XXX 22 IPM12-D4-FMRA-XXX 23 IPM12-X8-FRAM-7-XX 24 IPM12-D4-FM-XXX 22 IPM12-X8-FMRA-6A-XX 23 IPM12-A3-FRAMRA-XXX 25 IPM12-D4-FM-XXX 22 IPM12-X8-FMRA-7-XX 23 IPM12-A3-FRAMRA-XXX 25 IPM12-X8-FM-6A-XX 22 IPM12-A3-FRAM-XXX 24 IPM12-A4-FRAMRA-XXX 25 IPM12-X8-FM-7-XX 22 IPM12-A3-FRAM-XXX 24 IPM12-A4-FRAMRA-XXX 25 IPM12-A3-FMRA-XXX 23 IPM12-A4-FRAM-XXX 24 IPM12-A5-FRAMRA-XXX 25 IPM12-A3-FMRA-XXX 23 IPM12-A4-FRAM-XXX 24 IPM12-A5-FRAMRA-XXX 25 IPM12-A4-FMRA-XXX 23 IPM12-A5-FRAM-XXX 24 IPM12-A8-FRAMRA-XXX 25 IPM12-A4-FMRA-XXX 23 IPM12-A5-FRAM-XXX 24 IPM12-A8-FRAMRA-XXX 25 IPM12-A5-FMRA-XXX 23 IPM12-A8-FRAM-XXX 24 IPM12-A12-FRAMRA-XXX 25 IPM12-A5-FMRA-XXX 23 IPM12-A8-FRAM-XXX 24 IPM12-A12-FRAMRA-XXX 25 IPM12-A8-FMRA-XXX 23 IPM12-A12-FRAM-XXX 24 IPM12-A17-FRAMRA-XXX 25 IPM12-A8-FMRA-XXX 23 IPM12-A12-FRAM-XXX 24 IPM12-A17-FRAMRA-XXX 25 IPM12-A12-FMRA-XXX 23 IPM12-A17-FRAM-XXX 24 IPM12-B3-FRAMRA-XXX 25 www.peigenesis.com Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-B3-FRAMRA-XXX 25 IPM12-A5F-SCFT 27 IPM12-B4F-SRFT-S-A 29 IPM12-B4-FRAMRA-XXX 25 IPM12-A8F-SCFT 27 IPM12-B5F-SRFT-S-A 29 IPM12-B4-FRAMRA-XXX 25 IPM12-A12F-SCFT 27 IPM12-D4F-SRFT-S-A 29 IPM12-B5-FRAMRA-XXX 25 IPM12-B3F-SCFT 27 IPM12-A3F-SRFT-S-B 29 IPM12-B5-FRAMRA-XXX 25 IPM12-B4F-SCFT 27 IPM12-A4F-SRFT-S-B 29 IPM12-C3-FRAMRA-XXX 25 IPM12-B5F-SCFT 27 IPM12-A5F-SRFT-S-B 29 IPM12-C3-FRAMRA-XXX 25 IPM12-C3F-SCFT 27 IPM12-A8F-SRFT-S-B 29 IPM12-C4-FRAMRA-XXX 25 IPM12-C4F-SCFT 27 IPM12-B3F-SRFT-S-B 29 IPM12-C4-FRAMRA-XXX 25 IPM12-C5F-SCFT 27 IPM12-B4F-SRFT-S-B 29 IPM12-C5-FRAMRA-XXX 25 IPM12-C6F-SCFT 27 IPM12-B5F-SRFT-S-B 29 IPM12-C5-FRAMRA-XXX 25 IPM12-D4F-SCFT 27 IPM12-D4F-SRFT-S-B 29 IPM12-C6-FRAMRA-XXX 25 IPM12-A3M-SRFT-S-A 28 IPM12-A3MRA-SCFT 30 IPM12-C6-FRAMRA-XXX 25 IPM12-A4M-SRFT-S-A 28 IPM12-A4MRA-SCFT 30 IPM12-D4-FRAMRA-XXX 25 IPM12-A5M-SRFT-S-A 28 IPM12-A5MRA-SCFT 30 IPM12-D4-FRAMRA-XXX 25 IPM12-A8M-SRFT-S-A 28 IPM12-A8MRA-SCFT 30 IPM12-X8-FRAMRA-6A-XX 25 IPM12-B3M-SRFT-S-A 28 IPM12-B3MRA-SCFT 30 IPM12-X8-FRAMRA-7-XX 25 IPM12-B4M-SRFT-S-A 28 IPM12-B4MRA-SCFT 30 IPM12-A3M-SCFT 26 IPM12-B5M-SRFT-S-A 28 IPM12-B5MRA-SCFT 30 IPM12-A4M-SCFT 26 IPM12-D4M-SRFT-S-A 28 IPM12-D4MRA-SCFT 30 IPM12-A5M-SCFT 26 IPM12-A3M-SRFT-S-B 28 IPM12-A3FRA-SCFT 31 IPM12-A8M-SCFT 26 IPM12-A4M-SRFT-S-B 28 IPM12-A4FRA-SCFT 31 IPM12-A12M-SCFT 26 IPM12-A5M-SRFT-S-B 28 IPM12-A5FRA-SCFT 31 IPM12-B3M-SCFT 26 IPM12-A8M-SRFT-S-B 28 IPM12-A8FRA-SCFT 31 IPM12-B4M-SCFT 26 IPM12-B3M-SRFT-S-B 28 IPM12-B3FRA-SCFT 31 IPM12-B5M-SCFT 26 IPM12-B4M-SRFT-S-B 28 IPM12-B4FRA-SCFT 31 IPM12-C3M-SCFT 26 IPM12-B5M-SRFT-S-B 28 IPM12-B5FRA-SCFT 31 IPM12-C4M-SCFT 26 IPM12-D4M-SRFT-S-B 28 IPM12-D4FRA-SCFT 31 IPM12-C5M-SCFT 26 IPM12-A3F-SRFT-S-A 29 IPM12-A3M-SRFT-3 32 IPM12-C6M-SCFT 26 IPM12-A4F-SRFT-S-A 29 IPM12-A4M-SRFT-3 32 IPM12-D4M-SCFT 26 IPM12-A5F-SRFT-S-A 29 IPM12-A5M-SRFT-3 32 IPM12-A3F-SCFT 27 IPM12-A8F-SRFT-S-A 29 IPM12-A8M-SRFT-3 32 IPM12-A4F-SCFT 27 IPM12-B3F-SRFT-S-A 29 IPM12-B3M-SRFT-3 32 M12 Part Numbers All M12 Series P/Ns 65 M12 Part Numbers www.peigenesis.com 66 All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-B4M-SRFT-3 32 IPM12-B4MRA-SRFT-3 34 IPM12-A17M-SC-3 36 IPM12-B5M-SRFT-3 32 IPM12-B5MRA-SRFT-3 34 IPM12-B3M-SC-3 36 IPM12-D4M-SRFT-3 32 IPM12-D4MRA-SRFT-3 34 IPM12-B4M-SC-3 36 IPM12-A3M-SRFT-4 32 IPM12-A3MRA-SRFT-4 34 IPM12-B5M-SC-3 36 IPM12-A4M-SRFT-4 32 IPM12-A4MRA-SRFT-4 34 IPM12-C3M-SC-3 36 IPM12-A5M-SRFT-4 32 IPM12-A5MRA-SRFT-4 34 IPM12-C4M-SC-3 36 IPM12-A8M-SRFT-4 32 IPM12-A8MRA-SRFT-4 34 IPM12-C5M-SC-3 36 IPM12-B3M-SRFT-4 32 IPM12-B3MRA-SRFT-4 34 IPM12-C6M-SC-3 36 IPM12-B4M-SRFT-4 32 IPM12-B4MRA-SRFT-4 34 IPM12-D4M-SC-3 36 IPM12-B5M-SRFT-4 32 IPM12-B5MRA-SRFT-4 34 IPM12-A3F-SC-3 37 IPM12-D4M-SRFT-4 32 IPM12-D4MRA-SRFT-4 34 IPM12-A4F-SC-3 37 IPM12-A3F-SRFT-3 33 IPM12-A3FRA-SRFT-3 35 IPM12-A5F-SC-3 37 IPM12-A4F-SRFT-3 33 IPM12-A4FRA-SRFT-3 35 IPM12-A8F-SC-3 37 IPM12-A5F-SRFT-3 33 IPM12-A5FRA-SRFT-3 35 IPM12-A12F-SC-3 37 IPM12-A8F-SRFT-3 33 IPM12-A8FRA-SRFT-3 35 IPM12-A17F-SC-3 37 IPM12-B3F-SRFT-3 33 IPM12-B3FRA-SRFT-3 35 IPM12-B3F-SC-3 37 IPM12-B4F-SRFT-3 33 IPM12-B4FRA-SRFT-3 35 IPM12-B4F-SC-3 37 IPM12-B5F-SRFT-3 33 IPM12-B5FRA-SRFT-3 35 IPM12-B5F-SC-3 37 IPM12-D4F-SRFT-3 33 IPM12-D4FRA-SRFT-3 35 IPM12-C3F-SC-3 37 IPM12-A3F-SRFT-4 33 IPM12-A3FRA-SRFT-4 35 IPM12-C4F-SC-3 37 IPM12-A4F-SRFT-4 33 IPM12-A4FRA-SRFT-4 35 IPM12-C5F-SC-3 37 IPM12-A5F-SRFT-4 33 IPM12-A5FRA-SRFT-4 35 IPM12-C6F-SC-3 37 IPM12-A8F-SRFT-4 33 IPM12-A8FRA-SRFT-4 35 IPM12-D4F-SC-3 37 IPM12-B3F-SRFT-4 33 IPM12-B3FRA-SRFT-4 35 IPM12-A3M-RF-SC-3 38 IPM12-B4F-SRFT-4 33 IPM12-B4FRA-SRFT-4 35 IPM12-A4M-RF-SC-3 38 IPM12-B5F-SRFT-4 33 IPM12-B5FRA-SRFT-4 35 IPM12-A5M-RF-SC-3 38 IPM12-D4F-SRFT-4 33 IPM12-D4FRA-SRFT-4 35 IPM12-A8M-RF-SC-3 38 IPM12-A3MRA-SRFT-3 34 IPM12-A3M-SC-3 36 IPM12-A12M-RF-SC-3 38 IPM12-A4MRA-SRFT-3 34 IPM12-A4M-SC-3 36 IPM12-B3M-RF-SC-3 38 IPM12-A5MRA-SRFT-3 34 IPM12-A5M-SC-3 36 IPM12-B4M-RF-SC-3 38 IPM12-A8MRA-SRFT-3 34 IPM12-A8M-SC-3 36 IPM12-B5M-RF-SC-3 38 IPM12-B3MRA-SRFT-3 34 IPM12-A12M-SC-3 36 IPM12-C3M-RF-SC-3 38 www.peigenesis.com Catalog Page All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-C4M-RF-SC-3 38 IPM12-A4F-FL-3 41 IPM12-A17F-PC-3 43 IPM12-C5M-RF-SC-3 38 IPM12-A5F-FL-3 41 IPM12-B3F-PC-3 43 IPM12-C6M-RF-SC-3 38 IPM12-A8F-FL-3 41 IPM12-B4F-PC-3 43 IPM12-D4M-RF-SC-3 38 IPM12-A12F-FL-3 41 IPM12-B5F-PC-3 43 IPM12-A3F-RF-SC-3 39 IPM12-A17F-FL-3 41 IPM12-C3F-PC-3 43 IPM12-A4F-RF-SC-3 39 IPM12-B3F-FL-3 41 IPM12-C4F-PC-3 43 IPM12-A5F-RF-SC-3 39 IPM12-B4F-FL-3 41 IPM12-C5F-PC-3 43 IPM12-A8F-RF-SC-3 39 IPM12-B5F-FL-3 41 IPM12-C6F-PC-3 43 IPM12-A12F-RF-SC-3 39 IPM12-C3F-FL-3 41 IPM12-D4F-PC-3 43 IPM12-B3F-RF-SC-3 39 IPM12-C4F-FL-3 41 IPM12-A3M-PC-S-3 44 IPM12-B4F-RF-SC-3 39 IPM12-C5F-FL-3 41 IPM12-A4M-PC-S-3 44 IPM12-B5F-RF-SC-3 39 IPM12-C6F-FL-3 41 IPM12-A5M-PC-S-3 44 IPM12-C3F-RF-SC-3 39 IPM12-D4F-FL-3 41 IPM12-A8M-PC-S-3 44 IPM12-C4F-RF-SC-3 39 IPM12-A3M-PC-3 42 IPM12-A12M-PC-S-3 44 IPM12-C5F-RF-SC-3 39 IPM12-A4M-PC-3 42 IPM12-A17M-PC-S-3 44 IPM12-C6F-RF-SC-3 39 IPM12-A5M-PC-3 42 IPM12-B3M-PC-S-3 44 IPM12-D4F-RF-SC-3 39 IPM12-A8M-PC-3 42 IPM12-B4M-PC-S-3 44 IPM12-A3M-FL-3 40 IPM12-A12M-PC-3 42 IPM12-B5M-PC-S-3 44 IPM12-A4M-FL-3 40 IPM12-A17M-PC-3 42 IPM12-C3M-PC-S-3 44 IPM12-A5M-FL-3 40 IPM12-B3M-PC-3 42 IPM12-C4M-PC-S-3 44 IPM12-A8M-FL-3 39 IPM12-B4M-PC-3 42 IPM12-C5M-PC-S-3 44 IPM12-A12M-FL-3 40 IPM12-B5M-PC-3 42 IPM12-C6M-PC-S-3 44 IPM12-A17M-FL-3 40 IPM12-C3M-PC-3 42 IPM12-D4M-PC-S-3 44 IPM12-B3M-FL-3 40 IPM12-C4M-PC-3 42 IPM12-A3F-PC-S-3 45 IPM12-B4M-FL-3 40 IPM12-C5M-PC-3 42 IPM12-A4F-PC-S-3 45 IPM12-B5M-FL-3 40 IPM12-C6M-PC-3 42 IPM12-A5F-PC-S-3 45 IPM12-C3M-FL-3 40 IPM12-D4M-PC-3 42 IPM12-A8F-PC-S-3 45 IPM12-C4M-FL-3 40 IPM12-A3F-PC-3 43 IPM12-A12F-PC-S-3 45 IPM12-C5M-FL-3 40 IPM12-A4F-PC-3 43 IPM12-A17F-PC-S-3 45 IPM12-C6M-FL-3 40 IPM12-A5F-PC-3 43 IPM12-B3F-PC-S-3 45 IPM12-D4M-FL-3 40 IPM12-A8F-PC-3 43 IPM12-B4F-PC-S-3 45 IPM12-A3F-FL-3 41 IPM12-A12F-PC-3 43 IPM12-B5F-PC-S-3 45 M12 Part Numbers All M12 Series P/Ns 67 M12 Part Numbers www.peigenesis.com 68 All M12 Series P/Ns Catalog Page All M12 Series P/Ns Catalog Page IPM12-C3F-PC-S-3 45 IPM12-A4-YSPLT-MFF 50 IPM12-C4F-PC-S-3 45 IPM12-A5-YSPLT-MFF 50 IPM12-C5F-PC-S-3 45 IPM12-A8-YSPLT-MFF 50 IPM12-C6F-PC-S-3 45 IPM12-B3-YSPLT-MFF 50 IPM12-D4F-PC-S-3 45 IPM12-B4-YSPLT-MFF 50 IPM12-A4M-PCRA 46 IPM12-B5-YSPLT-MFF 50 IPM12-A5M-PCRA 46 IPM12-D4-YSPLT-MFF 50 IPM12-A8M-PCRA 46 IPM12-A3-YSPLT-FMF 51 IPM12-B4M-PCRA 46 IPM12-A4-YSPLT-FMF 51 IPM12-B5M-PCRA 46 IPM12-A5-YSPLT-FMF 51 IPM12-D4M-PCRA 46 IPM12-A8-YSPLT-FMF 51 IPM12-A4M-PCRA-S 46 IPM12-B3-YSPLT-FMF 51 IPM12-A5M-PCRA-S 46 IPM12-B4-YSPLT-FMF 51 IPM12-A8M-PCRA-S 46 IPM12-B5-YSPLT-FMF 51 IPM12-B4M-PCRA-S 46 IPM12-D4-YSPLT-FMF 51 IPM12-B5M-PCRA-S 46 IPM12-CAP-M 52 IPM12-D4M-PCRA-S 46 IPM12-CAP-F 52 IPM12-A4F-PCRA 47 IPM12-CAP-M-CA 53 IPM12-A5F-PCRA 47 IPM12-CAP-F-CA 53 IPM12-A8F-PCRA 47 IPM12-CAP-M-PNL 54 IPM12-B4F-PCRA 47 IPM12-CAP-F-PNL 54 IPM12-B5F-PCRA 47 IPM12-D4F-PCRA 47 IPM12-A4F-PCRA-S 47 IPM12-A5F-PCRA-S 47 IPM12-A8F-PCRA-S 47 IPM12-B4F-PCRA-S 47 IPM12-B5F-PCRA-S 47 IPM12-D4F-PCRA-S 47 IPM12-X8M-PC-S 48 IPM12-X8F-PC-S 49 IPM12-A3-YSPLT-MFF 50 Corporate Headquarters, Philadelphia, PA European Headquarters & Production Facility, Southampton, UK North American Production Facility, South Bend, IN Production Facility, Zhuhai, China FilConn, Chandler, AZ PEI-Genesis has sales offices throughout the Americas, Europe and Asia. Visit www.peigenesis.com, call +1 800.675.1214 (North America), +44 (0) 23 8062 1260 (Europe), +86 756 7683 088 (Asia), +1 631.475.5050 (Rest of World), or email: sales@peigenesis.com. www.peigenesis.com | www.peigenesis.cn 69
IPM12-A8M-SCFT
物料型号: - M12系列,包括多种型号,如IPM12-A3M-SCFT、IPM12-A4M-SCFT等,具体型号依据编码和接触点数量而定。

器件简介: - M12系列连接器是一种适用于多种工业应用的电子连接器,具有高防护等级(IP67),并提供多种配置选项,如直型、直角型、带屏蔽或不带屏蔽等。

引脚分配: - 引脚分配依据编码(A、B、C、D)和接触点数量(如3针、4针、5针等),具体配置可在订购时指定。

参数特性: - 包括额定电流、电压、线规(AWG)、线径(mm2)、绝缘电阻、接触电阻等。例如,3针配置可能支持4A电流,250V电压。

功能详解: - M12连接器提供多种安装方式,如焊接、螺钉固定等,适用于不同的应用场景。同时,还提供现场可接线组件,方便用户根据需要进行定制。

应用信息: - 适用于工业自动化、交通运输、医疗设备等领域,特别是在需要高防护等级和可靠性的应用中。

封装信息: - 提供多种封装类型,包括直型、直角型连接器,以及PCB板安装和面板安装选项。还提供Y型分流器和保护帽等配件。
