AAA3MBYYLP

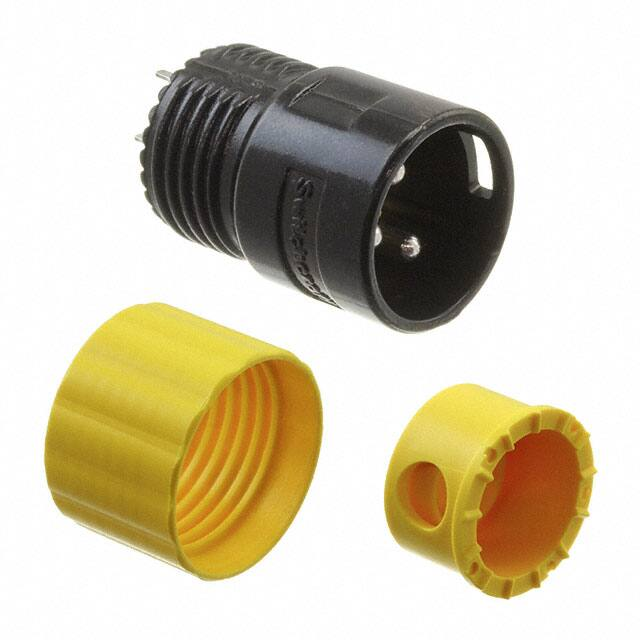

HANDLE, BLACK AAA 3 M L P STRAIN RELIEF BLACK SERIES: Q-G CONNECTOR QT3MBZ CONNECTOR BLACK # OF CONTACT PINS: 3 1.40 35.6 GENDER: MALE 0.82 20.9 FINISH: BLANK - NICKEL CONNECTOR, & GREEN INSERT B - BLACK CONNECTOR, & BLACK INSERT AAA3MBLP SHOWN 0.28 7.1 CONTACT PIN PLATING: BLANK - SILVER AU - GOLD 0.75 18.9 HANDLE: BLANK - IF HANDLE & STRAIN RELIEF ARE BOTH BLACK B - BLACK, IF HANDLE & STRAIN RELIEF ARE DIFFERENT COLORS W - WHITE G - GREEN Y - YELLOW 0.71 FLAT 18.0 STRAIN RELIEF: BLANK - IF HANDLE & STRAIN RELIEF ARE BOTH BLACK B - BLACK, IF HANDLE & STRAIN RELIEF ARE DIFFERENT COLORS W - WHITE G - GREEN Y - YELLOW 0.215 CABLE HOLE 5.46 0.60 15.1 0.78 19.7 0.55 14.0 CUSTOMER DRAWING NOTES: 1. CONNECTOR, HANDLE AND STRAIN RELIEF ARE SHIPPED UNASSEMBLED ONE EACH PER BAG. UNLESS OTHERWISE SPECIFIED 2. MATERIALS: HANDLE PLASTIC - THERMOPLASTIC STRAIN RELIEF - THERMOPLASTIC HOUSING - ZINC ALLOY, NICKEL PLATED OR BLACK INSULATOR - THERMOPLASTIC, GREEN OR BLACK GROUND TERMINAL - SPECIAL COPPER ALLOY CONTACT PINS - COPPER ALLOY, SILVER PLATED OR GOLD PLATED 3. THESE PRODUCTS ARE RoHS COMPLIANT. THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. STAR SYMBOL DENOTES CRITICAL DIMENSION 1. ALL DIMENSIONS IN INCHES - TWO PLACE DECIMALS 0.01 - THREE PLACE DECIMALS 0.005 - ANGLES 1 - ALL DIA. CONCENTRIC WITHIN 0.005 T.I.R. 2. FEATURES ON THE SAME CENTERLINE MUST BE ALIGNED WITHIN 0.002 A REV 28044 ECO NUMBER 07-06-18 DATE REVISIONS PC BY TJK APVD SIZE SolidWorks CAD File MULT FINISH DATE DRAWN 12-13-17 NAME B LBS/M TEMPER MATERIAL SPEC No. FIRST USED ON 3. REMOVE ALL BURRS DO NOT SCALE DRAWING WIDTH BY SPEC No. SCALE 1.5:1 CHKD SRC SRC 12-13-17 APVD SRC 12-13-17 MALE XLR, LOW PROFILE, RoHS RIGHT ANGLE SHEET PART No. 1 OF 2 AAA3M_LP_SERIES REV A SEE NOTE 2 SEE NOTE 1 SEE NOTES 3 & 4 SEE NOTES 5, 6, & 7 ASSEMBLY NOTES: 1. PARTS AS RECEIVED. 2. PUSH STRAIN RELIEF INTO HANDLE AS SHOWN. 3. FEED CABLE THROUGH HOLE IN STRAIN RELIEF. (3 CONDUCTOR 24 OR 26 GA. WITH OR WITHOUT SHIELD 0.145 TO 0.205 O.D.) 4. STRIP WIRES MINIMUM LENGTH AS NECESSARY (TWIST AND INSULATE SHIELD IF NECESSARY). 5. SOLDER WIRES TO CONTACT PINS AND GROUND TERMINAL. 6. PUSH HANDLE AND STRAIN RELIEF UP TO CONNECTOR THREAD, TAKE CARE TO ORIENTATE THE WIRE EXIT AREA TO YOUR LIKEABLE POSITION. 7. CAREFULLY SCREW THE HANDLE UNTIL TIGHT. CUSTOMER DRAWING SCALE 1.5:1 DATE DRAWN 5-24-18 DRAWN BY SRC SolidWorks CAD File SHEET PART No. 2 OF 2 AAA3M_LP_SERIES B REV A
