EPL.0S.302.HLN

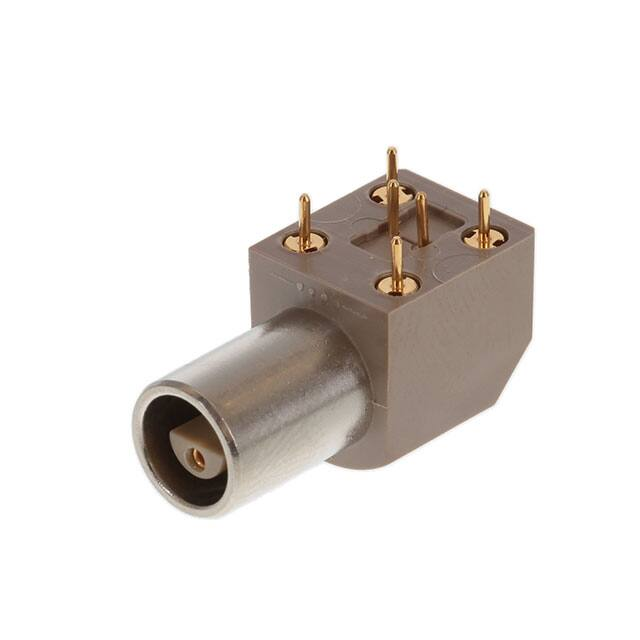

EPL.0S.302.HLN www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 0S Termination type Female print 90° PCB IP rating 50 AWG wire size 30.00 - 22.00 PCB Altium Pattern Cable Ø 0.00 - 0.00 mm PCB KiCad Pattern Status active Catalog Matching parts FFA.0S.302.CLAC22 Download Request a quote PCB Eagle Pattern TECHNICAL DETAILS Mechanics Shell Style/Model EPL*: Elbow receptacle for printed circuit (solder or screw fixing) Keying Hermaphroditic keying (half moon insert) with female pin 1 Housing Material PPS (Polyphenylene) shell, other pieces nickel plated [SAE AMS QQ N 290] brass Weight 9.42 g Performance Configuration 0S.302 : 2 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current Specifications Contact Type: Print (straight) Contact Dia.: 0.9 mm (0.0354in) R (max): 4.8 mOhm Test Voltage(kV rms) 1.2 Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +220°C LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/2 Humidity (max): 144 hr DRAWINGS Dimensions A D H I K L N mm. 9 14.5 6.9 12.7 13.2 25 11.6 in. 0,35 0,57 0,27 0,50 0,52 0,98 0,46 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/2
