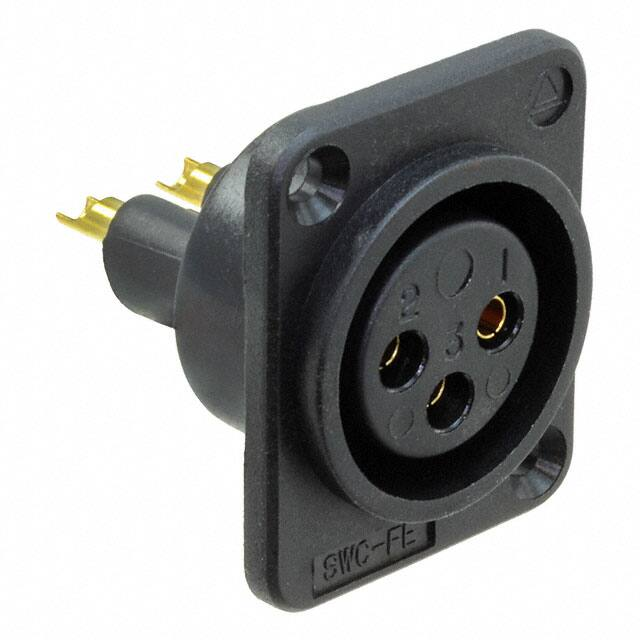

PD3FSC1AU

13.5 0.53 2.8 0.11 TERMINAL PLATING PD3FSC1 FRONT MOUNT SILVER PD3FSC2 REAR MOUNT SILVER PD3FSC3 FRONT MOUNT SILVER PD3FSC1AU FRONT MOUNT GOLD PD3FSC2AU REAR MOUNT GOLD PD3FSC3AU FRONT MOUNT GOLD PART NUMBER 24 0.945 24.5 0.965 5 0.20 82° RECOMMENDED PANEL CUT-OUT PD3FSC1 FRONT MOUNT SECTION A-A SCALE 4 : 1 MOUNTING STYLE SEE SECTION A-A 19 0.748 3.5 0.138 (2) PLACES 23.2 0.91 2.4 0.094 19 0.748 8 0.315 2.3 0.09 9.3 0.37 PD3FSC2 REAR MOUNT SECTION A-A SCALE 4 : 1 20 0.79 4 0.157 19.8 0.780 15.5 0.610 24.5 0.965 31.8 1.25 21.3 0.84 3.2 0.13 A 5 0.20 5.9 0.23 A 2.5 0.098 26.3 1.04 CUSTOMER DRAWING 82° THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. PD3FSC3 FRONT MOUNT NOTES: UNLESS OTHERWISE SPECIFIED 1. ALL DIMENSIONS IN INCHES SECTION A-A SCALE 4 : 1 1. MATERIALS: HOUSING - THERMOPLASTIC, BLACK PINS - COPPER ALLOY (SEE TABLE FOR FINISH) 2. THESE PRODUCTS ARE RoHS COMPLIANT. SIZE REV 22118 ECO NUMBER 1/14/98 DATE REVISIONS RS BY - TWO PLACE DECIMALS 0.02 - THREE PLACE DECIMALS 0.005 4/27/10 DO NOT SCALE DRAWING SolidWorks CAD File NAME TEMPER BY RS SPEC No. SCALE 2:1 CHKD RS 4/27/10 APVD TJK 4/28/10 PLASTIC PANEL MOUNT QG CONNECTORS, SOLDERCUP, RoHS B LBS/M MATERIAL SPEC No. FIRST USED ON TJK APVD MULT FINISH DATE DRAWN A WIDTH SHEET PART No. 1 OF PD3FSC SERIES 1 REV A
