EEG.0B.305.CLL

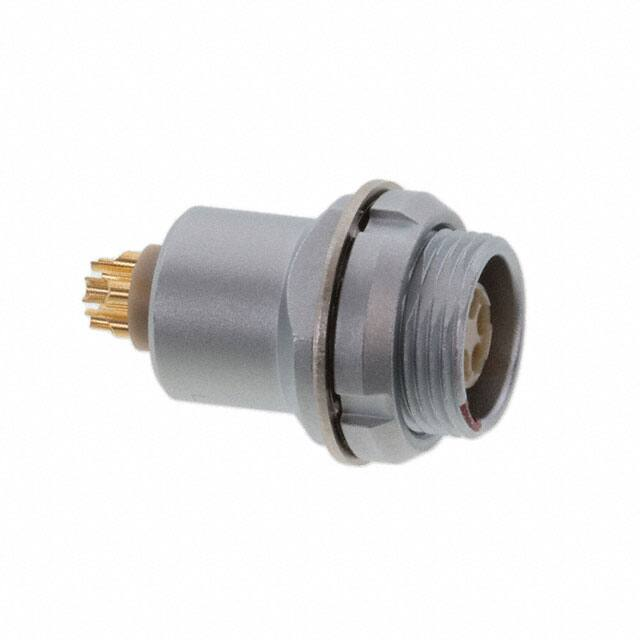

EEG.0B.305.CLL www.lemo.com SUMMARY # Wires Low voltage 5 Image is for illustrative purpose only Series 0B Termination type Female solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.0B.305.CLAD52Z Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EE*: Fixed receptacle, nut fixing (back panel mounting) Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 5.15 g Performance Configuration 0B.305 : 5 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 6.5 Amps Specifications Contact Type: Solder Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 6.1 mOhm Vtest (contact-shell): 700 V (AC), 1000 V (DC) Vtest (contact-contact): 1000 V (AC), 1400 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr 12NC part number: 4022.438.33673 DRAWINGS Dimensions A B E L M N P S1 S2 e mm. 12 12.5 2.4 20.7 2.5 19.1 6.3 8.2 9 M9x0.6 in. 0,47 0,49 0,09 0,81 0,10 0,75 0,25 0,32 0,35 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.05.T22.051QGZE TPR (medical) Grey CMN.05.T28.029PGCE PVC GREY CMN.05.T28.029PGZE CMN.05.T28.029PNCE Grey PVC Black 150250 PVC Grey 50090 PVC Black 50140 PVC Grey 5050 PVC Black CMN.05.T28.029PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
