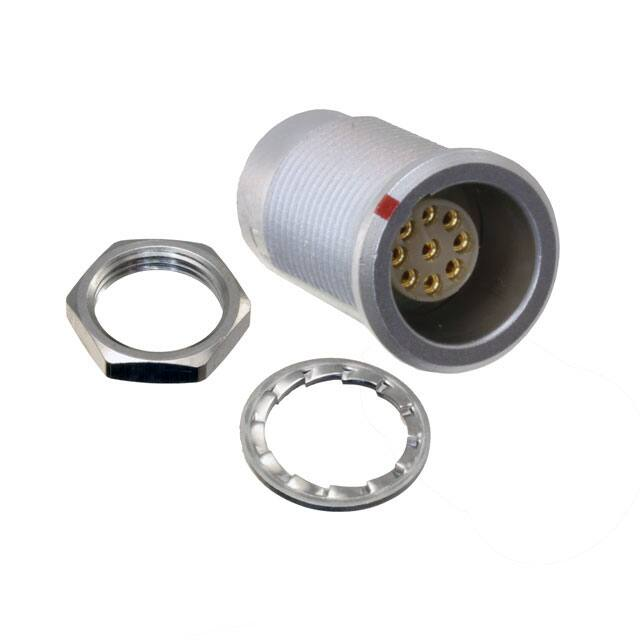

EGA.0B.309.CLL www.lemo.com SUMMARY # Wires Low voltage 9 Image is for illustrative purpose only Series 0B Termination type Female solder IP rating 50 AWG wire size 34.00 - 28.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGA.0B.309.CLAD52 Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 2 keys (alpha=30, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 4.44 g Performance Configuration 0B.309 : 9 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 2 Amps Specifications Contact Type: Solder Contact Dia.: 0.5 mm (0.02in) Bucket Dia.: 0.45 mm (0.018in) Max. Solid Conductor: 0.09 mm^2 (AWG 28) Max. Stranded Conductor: 0.09 mm^2 (AWG 28) R (max): 8.7 mOhm Vtest (contact-shell): 500 V (AC), 710 V (DC) Vtest (contact-contact): 600 V (AC), 850 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 10 12.5 7 20.7 1.2 19.1 8.2 11 M9x0.6 in. 0,39 0,49 0,28 0,81 0,05 0,75 0,32 0,43 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.09.T28.050CNQZ CMN.09.T28.051PGZE Grey CMN.09.T28.051PNZE CMN.09.T28.051QGZE TPR (medical) Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
