HGP.0E.304.CLLPV

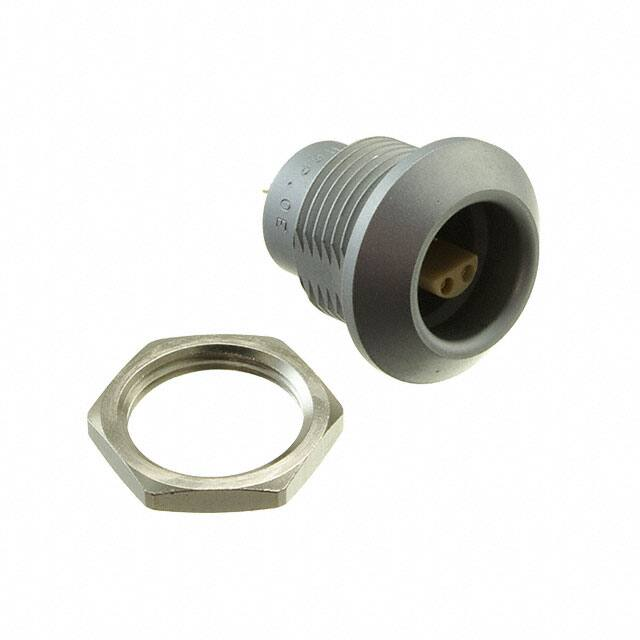

HGP.0E.304.CLLPV www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 0E Termination type Female solder IP rating 68 AWG wire size 32.00 - 24.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FFA.0E.304.CLAC40 Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model HGP*: Fixed receptacle, nut fixing, watertight or vacuum-tight Keying Hermaphroditic keying (half moon insert) with female pin 1 Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant PV : Watertight / Vacuum-tested Weight 13.80 g Performance Configuration 0E.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 7 Amps Specifications Contact Type: Solder Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.6 mm (0.024in) Max. Solid Conductor: 0.25 mm^2 (AWG 24) Max. Stranded Conductor: 0.14 mm^2 (AWG 26) R (max): 6.1 mOhm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest: 1060 V (AC), 1500 V (DC) Others Endurance (Shell): 5000 mating cycles Temp (min / max): -20°C / +100°C Humidity (max): 1000 hr Pressure: 60 bars DRAWINGS Dimensions A B E L M S1 S3 e mm. 18 19.5 5.5 23.5 4 12.5 17 M14x1.0 in. 0,71 0,77 0,22 0,93 0,16 0,49 0,67 RECOMMENDED BY LEMO LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Tools Cables CMN.04.T28.031PGCE PVC CMN.04.T28.031PGZE CMN.04.T28.031PNCE GREY Grey PVC Black CMN.04.T28.031QGC TPR Grey 140250 PVC Grey 40080 PVC Black 40086 PVC Blue 40140 PVC Black 40240 PTFE White 40260 PVC Black 4041 PVC Grey 4050 PVC Black 4080 PVC Grey 417920 PVC Grey 4260 PTFE White 4280 PVC Black 80080 PVC Grey 80082 PVC Red 80084 PVC Black CTR.75.030.121870G PVC Grey CMN.04.T28.031PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
