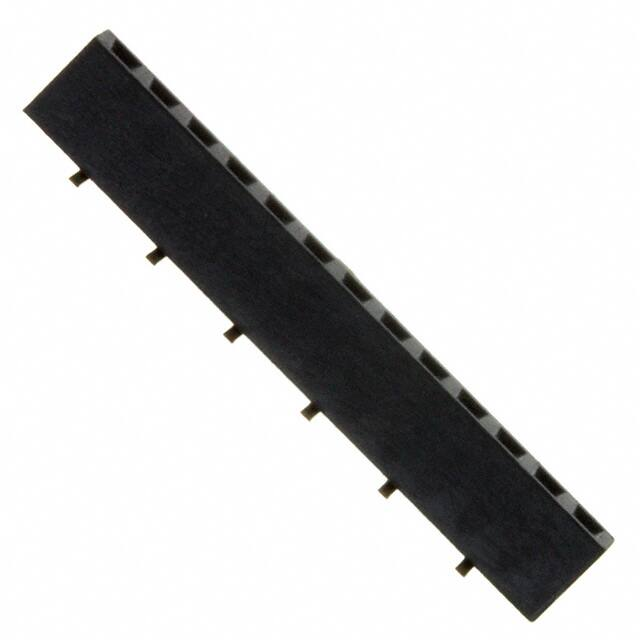

PPPN131BFLD

A No. of 1 B C D E WI-0901 DIMENSIONS Contacts A B 4 6.00 8.50 5 8.00 10.50 6 10.00 7 SPECIFICATIONS Current Rating: Insulator Resistance: 1 Amp 12.50 Contact Resistance: 20 milli Ohm Max. 12.00 14.50 8 14.00 16.50 Dielectric Withstanding: Operating Temperature: Max. Processing Temp: 500 VAC -40 Degrees C. to +105 Degrees C. 230ß for 30~60 seconds (260ß for 10 seconds) Contact Material: Insulator Material: Phosphor Bronze. Polyester,UL 94V-0 Standard: Nylon-6T Contact Finish: Selective Plating, Gold/Tin 9 16.00 18.50 10 18.00 20.50 11 20.00 22.50 12 22.00 24.50 13 24.00 26.50 14 26.00 28.50 15 28.00 30.50 16 30.00 32.50 17 32.00 34.50 18 34.00 36.50 19 36.00 38.50 20 38.00 40.50 21 40.00 42.50 22 42.00 44.50 23 44.00 46.50 24 46.00 48.50 25 48.00 50.50 NO. 1 D TYPE 5000 Mega Ohms min. 1 C TYPE N0. 1 0.83 2.00 2 4.00 2 4.30 0.33 0.10 2.00 3.60 A •+-0.10 B •+-0.20 3 SULLINS 801 E. Mission Rd. San Marcos, CA 92069 GENERAL TOLERANCE XX. •+XXX. •+X. •+- 0.20 .XXX •+.X •+- 0.10 X Degree •+- .XX •+- 0.05 .X Degree •+- A SCALE UNIT 3 NTS DRAWN DATE MM CHECK DATE APPROVE DATE SIZE B C DWG. NO. PARTS NO. T0020 REV. TITLE SHEET PPPNxx1BFLC PPPNxx1BFLD D E FM-0524
