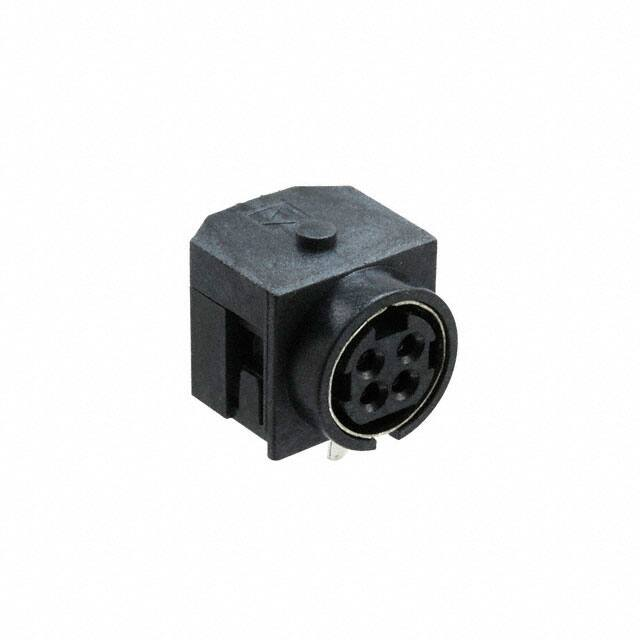

KPJXHT-4S

Material and Finish 9.0 15.0 Ø3.0 4.0 1 Body: High Temperature, Thermoplastic, UL94V-0 Rated Color: Black 2 3 Ø12.8 15.0 14.0 Contacts: Brass, Tin Plated Inner Shield: Copper Alloy, Tin Plated 4 Electrical Characteristics 2.0 Contact Rating (Per Pin): 7.5A Max. @ 48V DC 3.2 Insulation Resistance: 50 Megohms Min. at 250V DC 0.40±0.2 4-0.30±0.2 4-2.00 2-Ø1.50 Dielectric Withstanding Voltage: 500V AC RMS for 1 Min. 5.5 1.80 7.5 5.0 Contact Resistance: 30 milliohms Max. 11.0 14.65 Mechanical Characteristics Operating Temperature: -40°C to 85°C 5.50 7.50 2.2x1.0 Ø1.70 Face Detail 1 4-0.6x2.7 5.80 3 4 1.75 2 2 3.0 2.30 4 1 2 5.8 2.90 1.25 3 3.00 3.8 4 1 2.5 Note: Recommended for use with Kycon KPPX plug. 3.60 3 11.00 5.00 14.65 KYCON, Inc. 305 Digital Drive, Morgan Hill, CA 95037 (408)494-0330 17.0 Ø1.6 3.60 3.5 Tolerances Recommended PCB Layout (Bottom View) R RoHS COMPLIANT REV. DATE DESCRIPTION REV. BY CHK. BY DRAWN BY DATE A5 A6 A7 A8 A9 A10 04/04/12 01/28/13 09/18/15 02/26/16 08/20/18 10/05/18 ECO #12-011 ECO #13-006 ECO #15-010 ECO #16-005 ECO #18-034 ECO #18-051 S. Vien S. Vien C. Kelleher C. Kelleher G. Serrato G. Serrato P. DalCanto P. DalCanto W. Cook W. Cook D. Shehan D. Shehan H. MA 5/10/05 UNITS mm KPJXHT-4S R E140125 DC Power Jack, RoHS compliant 4 Position, Non-Shielded, High Temperature C US LR78160 X.X ± 0.35 X.XX ± 0.25 Unless Stated Otherwise
