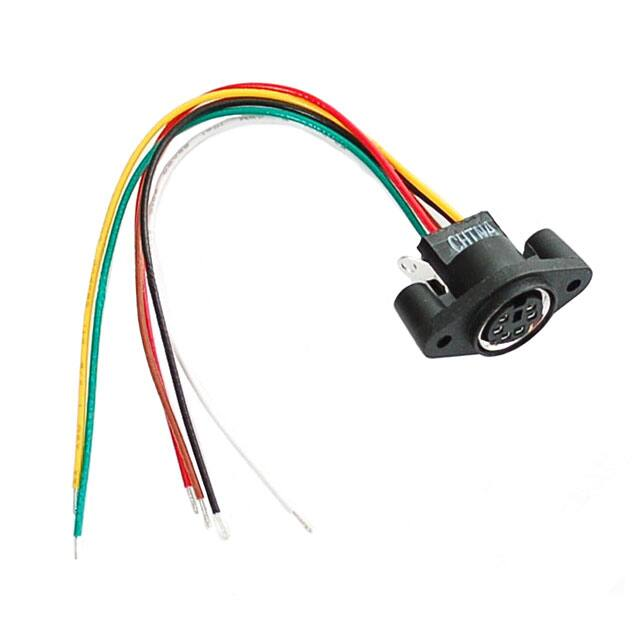

date 03/07/2012 page 1 of 3 SERIES: MD-XXPL100 │ DESCRIPTION: MINI DIN CONNECTOR FEATURES • panel mount • 10cm lead wires • 3~8 pins RoHS PART NUMBER KEY MD - XX PL100 Base Number Pin Options 30 = 3 pins 40 = 4 pins 50 = 5 pins 60 = 6 pins 80 = 8 pins SPECIFICATIONS parameter conditions/description min max 100 12 rated input voltage rated input current typ at 100 Vac at 12 Vdc contact resistance insulation resistance at 250 Vdc voltage withstand for 1 minute Vac Vdc 1 2 A A 30 mΩ 50 insertion force units MΩ 1 250 Vac 4.5 kg withdrawl force 0.8 3 kg operating temperature -40 85 °C life 1,000 cui.com cycles CUI Inc │ SERIES: MD-XXPL100 │ DESCRIPTION: MINI DIN CONNECTOR date 03/07/2012 │ page 2 of 3 MECHANICAL DRAWINGS units: mm[inches] TOLERANCE: ±0.2mm MATERIAL PLATING earth terminal brass tin contact terminals (1~8) phosphor bronze tin wire AWG #26 plastic PBT 14.7 0.579 9.5 0.374 25.0 0.984 5 87 100.0 3.937 10 1.5 0.059 19.0 0.748 4.0 0.157 (Strip Length) 6 4 3 2 1 14.0 0.551 12.0 0.472 2.0 0.079 2.1 0.083 (2 PLCS) MD-30PL100 2 3 MD-40PL100 4 1 MD-50PL100 4 5 3 2 6 2 3 1 MD-60PL100 1 MD-80PL100 5 4 3 2 1 5 87 6 4 3 2 1 PIN Wire Color Wire Color Wire Color Wire Color Wire Color 1 black black brown brown brown 2 green green black white white 3 orange yellow green black black red yellow green blue red yellow green red yellow 4 5 6 7 orange 8 red cui.com CUI Inc │ SERIES: MD-XXPL100 │ DESCRIPTION: MINI DIN CONNECTOR date 03/07/2012 │ page 3 of 3 REVISION HISTORY rev. description date 1.0 initial release 02/23/2006 1.01 new template applied 03/07/2012 The revision history provided is for informational purposes only and is believed to be accurate. Headquarters 20050 SW 112th Ave. Tualatin, OR 97062 800.275.4899 Fax 503.612.2383 cui.com techsupport@cui.com CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website. CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
