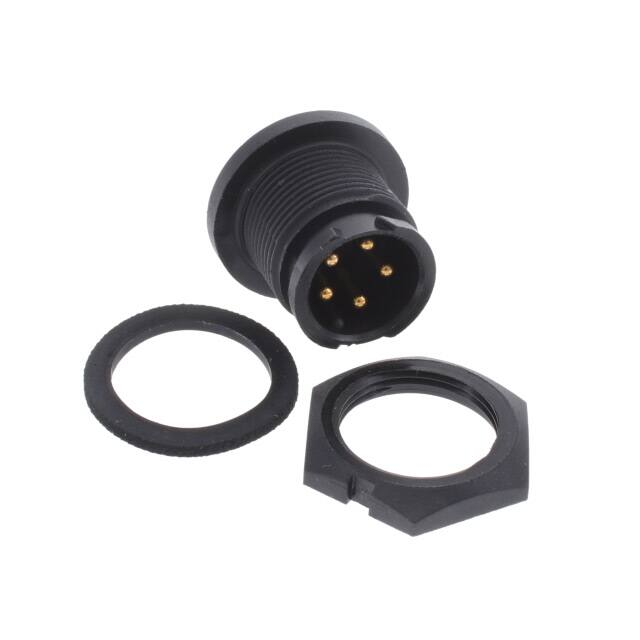

W17984-5PG-P-300

ASS'Y P/N B NOTES: 1. PANEL CONNECTORS TO BE PACKED IN PARTITION BOX, 100 PC PER BOX HEX NUT AND GASKET TO BE BULK PACKED IN A SEPARATE BAG FROM PANEL ASSEMBLY PACKAGE. a) BOX LABELED WITH CXA PART NUMBER, QUANTITY, LOT # AND DATE CODE AS SHOWN 2. CONTACTS ARE ASSEMBLED INTO PANEL CONNECTOR. 3. SEE DRAWING HPMCSTD FOR HOLE PATTERN. 4. ALL DIMENSIONS ARE REFERENCE EXCEPT THOSE WITH A TOLERANCE P/N: W17984-XPG-P-300 CONXALL QTY: Lot: Date Code: NO. OF CONTACTS KEY STYLE W17984-5PG-P-300 5 #26 A-KEY W17984-6PG-P-300 6 #26 B-KEY W17984-7PG-P-300 7 #26 A-KEY .640 16.3 .140 3.6 .401±.003 10.2±0.1 .050 1.3 .545 13.8 .163±.015 4.1±0.4 CUSTOMER PRINT .020 0.5 .620 15.7 ACROSS FLATS .430±.003 10.9±0.1 (5-7) #26 PIN CONTACTS, PC TAIL MAT'L: GOLD PLATED COPPER ALLOY RECOMMENDED PANEL CUT-OUT 7/16-28 UNEF-2A MOD. THREAD HEX NUT MAT'L: UV PBT, BLACK GASKET MAT'L: NEOPRENE, BLACK .393 10 FLAT 1 1 1 6 PANEL CONNECTOR, MALE MAT'L: UV PBT, BLACK 6 7 PART NUMBER: 5 2 W17984-XPG-P-300 .625 15.9 2 2 5 5 3 3 4 FACE VIEW W17984-5PG-P-300 5 POSITION A-KEY 4 FACE VIEW FACE VIEW W17984-6PG-P-300 6 POSITION B-KEY W17984-7PG-P-300 7 POSITION A-KEY 6 1 3 4 6 1 1 CUSTOMER APPROVAL 5 2 2 5 2 5 7 4 3 WIRE VIEW W17984-5PG-P-300 4 4 3 WIRE VIEW W17984-6PG-P-300 3 WIRE VIEW W17984-7PG-P-300 THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS UNLESS INDICATED RoHS COMPLIANT B A MA 11-09-20 NUMBER OF CONNECTORS PER BOX WAS 200 PER ECR 9548 MA 08-10-20 RELEASED PER PDR 18004-2 JGK 8/14/19 REV. INIT. DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX DRAWING CREATED FOR PDR #18004 DESCRIPTION ORIG. DRAWN BY: DATE: 8/14/19 JGK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE NTS B FILE: W17984-XPG-P-300 SHEET 1 OF 1 DIRECTORY: SLW PANEL MOUNT ASSEMBLY (5-7) #26 PIN CONTACTS, PC TAIL INSTA-CLICK™ MICRO-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: W17984-XPG-P-300 REV B
