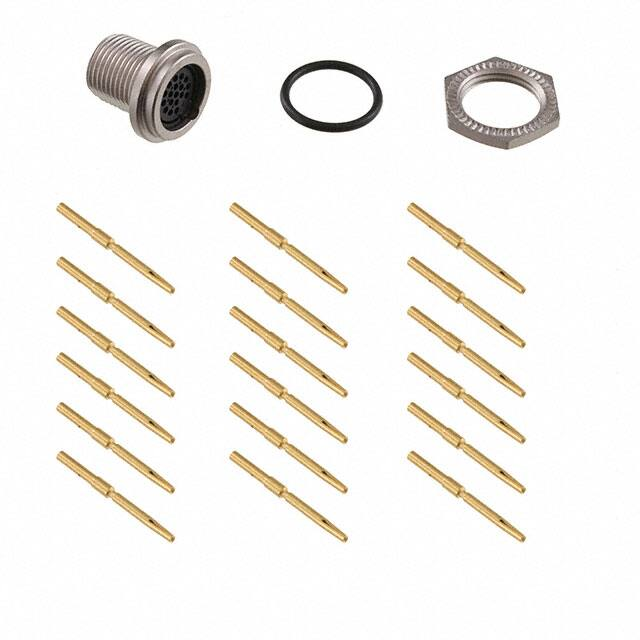

SF7980-18SG-300

NOTES: 1. CRIMP CONTACTS SUPPLIED UNASSEMBLED AND WITHOUT EPOXY BACKING. 2. REFER TO DRAWING HPSFMISTD FOR CONTACT PATTERNS. 3. HEX-NUT TORQUE: 10-12 IN-LB. 4. DIMENSIONS ARE REFERENCE ONLY, IN INCHES [mm], WITHIN ±0.015 UNLESS OTHERWISE NOTED. O-RING MAT'L: ELASTOMER, BLACK PANEL-MOUNT CONNECTOR PART NUMBERS: .051 1.3 REF (WHEN ASSEMBLED) S F 7 9 8 X - X S G - 3XX CONTACTS, CRIMP MAT'L: COPPER ALLOY, GOLD PLATED EPOXY BACKING: 3ES = WITH EPOXY 300 = WITHOUT EPOXY # OF CONTACTS: 9 - 18 HEX-NUT MAT'L: COPPER ALLOY, NICKEL PLATED CONTACTS STYLE: 0 = CRIMP 2 = SOLDER 4 = PC TAIL HOUSING MAT'L: COPPER ALLOY, NICKEL PLATED CRIMP CONTACTS CUSTOMER PRINT SF7980-18SG-300 SHOWN .812 20.6 REF ACROSS FLATS KEY .574 14.6 REF D-FLAT SF7982-18SG-300 SHOWN KEY .141 3.6 REF CONTACTS, SOLDER MAT'L: COPPER ALLOY, GOLD PLATED .938 23.8 FACE VIEW .870 22.1 REF .826 21 REF WIRING END .188 4.8 MAXIMUM PANEL THICKNESS SF7982-18SG-300 SHOWN SOLDER CONTACTS PART NUMBER: SF798X-XSG-3XX SF7982-18SG-300 SHOWN .345 8.8 REF .140 3.6 REF .582±.003 14.8±0.1 CONTACTS, CRIMP MAT'L: COPPER ALLOY, GOLD PLATED CUSTOMER APPROVAL .020±.001 0.5±0.03 TYP .610±.003 15.5±0.1 RECOMMENTED PANEL CUT-OUT PC TAIL CONTACTS SF7984-18SG-3ES SHOWN THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: RoHS COMPLIANT 0A PNK REV. INIT. 1-30-18 DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX DRAWING CREATED PER PDR17011 DESCRIPTION ORIG. DRAWN BY: PNK DATE: 1-30-18 CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE NTS SIZE B FILE: SF798X-XSG-3XX_CD SHEET 1 OF 1 DIRECTORY: SLW PANEL-MOUNT CONNECTOR (9-18) #26 SOCKET CONTACTS SHIELDED MINI-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: SF798X-XSG-3XX REV 0A
