EGG.3B.307.CLL

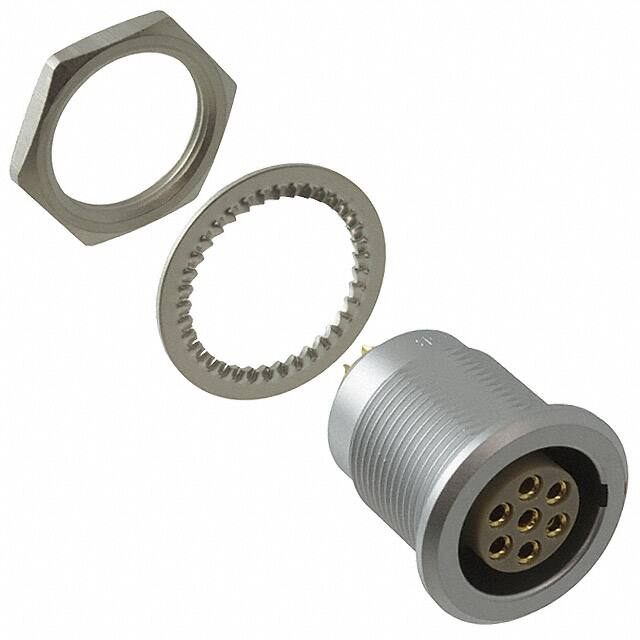

EGG.3B.307.CLL www.lemo.com SUMMARY # Wires Low voltage 7 Image is for illustrative purpose only Series 3B Termination type Female solder IP rating 50 AWG wire size 24.00 - 16.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.3B.307.CLAD10 Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 27.22 g Performance Configuration 3B.307 : 7 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 15 Amps Specifications Contact Type: Solder Contact Dia.: 1.6 mm (0.063in) Bucket Dia.: 1.4 mm (0.055in) Max. Solid Conductor: 1 mm^2 (AWG 16) Max. Stranded Conductor: 1 mm^2 (AWG 18) R (max): 3.5 mOhm Vtest (contact-shell): 1250 V (AC), 1770 V (DC) Vtest (contact-contact): 1700 V (AC), 2400 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 22 25 11.5 30.7 2 28.1 16.5 22 M18x1.0 in. 0,87 0,98 0,45 1,21 0,08 1,11 0,65 0,87 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.07.T18.070PGZE Grey CMN.07.T18.070PNZE CMN.07.T20.062PGZE Grey CMN.07.T20.062PNZE CMN.07.T20.062QGZE TPR (medical) Grey CMN.07.T26.037QGZE TPR (medical) Grey CMN.07.T28.044PGZE Grey CMN.07.T28.044PNZE 270250 PVC Grey 370500 PVC Grey 70140 PVC Grey 7041 PVC Grey 7050 PVC Black 717920 PVC Grey CTR.75.030.121875G PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
