PCA.0E.304.CLLC40

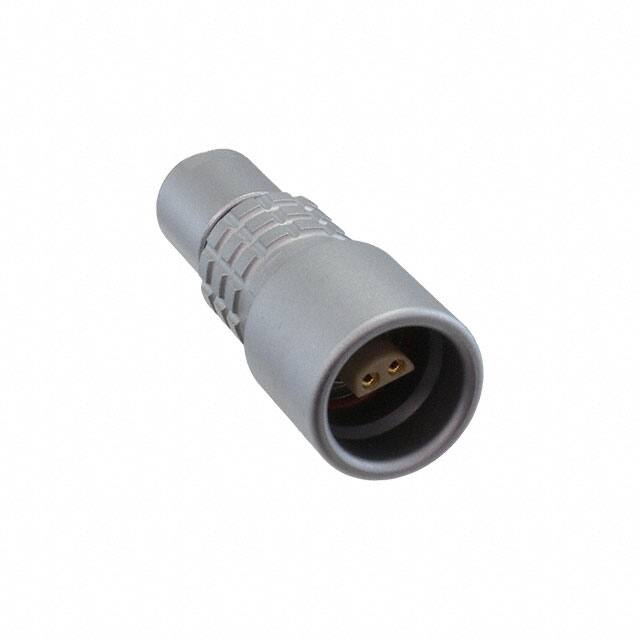

PCA.0E.304.CLLC40 www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 0E Termination type Female solder IP rating 68 AWG wire size 32.00 - 24.00 Cable Ø 3.60 - 4.00 mm Status active Matching parts FFA.0E.304.CLAC40 Download Request a quote Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PCA*: Free receptacle, cable collet Keying Hermaphroditic keying (half moon insert) with female pin 1 Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 14.77 g Performance Configuration 0E.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 7 Amps Specifications Contact Type: Solder Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.6 mm (0.024in) Max. Solid Conductor: 0.25 mm^2 (AWG 24) Max. Stranded Conductor: 0.14 mm^2 (AWG 26) R (max): 6.1 mOhm Vtest: 1060 V (AC), 1500 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +200°C Humidity (max): 1000 hr DRAWINGS Dimensions A L S2 mm. 13 34 8 in. 0,51 1,34 0,31 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.0E.007.PA080 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables 40080 PVC Black 40086 PVC Blue 40140 PVC Black 40240 PTFE White LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
