Table of Contents
Technical Information......................................................................... 4
M5 Cable Assembly
M5 to M5 Cable Assemblies
How to Order
M5 Straight Female to M5 Straight Male Cable Assembly.......................... 19
M5 Series With Molded Cable........................................................................ 5
M5 Straight Female to M5 Right Angle Male Cable Assembly.................... 20
M5 Series Panel Mount.................................................................................. 6
M5 Right Angle Female to M5 Straight Male Cable Assembly.................... 21
M5 Series Cable Assemblies.......................................................................... 6
M5 Right Angle Female to M5 Right Angle Male Cable Assembly.............. 22
M5 Molded Cable
Part Numbers........................................................................................ 23
M5 Male Molded Cable, Straight................................................................... 7
M5 Female Molded Cable, Straight............................................................... 8
M5 Male Molded Cable, Straight, Shielded................................................... 9
M5 Female Molded Cable, Straight, Shielded............................................. 10
M5 Male Molded Cable, Angled................................................................... 11
M5 Female Molded Cable, Angled............................................................... 12
M5 Panel Mount
M5 Male Panel Mount, PCB Type, Front fastened....................................... 13
M5 Female Panel Mount, PCB Type, Front fastened................................... 14
M5 Male Panel Mount, Solder Type, Front Fastened................................... 15
M5 Female Panel Mount, Solder Type, Front Fastened............................... 16
M5 Male Panel Mount, Flying Leads, Front Fastened.................................. 17
M5 Female Panel Mount, Flying Leads, Front Fastened.............................. 18
3
www.peigenesis.com
Technical Information
Technical Information
Wire Gauge Conversion Chart
Conversion between American Wire Gauge (AWG), Circular Mil Area (CMA),
and approximate metric millimeter squared (mm2) wire sizes.
Diameter
Area
Diameter
AWG
in.
mm
CMA
mm2*
AWG
in.
mm
CMA
mm2*
4/0 (0000)
0.46
11.68
212000
120
14
0.062
1.57
4110
2.5
3/0 (000)
0.41
10.41
168000
95
15
0.057
1.45
3260
-
2/0 (00)
0.365
9.27
133000
70
16
0.051
1.30
2580
1.5
1/0 (0)
0.325
8.26
106000
50
17
0.045
1.14
2050
1
1
0.289
7.34
83700
-
18
0.040
1.02
1620
0.75
2
0.258
6.55
66400
35
19
0.036
0.91
1290
-
3
0.229
5.82
52600
-
20
0.032
0.81
1020
0.5
4
0.204
5.18
41700
25
21
0.0285
0.72
810
-
5
0.182
4.62
33100
-
22
0.0253
0.643
642
0.34
6
0.162
4.11
26300
16
23
0.0226
0.574
509
-
7
0.144
3.66
20800
-
24
0.0201
0.511
404
0.25
8
0.128
3.25
16500
10
25
0.0179
0.45
320
-
9
0.114
2.90
13100
-
26
0.0159
0.404
254
0.14
10
0.102
2.59
10400
6
27
0.0142
0.361
202
-
11
0.091
2.31
8230
-
28
0.0126
0.320
160
0.08
12
0.081
2.06
6530
4
29
0.0113
0.29
127
-
13
0.072
1.83
5180
-
30
0.01
0.254
101
0.05
*Nearest metric wire size
Use to Convert American Wire Gauge to Diameter and Circular Mil Area.
4
Area
www.peigenesis.com
How to Order
1
2
IPM-M5
A3
SERIES
CODING & #
CONTACTS
-
3
4
M
WL
GENDER
ANGLE
SERIES
IPM-M5 = M5
CODING & # CONTACTS
A3 = 3 Contacts, A Coding
A4 = 4 Contacts, A Coding
GENDER
F = Female
M = Male
ANGLE
WL = Straight
RA-WL = Right Angle (non-shielded)
-
5
6
1.5
U
ASSEMBLY
LENGTH
CABLE SHEATH & SHIELDING
How to Order
M5 Series With Molded Cable
ASSEMBLY LENGTH
1.5 = 1.5 meters
2.0 = 2 meters
3.0 = 3 meters
5.0 = 5 meters
10 = 10 meters
CABLE SHEATH & SHIELDING
(blank) = PVC, Unshielded
S = PVC, Shielded
U = PUR, Unshielded
US = PUR, Shielded
5
www.peigenesis.com
How to Order
How to Order
M5 Series Panel Mount
1
2
3
IPM-M5
A3
M
SERIES
CODING & #
CONTACTS
GENDER
4
-
PC
TYPE
SERIES
IPM-M5 = M5
GENDER
F = Female
M = Male
CODING & # CONTACTS
A3 = 3 Contacts, A Coding
A4 = 4 Contacts, A Coding
TYPE
FL = Flying Leads (500mm)
PC = Straight PC Tails
SC = Solder Cup
M5 Series Cable Assemblies
1
2
IPM-M5
A3
SERIES
CODING & #
CONTACTS
3
-
FM
GENDERS
AND ANGLES
SERIES
IPM-M5 = M5
CODING & # CONTACTS
A3 = 3 Contacts, A Coding
A4 = 4 Contacts, A Coding
CONNECTOR GENDERS AND ANGLES
FM = Straight Female to Straight Male
FMRA = Straight Female to Male Right Angle
FRAM = Female Right Angle to Straight Male
FRAMRA = Female Right Angle to Male Right Angle
6
-
4
5
0.5
U
ASSEMBLY
LENGTH
CABLE
SHEATH
ASSEMBLY LENGTH
0.5 = 0.5 meters
1.5 = 1.5 meters
3.0 = 3 meters
CABLE SHEATH
(blank) = PVC, Unshielded
U = PUR, Unshielded
S = PVC, Shielded
US = PUR, Shielded
www.peigenesis.com
M5 Male Molded Cable, Straight
M5 Molded Cable
Connector series: M5
Gender: Male
Coding: A
Locking type: Fix screw
Mounting type: Straight
6
RE F 30
Part No.: IPM-M5**-MWL-XXX
M5x0.5
** refers to coding and number of contacts
X refers to cable length and material
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-10°C ~ 80°C (fixed)
-5°C ~ 80°C (flexible)
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector overmold:
TPU
Connector nut/screw: Brass with nickel plated
Electrical Data & Mechanical Data
Contacts
03 pins
1
3
4
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm2
1A
60V
60V
26AWG
0.14
Cable jacket Wire insulation
PUR / PVC
Cable ending
& length
PVC
Customized cable
ending and length
04 pins
2
1
3
4
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
7
www.peigenesis.com
M5 Female Molded Cable, Straight
RE F 27
6
M5 Molded Cable
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Straight
M5x0.5
Part No.: IPM-M5**-FWL-XXX
** refers to coding and number of contacts
X refers to cable length and material
General Information
Standard:
IEC 61076-2-105
-10°C ~ 80°C (fixed)
Ambient temperature:
-5°C ~ 80°C (flexible)
Connector insert:
TPU; PA
Connector contacts:
Brass with gold plated
Connector overmold:
TPU
Insulation resistance:
≥ 100MΩ
Contact resistance:
≤ 5mΩ
Shielding:
Unavailable
IP rating:
IP67 in locked condition
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
03 pins
1
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
2
Cable jacket Wire insulation
PUR / PVC
Cable ending
& length
PVC
Customized cable
ending and length
04 pins
1
2
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
8
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
www.peigenesis.com
M5 Male Molded Cable, Straight, Shielded
M5 Molded Cable
Connector series: M5
Gender: Male
Coding: A
Locking type: Fix screw
Mounting type: Straight
6. 5
REF 36.5
Part No.: IPM-M5**-MWL-XXUS
M5x0.5
** refers to coding and number of contacts
X refers to cable length
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-10°C ~ 80°C (fixed)
-5°C ~ 80°C (flexible)
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Available
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector overmold:
TPU
Connector nut/screw: Brass with nickel plated
Electrical Data & Mechanical Data
Contacts
03 pins
1
3
4
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm2
1A
60V
60V
26AWG
0.14
Cable jacket Wire insulation
PUR
Cable ending
& length
PVC
Customized cable
ending and length
04 pins
2
1
3
4
1A
60V
60V
26AWG
0.14
PUR
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
9
www.peigenesis.com
M5 Female Molded Cable, Straight, Shielded
REF 34.8
6. 5
M5 Molded Cable
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Straight
Part No.: IPM-M5**-FWL-XXUS
M5x0.5
** refers to coding and number of contacts
X refers to cable length
General Information
Standard:
IEC 61076-2-105
-10°C ~ 80°C (fixed)
Ambient temperature:
-5°C ~ 80°C (flexible)
Connector insert:
TPU; PA
Connector contacts:
Brass with gold plated
Connector overmold:
TPU
Insulation resistance:
≥ 100MΩ
Contact resistance:
≤ 5mΩ
Shielding:
Available
IP rating:
IP67 in locked condition
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
03 pins
1
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm2
1A
60V
60V
26AWG
0.14
Cable jacket Wire insulation
PUR
Cable ending
& length
PVC
Customized cable
ending and length
04 pins
1
2
4
3
1A
60V
60V
26AWG
0.14
PUR
PVC
Notes
10
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
www.peigenesis.com
M5 Male Molded Cable, Angled
M5 Molded Cable
Connector series: M5
Gender: Male
Coding: A
Locking type: Fix screw
Mounting type: Right angled
RE F 21
RE F 23
Part No.: IPM-M5**-MRA-WL-XXX
** refers to coding and number of contacts
X refers to cable length and material
M5x0.5
6
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-10°C ~ 80°C (fixed)
-5°C ~ 80°C (flexible)
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector overmold:
TPU
Connector nut/screw: Brass with nickel plated
Electrical Data & Mechanical Data
Contacts
03 pins
04 pins
1
3
4
2
1
3
4
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
2
Cable jacket Wire insulation
PUR / PVC
Cable ending
& length
PVC
Customized cable
ending and length
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
11
www.peigenesis.com
M5 Female Molded Cable, Angled
RE F 23
RE F 18 .5
M5 Molded Cable
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Right angled
Part No.: IPM-M5**-FRA-WL-XXX
** refers to coding and number of contacts
X refers to cable length and material
6
M5x0.5
General Information
Standard:
IEC 61076-2-105
-10°C ~ 80°C (fixed)
Ambient temperature:
-5°C ~ 80°C (flexible)
Connector insert:
TPU; PA
Connector contacts:
Brass with gold plated
Connector overmold:
TPU
Insulation resistance:
≥ 100MΩ
Contact resistance:
≤ 5mΩ
Shielding:
Unavailable
IP rating:
IP67 in locked condition
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
03 pins
1
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm2
1A
60V
60V
26AWG
0.14
Cable jacket Wire insulation
PUR / PVC
Cable ending
& length
PVC
Customized cable
ending and length
04 pins
1
2
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
12
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 5 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
www.peigenesis.com

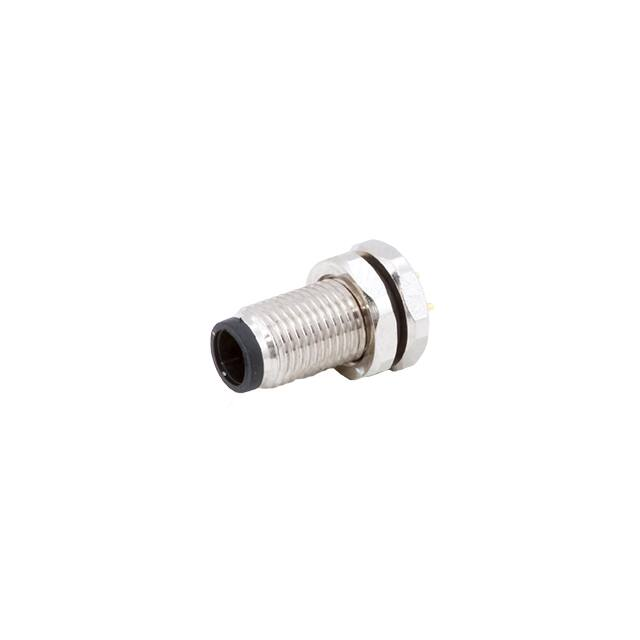

M5 Male Panel Mount, PCB Type, Front Fastened
11. 22
M5 Panel Mount
Connector series: M5
Gender: Male
Coding: A
Locking type: Fix screw
Mounting type: Front fastening
.1
.5
1. 5
Part No.: IPM-M5**M-PC
M5x0.5
7. 0
** refers to coding and number of contacts
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
Rated
Current
A/C
D/C
PCB
version
1A
60V
60V
PCB
version
1A
60V
60V
1
03 pins
3
04 pins
4
2
1
3
4
Panel Cut-out Dimensions
With bare hole
Voltage
Contacts
termination
PCB Layout
With thread to screw in
1.25
1.25
4
M5
+0.1
5.0 –0
B
M5x0.5
3x
1.25
B
A
A
Max. 2.0 C 0.5
Max. 2.0
3P (Pin OD:
4x
0.7
1
1
C 0.5
3
3
1.25
4
0.5)
4P (Pin OD:
0.7
2
0.5)
Notes
• Please refer to Page 6 for part number breakdown.
13
www.peigenesis.com I www.peigenesis.cn
www.peigenesis.com
M5 Female Panel Mount, PCB Type, Front Fastened
9.51
.5
2.1
0.5
M5 Panel Mount
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Front fastening
Part No.: IPM-M5**F-PC
M5x0.5
** refers to coding and number of contacts
9.0
M7x0.75
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
PA + GF
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
Rated
Current
A/C
D/C
PCB
version
1A
60V
60V
PCB
version
1A
60V
60V
1
03 pins
4
04 pins
3
1
2
4
3
Panel Cut-out Dimensions
With bare hole
Voltage
Contacts
termination
PCB Layout
With thread to screw in
1.25
1.25
3
+0.1
7.0 –0
M7x0.75
4x
3x
0.7
1
C 0.5
Max. 5.5 C 0.5
Max. 5.5
Notes
• Please refer to Page 6 for part number breakdown.
14
www.peigenesis.com I www.peigenesis.cn
3P (Pin OD:
0.5)
1.25
M7
B
4
4
1.25
B
A
A
3
2
4P (Pin OD:
1
0.5)
0.7
www.peigenesis.com
M5 Male Panel Mount, Solder, Front Fastened
11. 22
M5 Panel Mount
Connector series: M5
Gender: Male
Coding: A
Locking type: Fix screw
Mounting type: Front fastened
.1
1. 5
Part No.: IPM-M5**M-SC
M5x0.5
7. 0
** refers to coding and number of contacts
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
03 pins
04 pins
1
3
4
2
1
3
4
Voltage
Wire gauge/size
Contacts
termination
Rated
Current
A/C
D/C
AWG
mm2
Solder
version
1A
60V
60V
26AWG
0.14
Solder
version
1A
60V
60V
26AWG
0.14
Panel Cut-out Dimensions
With bare hole
With thread to screw in
C 0.5
Max. 2.0 C 0.5
B
A
A
M5
+0.1
5.0 –0
B
M5x0.5
Max. 2.0
Notes
• Please refer to Page 6 for part number breakdown.
15
www.peigenesis.com
M5 Female Panel Mount, Solder, Front Fastened
M5 Panel Mount
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Front fastened
9.51
.5
2.1
Part No.: IPM-M5**F-SC
M5x0.5
9.0
M7x0.75
** refers to coding and number of contacts
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
PA + GF
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
03 pins
04 pins
1
4
3
1
2
4
3
Voltage
Wire gauge/size
Contacts
termination
Rated
Current
A/C
D/C
AWG
mm2
Solder
version
1A
60V
60V
26AWG
0.14
Solder
version
1A
60V
60V
26AWG
0.14
Panel Cut-out Dimensions
With bare hole
With thread to screw in
A
B
A
C 0.5
Max. 5.5
C 0.5
Max. 5.5
Notes
16
• Please refer to Page 6 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
M7
+0.1
7.0 –0
B
M7x0.75
www.peigenesis.com
M5 Male Panel Mount, Flying Leads, Front Fastened
11. 22
M5 Panel Mount
Connector series: M5
Gender: Male
Coding: A, B
Locking type: Fix screw
Mounting type: Front fastening
500 + 20
1. 5
Part No.: IPM-M5**M-FL
M5x0.5
7. 0
** refers to coding and number of contacts
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Wire length:
500 mm
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
03 pins
04 pins
1
3
4
2
1
3
4
Voltage
Wire gauge / size
Wire
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
PVC
1A
60V
60V
26AWG
0.14
PVC
2
insulation
Panel Cut-out Dimensions
With bare hole
With thread to screw in
C 0.5
Max. 2.0 C 0.5
B
A
A
M5
+0.1
5.0 –0
B
M5x0.5
Max. 2.0
Notes
• Please refer to Page 6 for part number breakdown.
17
www.peigenesis.com
M5 Female Panel Mount, Flying Leads, Front Fastened
M5 Panel Mount
Connector series: M5
Gender: Female
Coding: A
Locking type: Fix screw
Mounting type: Front fastening
9.51
M5x0.5
9.0
.5
500 + 20
M7x0.75
Part No.: IPM-M5**F-FL
** refers to coding and number of contacts
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-25°C ~ +90°C
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector nut/screw:
Brass with nickel plated
Wire length:
500 mm
Seal/O-ring:
Epoxy resin/ FKM
Electrical Data & Mechanical Data
Contacts
03 pins
04 pins
1
4
3
1
2
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
PVC
1A
60V
60V
26AWG
0.14
PVC
Panel Cut-out Dimensions
B
With thread to screw in
A
With bare hole
C 0.5
Max. 5.5
C 0.5
Max. 5.5
Notes
• Please refer to Page 6 for part number breakdown.
18
M7
A
B
+0.1
7.0 –0
M7x0.75
2
Wire
insulation
www.peigenesis.com
M5 Cables & Connectors
M5 Straight Female to M5 Straight Male
Cable Assembly
RE F 27
6
Connector series: M5
Gender: Female to Male
Coding: A
Locking type: Fix screw
Mounting type: Straight
M5x0.5
Part No.: IPM-M5**-FM-XXX
RE F 30
6
** refers to coding and number of contacts
X refers to cable length and material
M5x0.5
General Information
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-10°C~80°C (fixed)
-5°C~80°C (flexible)
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector overmold:
TPU
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
Male
03 pins
3
Female
1
1
4
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
2
Cable
jacket
Wire
insulation
PUR / PVC
PVC
Cable
length
Customized
length
04 pins
2
1
1
2
3
4
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 6 for part number breakdown.
19
M5 Cables & Connectors
www.peigenesis.com
M5 Straight Female to M5 Right Angle Male
Cable Assembly
RE F 27
6
Connector series: M5
Gender: Female to Male
M5x0.5
Coding: A
Locking type: Fix screw
Mounting type: Straight to Right Angle
RE F 23
Part No.: IPM-M5**-FMRA-XXX
RE F 21
** refers to coding and number of contacts
X refers to cable length and material
M5x0.5
6
General Information
Standard:
IEC 61076-2-105
-10°C~80°C (fixed)
Ambient temperature:
-5°C~80°C (flexible)
Connector insert:
TPU
Connector contacts:
Brass with gold plated
Connector overmold:
TPU
Insulation resistance:
≥ 100MΩ
Contact resistance:
≤ 5mΩ
Shielding:
Unavailable
IP rating:
IP67 in locked condition
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
Male
03 pins
3
Female
1
1
4
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
2
Cable
jacket
Wire
insulation
PUR / PVC
PVC
Cable
length
Customized
length
04 pins
2
1
1
2
3
4
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 6 for part number breakdown.
20
www.peigenesis.com
M5 Cables & Connectors
M5 Right Angle Female to M5 Straight Male
Cable Assembly
RE F 23
RE F 18 .5
Connector series: M5
Gender: Female to Male
Coding: A
Locking type: Fix screw
Mounting type: Right Angle to Straight
6
Part No.: IPM-M5**-FRAM-XXX
M5x0.5
RE F 30
6
** refers to coding and number of contacts
X refers to cable length and material
M5x0.5
General Information
Standard:
IEC 61076-2-105
-10°C~80°C (fixed)
Ambient temperature:
-5°C~80°C (flexible)
Connector insert:
TPU; PA
Connector contacts:
Brass with gold plated
Connector overmold:
TPU
Insulation resistance:
≥ 100MΩ
Contact resistance:
≤ 5mΩ
Shielding:
Unavailable
IP rating:
IP67 in locked condition
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
Male
03 pins
3
Female
1
1
4
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm2
Cable
jacket
Wire
insulation
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Cable
length
Customized
length
04 pins
2
1
1
2
3
4
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 6 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
21
M5 Cables & Connectors
www.peigenesis.com
M5 Right Angle Female to M5 Right Angle Male
Cable Assembly
RE F 23
RE F 18 .5
Connector series: M5
Gender: Female to Male
Coding: A
Locking type: Fix screw
Mounting type: Right angled
6
Part No.: IPM-M5**-FRAMRA-XXX
M5x0.5
RE F 23
RE F 21
** refers to coding and number of contacts
X refers to cable length and material
M5x0.5
General Information
6
Standard:
IEC 61076-2-105
Insulation resistance:
≥ 100MΩ
Ambient temperature:
-10°C~80°C (fixed)
-5°C~80°C (flexible)
Contact resistance:
≤ 5mΩ
Connector insert:
TPU
Shielding:
Unavailable
Connector contacts:
Brass with gold plated
IP rating:
IP67 in locked condition
Connector overmold:
TPU
Connector nut/screw: Brass with nickel plated
Seal / O-ring:
FKM
Electrical Data & Mechanical Data
Contacts
Male
03 pins
3
Female
1
1
4
4
3
Voltage
Wire gauge / size
Rated
Current
A/C
D/C
AWG
mm
1A
60V
60V
26AWG
0.14
2
Cable
jacket
Wire
insulation
PUR / PVC
PVC
Cable
length
Customized
length
04 pins
2
1
1
2
3
4
4
3
1A
60V
60V
26AWG
0.14
PUR / PVC
PVC
Notes
22
• Please refer to Page 4 for the Conversion between American Wire Gauge AWG and Wire Cross-section mm2
• Please refer to Page 6 for part number breakdown.
www.peigenesis.com I www.peigenesis.cn
www.peigenesis.com
Part Numbers
Catalog
Page
All M5 Series P/Ns
Catalog
Page
All M5 Series P/Ns
Catalog
Page
IPM-M5A3-MWL-0.5
7
IPM-M5A4-MWL-1.5S
9
IPM-M5A3-FRA-WL-0.5
12
IPM-M5A3-MWL-0.5U
7
IPM-M5A4-MWL-1.5US
9
IPM-M5A3-FRA-WL-0.5U
12
IPM-M5A4-MWL-0.5
7
IPM-M5A3-MWL-3.0S
9
IPM-M5A4-FRA-WL-0.5
12
IPM-M5A4-MWL-0.5U
7
IPM-M5A3-MWL-3.0US
9
IPM-M5A4-FRA-WL-0.5U
12
IPM-M5A3-MWL-1.5
7
IPM-M5A4-MWL-3.0S
9
IPM-M5A3-FRA-WL-1.5
12
IPM-M5A3-MWL-1.5U
7
IPM-M5A4-MWL-3.0US
9
IPM-M5A3-FRA-WL-1.5U
12
IPM-M5A4-MWL-1.5
7
IPM-M5A3-FWL-0.5S
10
IPM-M5A4-FRA-WL-1.5
12
IPM-M5A4-MWL-1.5U
7
IPM-M5A3-FWL-0.5US
10
IPM-M5A4-FRA-WL-1.5U
12
IPM-M5A3-MWL-3.0
7
IPM-M5A4-FWL-0.5S
10
IPM-M5A3-FRA-WL-3.0
12
IPM-M5A3-MWL-3.0U
7
IPM-M5A4-FWL-0.5US
10
IPM-M5A3-FRA-WL-3.0U
12
IPM-M5A4-MWL-3.0
7
IPM-M5A3-FWL-1.5S
10
IPM-M5A4-FRA-WL-3.0
12
IPM-M5A4-MWL-3.0U
7
IPM-M5A3-FWL-1.5US
10
IPM-M5A4-FRA-WL-3.0U
12
IPM-M5A3-FWL-0.5
8
IPM-M5A4-FWL-1.5S
10
IPM-M5A3M-PC
13
IPM-M5A3-FWL-0.5U
8
IPM-M5A4-FWL-1.5US
10
IPM-M5A4M-PC
13
IPM-M5A4-FWL-0.5
8
IPM-M5A3-FWL-3.0S
10
IPM-M5A3F-PC
14
IPM-M5A4-FWL-0.5U
8
IPM-M5A3-FWL-3.0US
10
IPM-M5A4F-PC
14
IPM-M5A3-FWL-1.5
8
IPM-M5A4-FWL-3.0S
10
IPM-M5A3M-SC
15
IPM-M5A3-FWL-1.5U
8
IPM-M5A4-FWL-3.0US
10
IPM-M5A4M-SC
15
IPM-M5A4-FWL-1.5
8
IPM-M5A3-MRA-WL-0.5
11
IPM-M5A3F-SC
16
IPM-M5A4-FWL-1.5U
8
IPM-M5A3-MRA-WL-0.5U
11
IPM-M5A4F-SC
16
IPM-M5A3-FWL-3.0
8
IPM-M5A4-MRA-WL-0.5
11
IPM-M5A3M-FL
17
IPM-M5A3-FWL-3.0U
8
IPM-M5A4-MRA-WL-0.5U
11
IPM-M5A4M-FL
17
IPM-M5A4-FWL-3.0
8
IPM-M5A3-MRA-WL-1.5
11
IPM-M5A3F-FL
18
IPM-M5A4-FWL-3.0U
8
IPM-M5A3-MRA-WL-1.5U
11
IPM-M5A4F-FL
18
IPM-M5A3-MWL-0.5S
9
IPM-M5A4-MRA-WL-1.5
11
IPM-M5A3-FM-0.5
19
IPM-M5A3-MWL-0.5US
9
IPM-M5A4-MRA-WL-1.5U
11
IPM-M5A3-FM-0.5U
19
IPM-M5A4-MWL-0.5S
9
IPM-M5A3-MRA-WL-3.0
11
IPM-M5A4-FM-0.5
19
IPM-M5A4-MWL-0.5US
9
IPM-M5A3-MRA-WL-3.0U
11
IPM-M5A4-FM-0.5U
19
IPM-M5A3-MWL-1.5S
9
IPM-M5A4-MRA-WL-3.0
11
IPM-M5A3-FM-1.5
19
IPM-M5A3-MWL-1.5US
9
IPM-M5A4-MRA-WL-3.0U
11
IPM-M5A3-FM-1.5U
19
Part Numbers
All M5 Series P/Ns
23
Part Numbers
www.peigenesis.com
24
All M5 Series P/Ns
Catalog
Page
All M5 Series P/Ns
Catalog
Page
IPM-M5A4-FM-1.5
19
IPM-M5A3-FRAMRA-0.5
22
IPM-M5A4-FM-1.5U
19
IPM-M5A3-FRAMRA-0.5U
22
IPM-M5A3-FM-3.0
19
IPM-M5A4-FRAMRA-0.5
22
IPM-M5A3-FM-3.0U
19
IPM-M5A4-FRAMRA-0.5U
22
IPM-M5A4-FM-3.0
19
IPM-M5A3-FRAMRA-1.5
22
IPM-M5A4-FM-3.0U
19
IPM-M5A3-FRAMRA-1.5U
22
IPM-M5A3-FMRA-0.5
20
IPM-M5A4-FRAMRA-1.5
22
IPM-M5A3-FMRA-0.5U
20
IPM-M5A4-FRAMRA-1.5U
22
IPM-M5A4-FMRA-0.5
20
IPM-M5A3-FRAMRA-3.0
22
IPM-M5A4-FMRA-0.5U
20
IPM-M5A3-FRAMRA-3.0U
22
IPM-M5A3-FMRA-1.5
20
IPM-M5A4-FRAMRA-3.0
22
IPM-M5A3-FMRA-1.5U
20
IPM-M5A4-FRAMRA-3.0U
22
IPM-M5A4-FMRA-1.5
20
IPM-M5A4-FMRA-1.5U
20
IPM-M5A3-FMRA-3.0
20
IPM-M5A3-FMRA-3.0U
20
IPM-M5A4-FMRA-3.0
20
IPM-M5A4-FMRA-3.0U
20
IPM-M5A3-FRAM-0.5
21
IPM-M5A3-FRAM-0.5U
21
IPM-M5A4-FRAM-0.5
21
IPM-M5A4-FRAM-0.5U
21
IPM-M5A3-FRAM-1.5
21
IPM-M5A3-FRAM-1.5U
21
IPM-M5A4-FRAM-1.5
21
IPM-M5A4-FRAM-1.5U
21
IPM-M5A3-FRAM-3.0
21
IPM-M5A3-FRAM-3.0U
21
IPM-M5A4-FRAM-3.0
21
IPM-M5A4-FRAM-3.0U
21
Corporate Headquarters, Philadelphia, PA
European Headquarters & Production Facility, Southampton, UK
North American Production Facility, South Bend, IN
Production Facility, Zhuhai, China
FilConn, Chandler, AZ
PEI-Genesis has sales offices throughout the Americas, Europe and Asia.
Visit www.peigenesis.com, call +1 800.675.1214 (North America), +44 (0) 23 8062 1260 (Europe),
+86 756 7683 088 (Asia), +1 631.475.5050 (Rest of World), or email: sales@peigenesis.com.
www.peigenesis.com | www.peigenesis.cn
25
