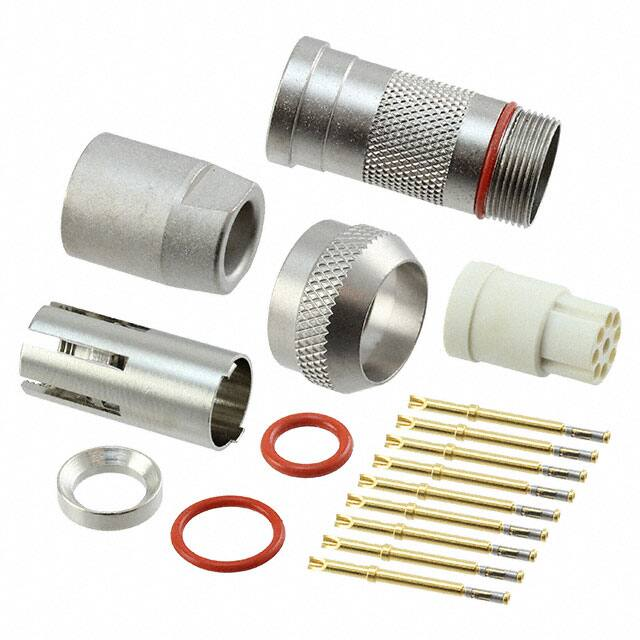

TS2C9F26C

8 7 6 2 2 3 1 3 3 F 1 2 4 1 4 COUNTERCLOCKWISE COUNT 2 3 5 1 5 3 4 4 5 3 6 3 6 3 7 2 7 2 6 7 8 1 8 9 3 4 1 CLOCKWISE COUNT 3 2 4 2 5 1 3 4 5 6 1 4 4 2 5 4 5 6 3 6 2 7 2 7 7 6 1 8 1 9 Gender: M - Male (Pin) F - Female (Socket) Refer to TS2P SERIES drawing for mating Panel-mount connectors. Refer to TS2L SERIES drawing for mating Cable-to-Cable connectors. 8 E Contacts 0.10 2.6 BACK NUT DIA. SIZE A: 0.150 [3.81] DIA. SIZE B: 0.190 [4.83] DIA. SIZE C: 0.230 [5.84] DIA. ALL DIMENSIONS FOR REFERENCE ONLY TOOL TOOL TYPE EN3CR HAND CRIMP TOOL EN3CRAUTO PNEUMATIC CRIMP TOOL HAND CRIMP TOOL LARGE FRAME EN2CRL PNEUMATIC CRIMP TOOL LARGE FRAME EN2CRAUTOL INSTOOL20 INSTOOL26 REMTOOL20 REMTOOL26 CONTACT INSERTION CONTACT EXTRUCTION 8 POSITIONER CONTACT SIZE WIRE SIZES EN2POS20 EN3POS26 EN2POS20 EN3POS26 20 and 22 26 20 and 22 26 20 and 22 AWG 26, 28, and 30 AWG 20 and 22 AWG 26, 28, and 30 AWG EN2POS20L 20 and 22 20, 22, 24, and 26 AWG ----- 20 26 20 26 7 Copper Alloy, electroless nickel plated Copper Alloy, nickel plated Medical Technology LCP, natural Thermoplastic Elastomer Copper Alloy, gold plated with Stainless Steel locking clip Minimum Test Voltage (V rms) Current Rating (A) at Operating Temperature (°C) Wire (awg) D Voltage (V rms) tested per UL2238 C B CUSTOMER DRAWING THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. UNLESS OTHERWISE SPECIFIED WIDTH - TWO PLACE DECIMALS 0.02 - THREE PLACE DECIMALS 0.005 [0.13] 10 lb WAS 5 lb 09/22/16 PNK SRC DATE DRAWN 0A PRELIMINARY 04/19/16 PNK SRC 04/19/16 ECO NUMBER DATE REVISIONS 4 BY APVD MULT DO NOT SCALE DRAWING SolidWorks CAD File C TEMPER BY A SPEC No. SCALE CHKD PNK PNK 04/19/16 3:1 APVD SRC 04/19/16 CABLE-END TS2 SERIES CONNECTOR NAME LBS/M MATERIAL SPEC No. FIRST USED ON [0.5] 0B REV 5 SIZE FINISH 1. ALL DIMENSIONS IN INCHES [mm] 20, 22, 24, and 26 AWG 26, 28, and 30 AWG 20, 22, 24, and 26 AWG 26, 28, and 30 AWG 6 -40ºC to +135ºC (-40ºF to +275°F) Refer to Current Carry Capacity Table Mil-Std 202G Method 106G Mil-Std 202G Method 302 Mil-Std 202G Method 107G Mil-Std 202G Method 101E IP66, IP67, IP68 (6 ft. for 24 hours) per IEC60529, NEMA 250 6P 45°C max. 65°C max. 85°C max. 100°C max. 110°C max. 20 10 9 8 7* 6 22 8.5 7.5 7.5 5.5* 4.5 2 #20 24 7 6 5 4.5* 3.5 26 4 4 3.5 3.5* 2.5 20 9.5 8.5 7.5 6.5* 5 22 8 7 6 5* 4 3 #20 24 6 5.5 4.5 4* 3 26 3.5 3.5 3 3* 2.5 1300 125 20 9 8 7 6* 5 22 7.5 6.5 5.5 4.5* 3.5 4 #20 24 5 4.5 4 3.5* 2.5 26 3 3 2.5 2.5* 2 20 8 7.5 6.5 5.5* 4.5 22 6.5 5.5 5 4* 3 5 #20 24 4.5 4 3.5 3* 2.5 26 2.5 2.5 2 2* 1.5 26 2.5 2.5 2 2* 1.5 6-7 #26 28 2 2 1.5 1.5* 1 30 1.5 1.5 1 1* .5 1000 30 26 2 2 1.5 1.5* 1 8-9 #26 28 1.5 1.5 1 1* .5 30 1 1 .5 .5* .5 *Temperature Rise does not exceed 30°C when tested according to UL2238. All other recommended current ratings are based on the Relative Thermal Index of the insulating material. 0.31 7.9 TS2C7M26B SHOWN HERE 125 V AC/DC for 2-5 contact arrangements 30 V AC/DC for 6-9 contact arrangements Refer to Current Carry Capacity Table 1000 MΩ minimum 10 mΩ typical 360° MATERIAL Outer Shell Metal components Hex Nut & Inner Metal components Electrical Insulator Seal O-rings Contacts Assembly 1.38 MAX 35.0 MAX E Threaded Coupling 5,000 cycles minimum 10 lb. [44.5 N] maximum Insertion or Withdrawal Mil-Std 202G Method 201A 40 in-lb [4.5 Nm] maximum Threaded on metal Clamp Current Rating Insulation Resistance Contact Resistance EMI Shielding ENVIRONMENTAL Temperature Limits Operating Temperature Range Moisture Resistance Insulation Resistance Thermal Shock Salt Atmosphere (Corrosion) Ingress Protection Ratings TYPICAL CABLE-END SOCKET (FEMALE) (TS2C7F26B SHOWN HERE) 0.50 12.8 C A SPECIFICATIONS: MECHANICAL Mating / Locking Type: Life Operating Forces Vibration Panel-Mount Hex Nut Tongue Cable Securing System: ELECTRICAL Voltage Rating D B Contact Size: 20 - 20, 22, 24, 26 AWG wires 26 - 26,28, 30 AWG wires MALE (PINS) CONTACT ARRANGEMENTS REAR (WIRING SIDE) VIEW TYPICAL CABLE-END PIN (MALE) (TS2C7M26B SHOWN HERE) F Clamp Set per Cable O.D. Range for Cable-End and Cable-to-Cable only: A - 0.110 - 0.140 [2.8 - 3.6] B - 0.140 - 0.180 [3.6 - 4.6] C - 0.180 - 0.216 [4.6 - 5.5] # of contacts: 2-5 for #20 6-9 for #26 5 1 Options: K - Kit Packaging (one unit/bag) [blank] - Bulk Packaging Consult factory for other options Connector Type: C - Cable-End 1 3 1 TS2 Series 2 1 2 TS2 C 7 M 26 B - K 4 FEMALE (SOCKETS) CONTACT ARRANGEMENTS REAR (WIRING SIDE) VIEW 2 1 2 6 3 2 4 3 5 1 5 2 1 4 5 SHEET PART No. 1 OF TS2C SERIES 2 REV 0B 8 7 6 5 0.51±0.01 13.0±0.3 JACKET F 4 2 1 WASHER CLAMP O-RING NUT FEED THE FREE END OF CABLE THROUGH THE NUT, O-RING, WASHER, AND CLAMP IN THE ORDER SHOWN. 0.18±0.008 4.5±0.2 CONDUCTOR STEP 1 3 F STRIP THE CABLE JACKET, THE CONDUCTORS, AND THE CABLE SHIELDING AS SHOWN. 0.13±0.01 BRAID SHIELD 3.2±0.3 INTERNAL CHAMFER ORIENTATION CONTACT E CRIMP CONDUCTORS TO CONTACTS USING HAND OR PNEUMATIC CRIMP TOOL* WITH CRIMP POSITIONER* SET PER CONTACT SIZE AND WIRE GAGE. STEP 2 ONE CONTACT SHOWN HERE FOR CLARITY IF SOLDERING, IT IS RECOMMENDED TO SOLDER CONDUCTORS TO CONTACTS BEFORE INSTALLATION. E CRIMP OR SOLDER COUPLING RING SHELL D GUIDE EACH WIRED CONTACT INTO INSERT HOLE AND PUSH UNTIL CONTACT SNAPS IN PLACE. USE INSERTION TOOL* IF NECESSARY. INSERT COLORED CONDUCTORS CAN BE ASSIGNED TO CONTACT POSITION NUMBERS AS DESIRED. STEP 3 TO REMOVE A CONTACT, INSERT THE EXTRACTION TOOL* FROM THE FRONT OF INSERT AND LIGHTLY PRESS THE SPRING LOADED PLUNGER INWARD TO PUSH THE CONTACT OUT. 0.19 WHEN CONTACT LOCKED INTO INSERT 4.7 INTERFACE SEAL O-RING D SLIDE COUPLING RING OVER SHELL ORIENTED AS SHOWN. C ALIGN INSERT ASSEMBLY INTO SHELL FOLLOWED BY THE CLAMP. PUSH CLAMP LIGHTLY FORWARD AND ROTATE UNTIL THE ASSEMBLY SNAPS IN THE FINAL POSITION SHOWN. STEP 4 C 0.08 WHEN INSERT IN FINAL POSITION 2.0 SLIDE WASHER, O-RING, AND NUT AGAINST CLAMP AND THREAD NUT ON UNTIL TIGHT - NOT TO EXCEED 9 IN-LB [1 Nm] TORQUE. A 5/16" [8mm] WRENCH CAN BE USED, IF NECESSARY. B STEP 5 B GUIDE THE INTERFACE SEAL O-RING OVER THE INSERT AND PUSH INTO THE GROOVE OF THE SHELL. INTERFACE SEAL O-RING IN FINAL POSITION *REFER TO TOOLS TABLE ON THIS DRAWING FOR SELECTION OF TOOLS PER CONTACT AND WIRE SIZE. A TS2 SERIES CABLE-END FIELD ASSEMBLY INSTRUCTIONS STEP 6 A SCALE 2:1 DATE DRAWN FINISHED ASSEMBLY 04/19/16 DRAWN BY PNK 8 7 6 5 4 3 SolidWorks CAD File SHEET PART No. 2 OF TS2C SERIES_CD C 2 REV 0A
