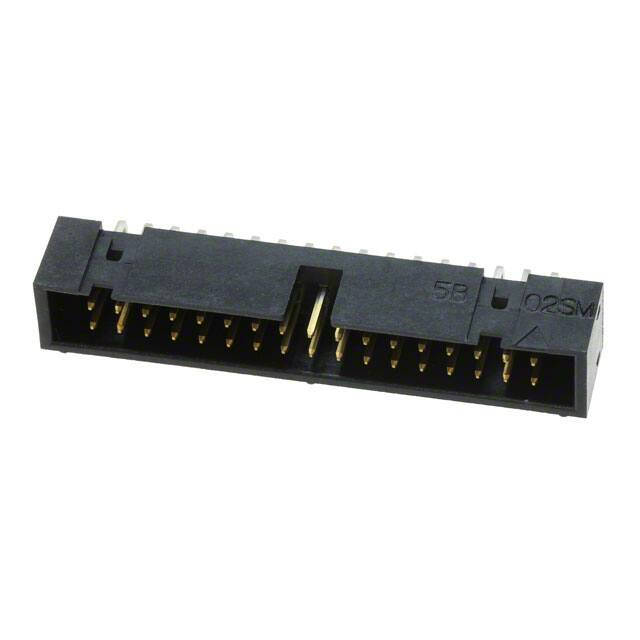

2.54mm Pitch Low Profile Connector HIF3FB and HIF3FC Series ■Features 1. Flux Prevention HIF3FC series straight type takes complete flux tight measures. 2. Low Profile Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. The pin header is a low profile of height 9.2mm. The board to board clearance is 12.2mm for stacking connection. ■Applications Photo: HIF3FC Series Computers, termination equipment, various kinds of electronic equipment, Office Automation machines and so on ■Product Specifications Rating Current rating: 1A Operating Temperature Range: -55 to +85ç (Note 1) Storage Temperature Range: -10 to +60ç (Note 2) Voltage rating: 200V AC Operating Humidity Range: 40 to 80% Item Operating Humidity Range: 40 to 70% (Note 2) Specification Condition 1. Insulation Resistance 1000M ohms 500V DC 2. Withstanding Voltage No flashover or insulation breakdown. 650V AC/1 minute. 3. Contact Resistance 15m ohms max. 0.1A 4. Vibration No electrical discontinuity of 1μs or more Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions. 5. Humidity (Steady state) Insulation resistance: 1000M ohms min 96 hours at temperature of 40ç and humidity of 90% to 95% 6. Temperature Cycle (-55ç: 30 minutes→15 to 35ç: 5 minutes max.→ 85ç: 30 minutes→15 to 35ç: 5 minutes max.) 5 cycles No damage, cracks, or parts looseness. 7. Durability (Mating/un-mating) Contact resistance: 15 m ohms max. 500 cycles 8. Resistance to Soldering heat No deformation of components affecting performance. Solder bath: 260ç for 10 seconds Manual soldering: 350ç for 3 seconds Note 1: Includes temperature rise caused by current flow. Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation. Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a specific part number shown. ■Material Parts Material PBT Insulator Contact Pin header Brass Receptacle Copper alloy Finish Remarks Black UL94V-0 Contact area : Gold plated ________ Termination area : Pure tin plated ■Ordering Information HIF3FC- * P A - 2.54 DSA q w e r t q Series Name y : HIF3FB (60, 64 contacts) r A: Selective gold plating : HIF3FC (10~50 contacts) t Contact pitch: 2.54mm w Number of contacts: 10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 64 y Contact type e P : Pin header DSA : Straight type D : Socket DS : Right angle type B47 HIF3FB and HIF3FC Series●2.54mm Pitch Low Profile Connector ■Straight Type Pin Header Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Note 1: Two types of 50 contacts are available. Please use products according to the table as shown below. Note 2: The number of polarizing key mounted positions differs according to products. Please refer to the table as shown below. Note 3: The 10 contact type has no standoff at the center. Note 4: * indicates the number of contacts. Unit: mm Part Number CL No. Number of Contacts A B C HIF3FC -10PA-2.54DSA(71) 616-0161-4-71 10 20.2 17.5 10.16 4.1 None HIF3FC -14PA-2.54DSA(71) 616-0162-7-71 14 25.28 22.58 15.24 4.1 1 point on the left side HIF3FC -16PA-2.54DSA(71) 616-0163-0-71 16 27.82 25.12 17.78 4.1 HIF3FC -20PA-2.54DSA(71) 616-0164-2-71 20 32.9 30.2 22.86 4.1 HIF3FC -26PA-2.54DSA(71) 616-0165-5-71 26 40.52 37.82 30.48 4.1 HIF3FC -30PA-2.54DSA(71) 616-0166-8-71 30 45.6 42.9 35.56 4.1 HIF3FC -34PA-2.54DSA(71) 616-0167-0-71 34 50.68 47.98 40.64 4.1 HIF3FC -40PA-2.54DSA(71) 616-0168-3-71 40 58.30 55.60 48.26 4.1 HIF3FC -50PA-2.54DSA(71) 616-0169-6-71 50 71.0 68.3 60.96 4.1 HIF3FCA-50PA-2.54DSA(71) 616-0170-5-71 50 71.0 68.3 60.96 26.96 D (Note 1) Polarizing Key Mounted Position(Note 2) RoHS YES 1 point on the right and left sides, respectively Note 1: Two types are available. Please use them according to the table as shown below. Unit: mm Part Number B48 Number of Contacts A B C HIF3FB -60PA-2.54DSA(71) 616-0130-0-71 CL No. 60 83.7 81.0 73.66 4.1 HIF3FBA -60PA-2.54DSA(71) 616-0142-0-71 60 83.7 81.0 73.66 26.96 HIF3FB -64PA-2.54DSA(71) 616-0131-3-71 64 88.78 86.1 78.74 4.1 HIF3FBA -64PA-2.54DSA(71) 616-0143-2-71 64 88.78 86.1 78.74 26.96 D (Note 1) Polarizing Key Mounted Position 1 point on the right and left sides, respectively RoHS YES HIF3FB and HIF3FC Series●2.54mm Pitch Low Profile Connector Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Right Angle Type Pin Header Note 1: Two types of 50 contacts are available. Please use products according to the table as shown below. Note 2: The number of polarizing key mounted positions differs according to products. Please refer to the table as shown below. Note 3: The 10 contact type has no standoff at the center. Note 4: * indicates the number of contacts. Unit: mm Part Number CL No. Number of Contacts A B C HIF3FC -10PA-2.54DS(71) 616-0061-0-71 10 20.2 17.5 10.16 4.1 None HIF3FC -14PA-2.54DS(71) 616-0062-2-71 14 25.28 22.58 15.24 4.1 1 point on the left side HIF3FC -16PA-2.54DS(71) 616-0063-5-71 16 27.82 25.12 17.78 4.1 HIF3FC -20PA-2.54DS(71) 616-0064-8-71 20 32.9 30.2 22.86 4.1 HIF3FC -26PA-2.54DS(71) 616-0065-0-71 26 40.52 37.82 30.48 4.1 HIF3FC -30PA-2.54DS(71) 616-0066-3-71 30 45.6 42.9 35.56 4.1 HIF3FC -34PA-2.54DS(71) 616-0067-6-71 34 50.68 47.98 40.64 4.1 HIF3FC -40PA-2.54DS(71) 616-0068-9-71 40 58.30 55.60 48.26 4.1 HIF3FC -50PA-2.54DS(71) 616-0069-1-71 50 71.0 68.3 60.96 4.1 HIF3FCA-50PA-2.54DS(71) 616-0070-0-71 50 71.0 68.3 60.96 26.96 D (Note 1) Polarizing Key Mounted Position(Note 2) RoHS YES 1 point on the right and left sides, respectively Note 1: Two types are available. Please use them according to the table as shown below. Unit: mm Part Number CL No. Number of Contacts A B C HIF3FB -60PA-2.54DS(71) 616-0030-6-71 60 83.7 81.0 73.66 4.1 HIF3FBA -60PA-2.54DS(71) 616-0042-5-71 60 83.7 81.0 73.66 26.96 HIF3FB -64PA-2.54DS(71) 616-0031-9-71 64 88.78 86.1 78.74 4.1 HIF3FBA -64PA-2.54DS(71) 616-0043-8-71 64 88.78 86.1 78.74 26.96 D (Note 1) Polarizing Key Mounted Position RoHS 1 point on the right and left sides, respectively YES B49 HIF3FB and HIF3FC Series●2.54mm Pitch Low Profile Connector Nov.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Straight Type Receptacle Unit: mm CL No. Number of Contacts A B HIF3FB-10DA-2.54DSA(71) Part Number 616-0201-7-71 10 17.27 10.16 HIF3FB-16DA-2.54DSA(71) 616-0203-2-71 16 24.89 17.78 HIF3FB-20DA-2.54DSA(71) 616-0204-5-71 20 29.97 22.86 HIF3FB-26DA-2.54DSA(71) 616-0205-8-71 26 37.59 30.48 HIF3FB-30DA-2.54DSA(71) 616-0206-0-71 30 42.67 35.56 HIF3FB-34DA-2.54DSA(71) 616-0207-3-71 34 47.75 40.64 HIF3FB-40DA-2.54DSA(71) 616-0208-6-71 40 55.37 48.26 HIF3FB-50DA-2.54DSA(71) 616-0209-9-71 50 68.07 60.96 HIF3FB-60DA-2.54DSA(71) 616-0210-8-71 60 80.77 73.66 Note 1: Standoff number differs according to products. Note 2: The polarizing key number differs according to products. B50 Polarizing Key Mounted Position RoHS None 1 point on the right and left sides, respectively YES
