B3MH

B3MH

  • 厂商:

    SWITCHCRAFT

  • 封装:

    -

  • 描述:

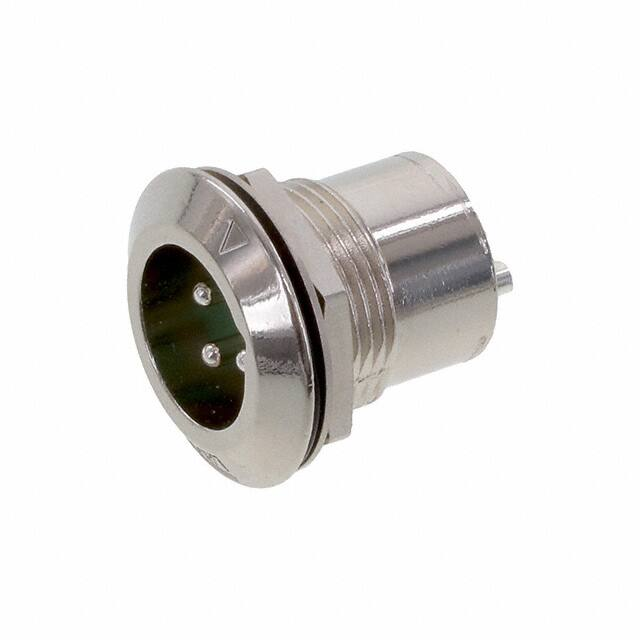

    CONN RCPT MALE XLR 3P SOLDER CUP

  • 数据手册
  • 价格&库存
B3MH 数据手册
XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 Please visit www.switchcraft.com for the most up-to-date product specifications. XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 In-Line Cord Panel FEATURES & BENEFITS APPLICATIONS • Panel connector sealed to IP68 • Outdoor communications equipment NEMA 250 (6P) unmated • Mated pairs sealed to IP66 • Cable, panel & cable to cable options • Audio Applications • Instrumentation • Silver or Gold plated contacts • RoHS Compliant • Stage Lighting Please visit www.switchcraft.com for the most up-to-date product specifications. XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 SEALED AAA SERIES XLR CORD CONNECTORS-FEMALE ONLY 3.1 78 MAX 2.1 53 0.94 23.8 0.83 21.2 3 PIN 0.65 16.4 4 PIN 5 PIN 6 PIN 7 PIN CONTACTS AS VIEWED FACING CORD CONNECTORS SEALED AAA SERIES XLR IN-LINE CONNECTORS-MALE ONLY 2.8 71 MAX 2.1 53 0.80 20.3 0.65 16.4 0.78 19.7 0.71 18 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN CONTACTS AS VIEWED FACING IN-LINE CONNECTORS ALL DIMENSIONS ARE REFERENCE ONLY Please visit www.switchcraft.com for the most up-to-date product specifications. XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 SEALED AAA SERIES XLR PANEL-MOUNT CONNECTORS - MALE ONLY 0.99 25 0.125 3.18 Seal O-ring 13/16-20 NS 2A THREAD Ground Terminal 1.11 28.17 Pin Contacts 0.17 4.32 Hex Nut, 0.937 [23.8] ACROSS FLATS Flat Washer 0.25 MAX PANEL THICKNESS 6.35 0.005 0.812 +0.000 +0.13 20.62 0 +0.005 0.812 - 0.000 +0.13 20.62 0 0.005 0.750 +-0.000 +0.13 19.05 0 0.005 0.750 +0.000 +0.13 19.05 0 0.344 REF 8.74 3 PIN RECOMMENDED ALTERNATE PANEL CUT-OUT RECOMMENDED PANEL CUT-OUT 4 PIN 5 PIN 6 PIN 7 PIN CONTACTS AS VIEWED FACING PANEL-MOUNT CONNECTORS ALL DIMENSIONS ARE REFERENCE ONLY Please visit www.switchcraft.com for the most up-to-date product specifications. XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 S p e c i f i c at i o n s Mechanical Specifications Life: Wire Sizes: Operating Forces: 1000 minimum insertion / withdrawal cycles 14-26 AWG Insertion: 8lb. nominal, 10lb. maximum Withdrawal: 5lb. nominal, 7lb. maximum Electrical Specifications Voltage Rating: Current Rating: Insulation Resistance: Contact Resistance: Dielectric Withstanding Voltage: Capacitance: 500 VRMS 125 15A with 14 AWG wiring 12A with 16 AWG wiring 10A with 18 AWG wiring 8A with 20 AWG wiring 6A with 22 AWG wiring 4A with 24 AWG wiring 3A with 26 AWG wiring 1000 MΩ minimum, initial 50 mΩ maximum 1000 V (rms) ≤3 pF between contacts ≤6 pF between contacts and shell Environmental Specifications Operating Temperature Rating: Moisture Resistance: Insulation Resistance: Thermal Shock: Salt Atmosphere (Corrosion): Weathertight Ratings: Material Specifications -40ºC to +65ºC (-40ºF to +149°F) Mil-Std 202G Method 106G Mil-Std 202G Method 302 condition B Mil-Std 202G Method 107G Mil-Std 202G Method 101E condition B Panel, Cord & In-Line Connectors: IP66 when mated Panel-Mount Connectors: IP68, NEMA 250(6P) unmated Shell: Insulator Insert: Contacts, Pins or Sockets: Ground Spring Terminal: Latch: Handle: Cable Clamp: Seal Boot, Ring, Cable Strain Relief: Die-cast Zinc Alloy, Nickel or Black finish Thermoplastic, Green Copper Alloy, Silver or Gold plated Copper Alloy, Tin plated Die-cast Zinc Alloy, Nickel plated Die-cast Zinc Alloy, Nickel plated or Black Finish Black Thermoplastic option available Thermoplastic, Black Elastomer Please visit www.switchcraft.com for the most up-to-date product specifications. XLR - SEALED SERIES NEW PRODUCT BULLETIN 604 ORDERING CODE: CORD AND IN-LINE CONNECTORS AAA Z H AAA Series Harsh Environment (Sealed) # OF CONTACTS: 3-7 CABLE STRAIN-RELIEF SIZE: Leave blank for Cable O.D. range 0.150" - 0.285" [3.8 mm -7.2 mm] GENDER: F - F emale (Cord Only) M- Male (In-Line Only) HANDLE STYLE: Leave blank for Metal Handle P - P lastic handle FINISH: Leave blank for Nickel B - Black CONTACT PLATING: Leave blank for Silver AU - Gold ORDERING CODE: PANEL-MOUNT CONNECTORS B M H B Series Harsh Environment (Sealed) # OF CONTACTS: 3-7 CONTACT PLATING: Leave blank for Silver AU - Gold GENDER: M- Male FINISH: Leave blank for Nickel B - Black Please visit www.switchcraft.com for the most up-to-date product specifications.
