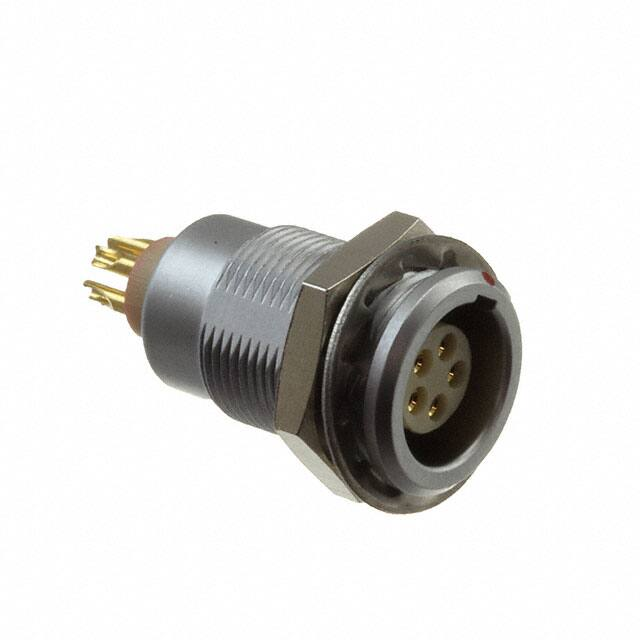

820B005-203RF01

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT - FIXED FRONT NUT UNITS = MM [INCHES] CHARACTERISSTICS MATERIALS SHELL : BRASS SHELL PLATING : NICKEL NUT : BRASS NUT PLATING : NICKEL LATCH SLEEVE : BRASS LATCH SLEEVE PLATING : NICKEL CONTACTS : COPPER ALLOY CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN. INSULATOR : PPS (HIGH TEMPERATURE) 820B YYY - 2 0 3 R F0 1 1 = GOLD FLASH SERIES 9.50 [0.374] FIXED FRONT NUT # OF POSITIONS (Ex. 002) **SEE CHART A** 2= FEMALE RoHS COMPLIANT SOLDER CUP (PANEL MOUNT) MECHANICAL DURABILITY: 5000 CYCLES OPERATING TEMP. RANGE: -40 C ~ +200 C PROCESS TEMPERATURE : 260 C FOR 5 SECONDS MAX. TORQUE VALUE : 2.5 Nm [22.1 IN/lbs] SHIELDING: 75dB @ 10MHz 40dB @ 1GHz NICKEL/CHROME PLATED SHELL 0.780 19.81 0.655 16.64 0.052 1.32 0 9.1 8] 35 [0. 0.323 8.20 (ACROSS FLATS) 0.327 8.30 0.425 10.80 M9*0.5 0.392 9.94 IP RATING: 50 CHART A PANEL CUTOUT TOLERANCE = +0.10, -0.0 [+0.004, -0.00] **VIEW FROM TERMINATION END** = KEY LOCATION MAX PANEL THICKNESS = 5.50 [0.217] 1 1 1 2 POSITION 22 AWG MAX. 10 AMP MAX. PIN = 0.90 [0.035] CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1000V WORKING VOLTAGE = 330V 3 POSITION 22 AWG MAX. 8 AMP MAX. PIN = 0.90 [0.035] CONTACT RESISTANCE = 6 mΩ TEST VOLTAGE = 1200V WORKING VOLTAGE = 400V 4 POSITION 24 AWG MAX. 7 AMP MAX. PIN = 0.70 [0.028] CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V RoHS COMPLIANT N C THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF NorComp AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. 1 1 1 1 5 POSITION 24 AWG MAX. 6.5 AMP MAX. PIN = 0.70 [0.028] 6 POSITION 28 AWG MAX. 2.5 AMP MAX. PIN = 0.50 [0.020] 7 POSITION 28 AWG MAX. 2.5 AMP MAX. PIN = 0.50 [0.020] 9 POSITION 28 AWG MAX. 2 AMP MAX. PIN = 0.50 [0.020] CONTACT RESISTANCE = 7.5 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 850V WORKING VOLTAGE = 280V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 800V WORKING VOLTAGE = 260V CONTACT RESISTANCE = 10 mΩ TEST VOLTAGE = 600V WORKING VOLTAGE = 200V NorComp DRAWN: B. BRIDGES DATE: 01-12-18 SCALE: N.T.S. SHEET 1 DWG NO. OF 1 820BYYY-203RF01 REV: 2
