REVISION D
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
DO NOT
SCALE FROM
THIS PRINT
ACPK-16-XX-X-X-P-X
KEY FEATURE
(SEE NOTE 2, SEE SHT. 4)
-1: ORANGE
-2: GREEN
-3: BLUE
-4: YELLOW
PLUG KIT
SIZE
ACCGC-16
ACCG-16-1-2
*
*
*
SUB-ACP-16-01-P-X
(SEE TABLE 2)
LEAD STYLE
-01: 14 POS (0.5 TERM/SKT), 26 - 30 AWG
-02: 10 POS (1.0 TERM/SKT), 20 - 24 AWG
-03: 4 POS PWR (1.5 TERM/SKT), 14 - 18 AWG
-04: 4 POS COMBO
(2 X COAX PLUG/JACK), CCA-316
(2 X 1.0 TERM/SKT), 20 - 24 AWG
-05: 4 POS COMBO
(3 X 1.5 TERM/SKT), 14 - 18 AWG
(1 X COAX PLUG/JACK), CCA-316
-06: 10 POS COMBO
(2 X 1.5 TERM/SKT), 14 -18 AWG
(8 X 0.5 TERM/SKT), 26 - 30 AWG
-07: 7 POS COMBO
(1 X COAX PLUG/JACK), CCA-316
(6 X 1.0 TERM/SKT), 20 - 24 AWG
STYLE
-P: PLASTIC
GENDER
-T: TERMINAL
-S: SOCKET
PLATING
-G: 10µ" GOLD ON CONTACT
-H: 30µ" GOLD ON CONTACT
* = NOT RELEASED FOR PRODUCTION
SUB-ACTHB-16-X-XX
(SEE TABLE 1 & NOTE 6)
FIG 1

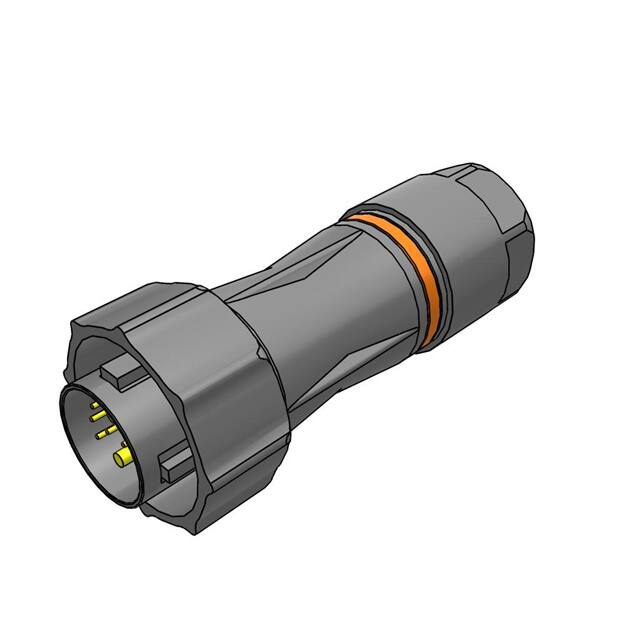

ACPK-16-02-X-T-P-1 SHOWN
*
*
SUB-ACSHB-16-X-XX
(SEE TABLE 1 & NOTE 6)
*
FIG 2
ACPK-16-02-X-S-P-1 SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
NOTES:
1. KIT COMPONENTS TO BE PACKAGED IN BAGS PER PACKAGING STANDARD CO-RF-WI-3001-M.
2. KEY FEATURE DETERMINES COLOR OF KEY RING AND DUSTCAP LANYARD IF APPLICABLE.
3. REFER TO DCA-ACP-16-P-X PRINT FOR DUST CAP.
4. TORQUE SPECIFICATION FOR CABLE NUT: 1.1Nm[10.00 IN-LB] - 1.7Nm[15.00 IN-LB].
5. CABLE DIAMETER SPECIFICATION: 5.08[.200] - 8.67[.341].
6. RECOMMENDED INSERTION TOOL: CAT-AC-16-M.
7. NOTE DELETED.
F:\DWG\MISC\MKTG\ACPK-16-XX-X-X-P-X-MKT.SLDDRW
*
*
*
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
ANGLES
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
MATERIAL:
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
SHELLS/LOCKING SLEEVE/NUT: NYLON, COLOR: BLACK
HOLDER BODY: PBT, COLOR: BLACK
TERMINALS: BRASS
CONTACTS: BRASS/BeCu
COLOR RING: SILICONE
GROMMET CAGE: NYLON, COLOR: BLACK
GROMMET: NITRILE
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
ACCLIMATE CIRC. FIELD TERM. KIT
DWG. NO.
ACPK-16-XX-X-X-P-X
BY: J. BORGELT 3/5/2011
SHEET 1 OF 4
-T END OPTIONS
REVISION D
-01: 14 POS
01
-03: 4 POS
-02: 10 POS
0.5 TERMINALS
1.5 TERMINALS
1.0 TERMINALS
11
09
02
10
01
02
08
09
01
02
03
12
14
08
03
07
04
07
13
05
04
10
05
06
03
-06: 10 POS COMBO
* -05: 4 POS COMBO
* -04: 4 POS COMBO
2 X COAX PLUG
2 X 1.0 TERMINALS
04
06
2X
8X
3 X 1.5 TERMINALS
1 X COAX PLUG
01
01 (COAX PLUG)
1.5 TERMINALS
0.5 TERMINALS
01
(1.5 TERM.)
10
08
04
(COAX PLUG)
04
03
09
07
03
04
02
06
02 (COAX PLUG)
* -07: 7 POS COMBO
02
(1.5 TERM.)
03
1 X COAX PLUG
6 X 1.0 TERMINALS
05
01
(COAX PLUG)
07
02
* = NOT RELEASED FOR PRODUCTION
*
06
03
05
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
04
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
F:\DWG\MISC\MKTG\ACPK-16-XX-X-X-P-X-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
ACCLIMATE CIRC. FIELD TERM. KIT
DWG. NO.
ACPK-16-XX-X-X-P-X
BY: J. BORGELT 3/5/2011
SHEET 2 OF 4
-S END OPTIONS
REVISION D
-01: 14 POS
11
-03: 4 POS
-02: 10 POS
0.5 SOCKETS
01
10
02
1.5 SOCKETS
1.0 SOCKETS
01
09
02
03
01
08
09
12
02
03
14
07
04
04
08
04
06
07
05
06
10
13
03
* -05: 4 POS COMBO
* -04: 4 POS COMBO
2 X COAX JACK
2 X 1.0 SOCKET
05
-06: 10 POS COMBO
3 X 1.5 SOCKETS
1 X COAX JACK
01
01 (COAX JACK)
2X
8X
01
(1.5 SOCKET)
1.5 SOCKETS
0.5 SOCKETS
10
08
03
09
02
03
04
04
(COAX JACK)
07
04
06
05
02 (COAX JACK)
02
(1.5 SOCKET)
03
* -07: 7 POS COMBO
1 X COAX JACK
6 X 1.0 SOCKETS
01
(COAX JACK)
07
* = NOT RELEASED FOR PRODUCTION
02
03
*
06
04
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
05
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
F:\DWG\MISC\MKTG\ACPK-16-XX-X-X-P-X-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
ACCLIMATE CIRC. FIELD TERM. KIT
DWG. NO.
ACPK-16-XX-X-X-P-X
BY: J. BORGELT 3/5/2011
SHEET 3 OF 4
REVISION D
KEY FEATURE
(SEE NOTE 2)
-2
-1
GREEN KEY RING
ORANGE KEY RING
-4
-3
YELLOW KEY RING
BLUE KEY RING
01
01
01
01
315°
REF
225°
REF
135°
REF
45°
REF
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
F:\DWG\MISC\MKTG\ACPK-16-XX-X-X-P-X-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
ACCLIMATE CIRC. FIELD TERM. KIT
DWG. NO.
ACPK-16-XX-X-X-P-X
BY: J. BORGELT 3/5/2011
SHEET 4 OF 4
