NOTES:
1. PLACE (1) ONE OF EACH KIT, IN A BAG WITH INSTRUCTION SHEET AND SEAL.
2. LABEL WITH CONXALL, PART NUMBER, DATE CODE, AND PART NUMBER BARCODE IS PLACED ON BAG.
ASS'Y P/N
SF3282-XPG-520
SF3282-XPG-530
SF3282-XPG-540
10
2
3
1
4
I.D. FOR CABLE
0.200
0.300
0.400
NO. OF CONTACTS: 2 to 12
9
11
CUSTOMER PRINT
SF3282-2PG-5XX
FACE VIEW
2 POSITION
POS 1, 2, 3, 5, 6, 7, 8,
10, 11 & 12 MOLDED
HALF CLOSED
SF3282-3PG-5XX
FACE VIEW
3 POSITION
POS 2, 4, 5, 6, 7, 8,
9, 10 & 11 MOLDED
HALF CLOSED
SF3282-4PG-5XX
FACE VIEW
4 POSITION
POS 2, 4, 6, 7, 9,
10, 11 & 12 MOLDED
HALF CLOSED
SF3282-5PG-5XX
FACE VIEW
5 POSITION
POS 1, 3, 5, 8, 10,
11 & 12 MOLDED
HALF CLOSED
SF3282-6PG-5XX SF3282-7PG-5XX
FACE VIEW
FACE VIEW
6 POSITION
7 POSITION
POS 3, 6, 9, 10,
POS 5, 8,10,
11 & 12 MOLDED
11 & 12 MOLDED
HALF CLOSED
HALF CLOSED
8
5
6
7
12
WIRE VIEW
SF3282-10PG-5XX SF3282-11PG-5XX SF3282-12PG-5XX

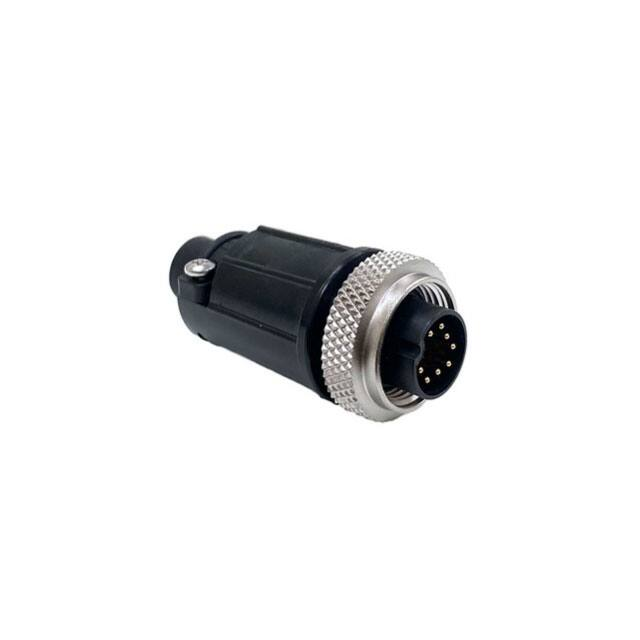

SF3282-8PG-5XX

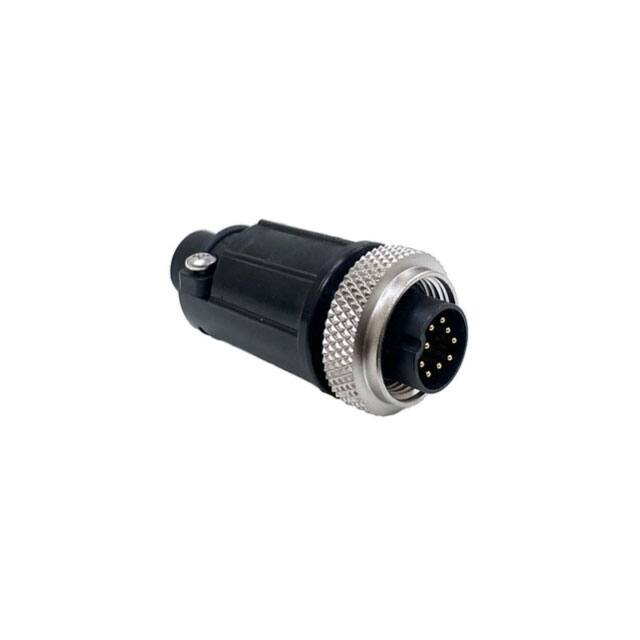

SF3282-9PG-5XX
FACE VIEW
FACE VIEW
FACE VIEW
FACE VIEW
FACE VIEW
12 POSITION
10 POSITION
11 POSITION
8 POSITION
9 POSITION
POS 11 & 12 MOLDED
POS 12 MOLDED
POS 2,10, 11 & 12
POS 10, 11 & 12
HALF CLOSED
HALF CLOSED
MOLDED HALF CLOSED MOLDED HALF CLOSED
BACKSHELL KIT
(2) #4 X 3/8 IN.
SELF TAPPING SCREW
MAT'L: STAINLESS STEEL
SF3282-XPG-5XX_CD
PART
NUMBER:
(2-12) POS. INSERT
MAT'L: UV PBT, BLACK
STRAP
MAT'L: SUPER TOUGH NYLON,
BLACK
HOUSING KIT
2-12 POSITION INSERT KIT
O-RING
MAT'L: NEOPRENE, BLACK
HOUSING
MAT'L: BRASS,
NICKEL PLATED
COUPLING RING
MAT'L: BRASS,
NICKEL PLATED
.168±.015
GROMMET
MAT'L: RUBBER, BLACK
FRICTION WASHER
MAT'L: NYLON, CLEAR
INSULATOR
MAT'L: PET
(2-12) #20 PIN SOLDER CUP CONTACTS
MAT'L: BRASS ALLOY, GOLD PLATE
CUSTOMER APPROVAL
0A
THIS DOCUMENT CONTAINS CONFIDENTIAL
INFORMATION PROPRIETARY TO CONXALL
CORPORATION. ANY REPRODUCTION,
DISCLOSURE, OR USE OF THIS
DOCUMENT /INFORMATION IS EXPRESSLY
PROHIBITED UNLESS AUTHORIZED IN
WRITING BY CONXALL CORPORATION.
APPROVED BY:
DATE:
JGK
REV. INIT.
03/31/20
DATE
ALL INFORMATION ILLUSTRATED IS
THE PROPERTY OF "CONXALL
CORPORATION." UNAUTHORIZED
DUPLICATION OR DISTRIBUTION OF
THIS DOCUMENT IS PROHIBITED.
ALL UNITS ARE IN FEET,
INCHES, FRACTION OF INCHES
AND DECIMALS.
COPPER TAPE
SUPPLIED LOOSE
RoHS COMPLIANT
UNLESS OTHERWISE SPECIFIED
TOLERANCES:
3 PLACE DECIMALS ±.005
ANGLES ±1°
FRACTIONS ±1/16
= CRITICAL CHARACTERISTIC
FLAG PER SPEC. XXXX
BACKSHELL
MAT'L: UV PBT, BLACK
CREATED FOR PDR#15019.
DESCRIPTION
ORIG. DRAWN BY:
JGK
DATE:
03/31/20
CHECKED BY:
601 E. WILDWOOD VILLA PARK, IL 60181
TITLE:
APPROVED BY:
SCALE
NTS
SIZE
B
FILE:
SF3282-XPG-5XX_CD
CONNECTOR ASSEMBLY KIT
SHEET
1 OF 1
CUSTOMER:
DIRECTORY:
PART
NUMBER:
SLW
(2-12) #20 PIN CONTACTS
SHIELDED MULTI-CON-X
STANDARD PRODUCT
SF3282-XPG-5XX_CD
REV
0A
