PHG.0B.306.CLLD52Z

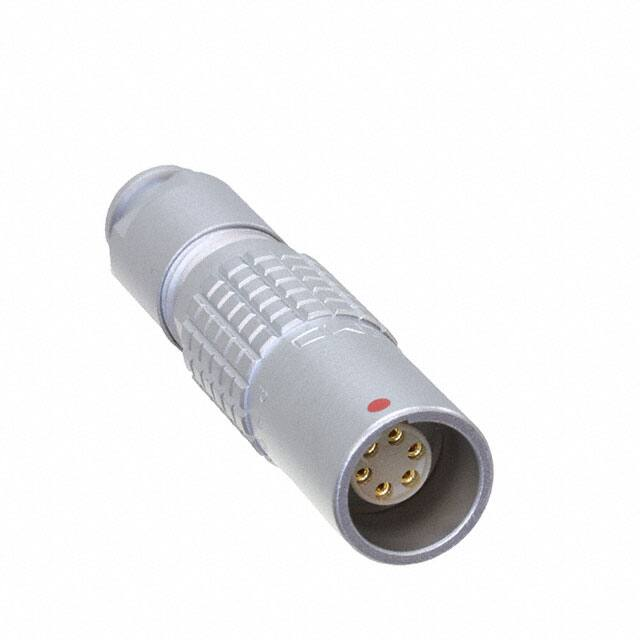

PHG.0B.306.CLLD52Z www.lemo.com SUMMARY # Wires Low voltage 6 Image is for illustrative purpose only Series 0B Termination type Female solder IP rating 50 AWG wire size 34.00 - 28.00 Cable Ø 4.30 - 5.20 mm Status active Matching parts FGG.0B.306.CLAD52Z Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model PH*: Free receptacle, cable collet and nut for fitting a bend relief Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 10.01 g Performance Configuration 0B.306 : 6 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 2.5 Amps Specifications Contact Type: Solder Contact Dia.: 0.5 mm (0.02in) Bucket Dia.: 0.45 mm (0.018in) Max. Solid Conductor: 0.09 mm^2 (AWG 28) Max. Stranded Conductor: 0.09 mm^2 (AWG 28) R (max): 8.7 mOhm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-shell): 650 V (AC), 920 V (DC) Vtest (contact-contact): 850 V (AC), 1200 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L S1 S2 mm. 9.5 34.5 8 7 in. 0,37 1,36 0,31 0,28 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Spanner wrench: DCD.0B.005.PA070 Cables CMN.06.T28.044PGZE Grey CMN.06.T28.044PNZE 6280 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
