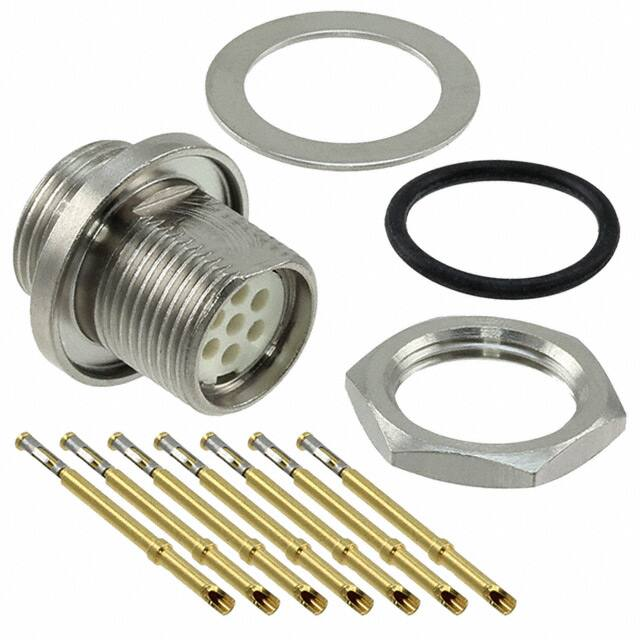

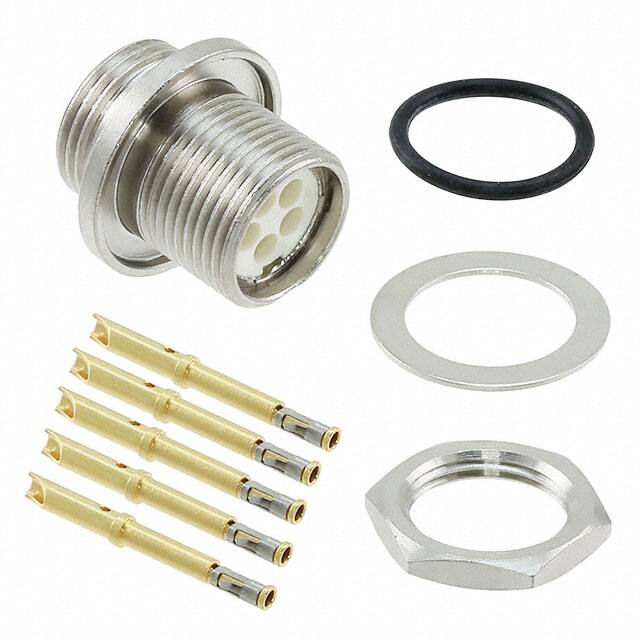

TS2P5F20

TS Series Dura-Twist™ Threaded Locking Connectors NPB 632 Durable nickel plated brass housing is sealed to IP68 Rear or front mounting options available on panel mounts Threaded locking mechanism for a secure and easy connection Available with up to 9 contacts FEATURES • • • • • • • • • Easy, blind mating Compact, 1/2” connector size Waterproof to IP68 Can withstand the temperature and pressure of autoclave sterilization 360 ° EMI Shielding Available with #20 contacts or #26 contacts Rear mount or front mount panels available Contacts can be soldered or crimped (shipped unassembled, assembly tools available) Factory molded cables available with straight or right angle cable end options Cable to cable in-line connector also available APPLICATIONS Medical devices Audio connections Outdoor data acquisition devices Test and Measurement Agriculture electronics Safety and Security Harsh environments General electronic applications 5555 N ELSTON AVE, CHICAGO, IL 60630 - 773.792.2700 - SALES@SWITCHCRAFT.COM TS Series Dura-Twist™ Threaded Locking Connectors NPB 632 OVERALL DIMENSIONS 0.60 15.3 0.60 15.3 1.38 MAX 35.0 MAX 0.34 8.7 0.10 2.6 0.19 MAX PANEL THICKNESS 4.8 MAX CABLE END 0.12±0.01 TYP 3.1±0.3 FRONT PANEL MOUNT 1.44 MAX 36.6 MAX 0.45 11.5 0.19 MAX PANEL THICKNESS 4.8 MAX REAR PANEL MOUNT IN-LINE/ CABLE-TO-CABLE CONTACT LAYOUTS (REAR/WRING SIDE) / RECOMMENDED PANEL CUTOUT 2 Position #20 Socket 3 Position #20 Socket 4 Position #20 Socket 5 Position #20 Socket 6 Position #26 Socket 7 Position #26 Socket 8 Position #26 Socket 9 Position #26 Socket 0.400±0.003 10.2±0.1 2 Position #20 Pin 3 Position #20 Pin 4 Position #20 Pin 5 Position #20 Pin 6 Position #26 Pin 7 Position #26 Pin 8 Position #26 Pin 9 Position #26 Pin 0.430±0.003 10.9±0.1 ORDERING CODE Sealing Caps (Optional) Cable End: TS2CCAP Panel: TS2PCAP Cable to Cable: TS2LCAP VISIT WWW.SWITCHCRAFT.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS TS Series Dura-Twist™ Threaded Locking Connectors NPB 632 SPECIFICATIONS MECHANICAL: Mating / Locking Type: Life: Operating Forces: Vibration: Panel Hex Nut Torque: Cable Securing System: Threaded coupling 5,000 cycles minimum 10 lb. [44.5 N] max. insertion/withdrawal Mil-Std 202G Method 201A 40 in-lb [4.5 Nm] maximum Threaded on metal clamp ELECTRICAL: Voltage Rating: Current Rating: Insulation Resistance: Contact Resistance: 125 V AC/DC for 2-5 contacts 30 V AC/DC for 6-9 contacts 10A max for 2 position 2A max for 9 position Refer to website for detailed information 1000 MΩ minimum 10 mΩ typical ENVIRONMENTAL: Temperature Limits: Operating Temperature: Moisture Resistance: Insulation Resistance: Thermal Shock: Salt Atmosphere : Ingress Protection : -40ºC to +135ºC (-40ºF to +275°F) Refer to website for detailed information Mil-Std 202G Method 106G Mil-Std 202G Method 302 Mil-Std 202G Method 107G Mil-Std 202G Method 101E IP66, IP67, IP68 per IEC60529, NEMA 250 6P MATERIAL: Outer Shell: Hardware: Interior Metal Components: Electrical Insulator: Seal O-rings: Contacts: Copper alloy, electroless nickel plated Copper alloy, nickel plated Copper alloy, nickel plated LCP, natural Thermoplastic eastomer Copper Alloy, gold plated, with stainless steel locking clip 5555 N ELSTON AVE, CHICAGO, IL 60630 - 773.792.2700 - SALES@SWITCHCRAFT.COM
