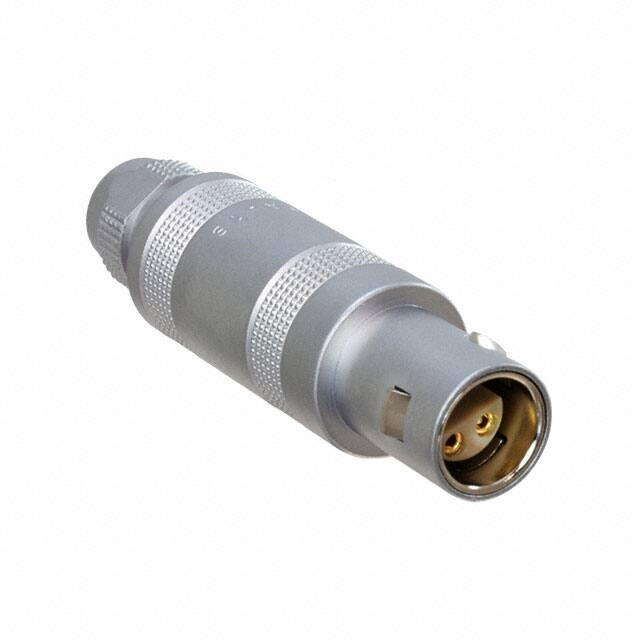

FFA.1S.304.CLAC52

FFA.1S.304.CLAC52 www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 1S Termination type Male solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 4.20 - 5.20 mm Status active Matching parts ERA.1S.304.CLL Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FFA*: Straight plug, cable collet Keying Hermaphroditic keying (half moon insert) with male pin 1 Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 17.35 g Performance Configuration 1S.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.0354in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) R (max): 4.8 mOhm Vtest: 1200 V (AC), 1800 V (DC) Air clearance min.: 1.1 mm Creepage distance min.: 1.1 mm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +250°C Humidity (max): 144 hr DRAWINGS Dimensions A L M S2 mm. 12 42.5 31.5 8.5 in. 0,47 1,67 1,24 0,33 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.1S.015.PA085 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.04.T22.047QGC TPR Grey CMN.04.T22.048QGZE TPR (medical) Grey 140240 PVC Black 140250 PVC Grey 40260 PVC Black 4080 PVC Grey 4221 PVC Black 4280 PVC Black 80080 PVC Grey 80082 PVC Red 80084 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
