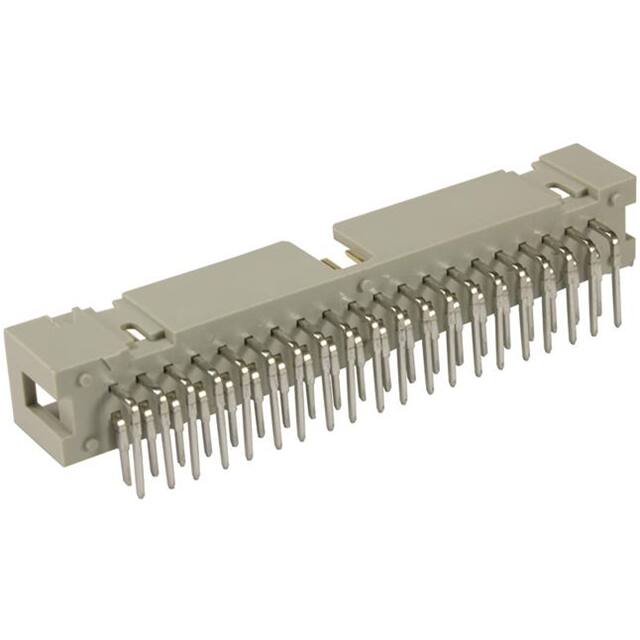

SEK IEC 60 603-13 Number of contacts 6--64 Low-profile male header, angled solder pins Identification No. of contacts Male header with angled solder pins No. of A B E contacts 6 09 18 506 323 6 15.2 12.78 2.54 x 2 = Length: 2.9 mm Part number Drawing Dimensions in mm 5.08 10 09 18 510 323 10 20.3 17.86 2.54 x 4 = 10.16 14 09 18 514 323 14 25.4 22.94 2.54 x 6 = 15.24 16 09 18 516 323 16 27.9 25.48 2.54 x 7 = 17.78 20 09 18 520 323 20 33.0 30.56 2.54 x 9 = 22.86 26 09 18 526 323 26 40.6 38.18 2.54 x 12 = 30.48 SEK 30 09 18 530 323 30 45.72 43.26 2.54 x 14 = 35.56 Solder pins for 1 ± 0.1 mm dia. hole 34 09 18 534 323 34 50.8 48.34 2.54 x 16 = 40.64 40 09 18 540 323 40 58.4 55.96 2.54 x 19 = 48.26 50 09 18 550 323 50 71.3 68.66 2.54 x 24 = 60.96 60 09 18 560 323 60 84.0 81.36 2.54 x 29 = 73.66 64 09 18 564 323 64 89.1 86.44 2.54 x 31 = 78.74 Marking No. 1 contact No. 2 contact No. 1 contact No. 2 contact For performance level 3 please specify digit 7 6 For performance level 2 please specify digit No. 1 contact = 0.76 µm (30 µinch) Au or PdNi eqivalent S4 5 * Identification Part number Locking lever for female connector with strain relief 08 14 * Not normally kept in stock Dimensions in mm Strain relief clamp in conjunction with low-profile male header When the security of latching is required and space is a p ­ remium, these locking levers can be fitted onto the strain relief of the ­HARTING female connector. Drawing 09 18 000 99054) Female connector Low-profile male header 1) 2)  o polarization slot for 6, 10 or 14 way male header N No polarization slot for 6 way male header 3) 4)  itch tolerance: ± 0.1 P Order 2 per female connector
