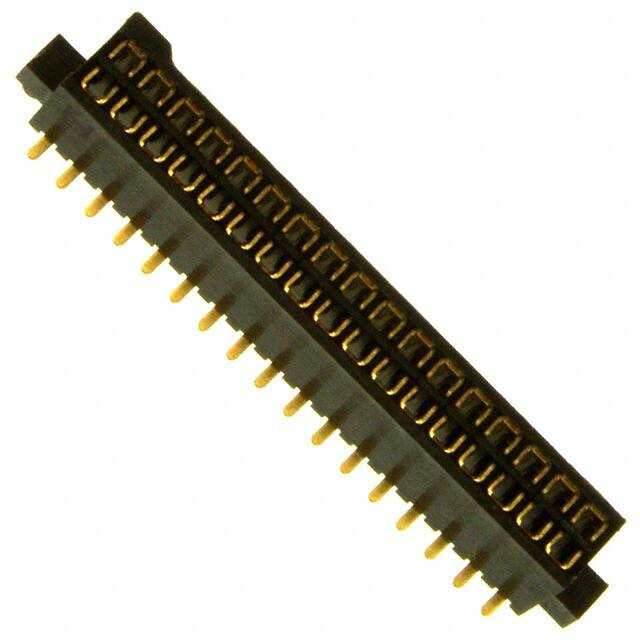

SFH31-NPPB-D17-SP-BK

Headers .050” [1.27 mm] Contact Centers, Female Header, SMT with Posts- SFH Series Mates with SBH31 series (See opposite page) SPECIFICATIONS • Operating Temperature: -40°C to +105°C • Processing Temperature: 230°C Max. for 60 seconds, (260°C Max. for 10 seconds) • UL Flammability Rating: 94V-0 • Contact Resistance: 20 milli Ohms Max. • Current Rating: 1 Amp • Dielectric Withstanding: 500 VAC • Insulation Resistance: 5000 Megohms PART NUMBER OPTIONS SFH31 - N P P B - D 10 - SP - BK COLOR BK = Black SERIES SFH31 = Female Header, .050” [1.27 mm] Contact Centers by .050” [1.27 mm] Row Spacing TERMINATION TYPE SP = Surface Mount with Guide Posts INSULATOR MATERIAL N = Nylon NUMBER OF CONTACT POSITIONS 03 thru 50 CONTACT MATERIAL P = Phosphor Bronze Headers NUMBER OF ROWS D = Dual Row CONTACT FINISH - RoHS Compliant P = Gold Flash Overall E = .000100” Pure Tin, Matte, Overall CONTACT CENTERS B = .050” [1.27 mm] DIMENSIONS For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com Dimensions in [ ] are in millimeters, all others are in inches. .050 [1.27] .122 [3.10] .138 [3.50] .173 .142 [3.60] .059 [1.50] .079 [2.00] +0.15 +.006 4.40 -0.00 - .000 .173 [4.40] .098 [2.50] .006 [0.15] .050 [1.27] .177±.006[4.50±0.15] SURFACE MOUNT with Posts (SP) Example P/N: SFH31-NPPB-D20-SP-BK .051[1.30] .016 [0.40] SQ. .039 [1.00] .051[1.30] .063 [1.60] Ø .031[0.80] Ø .047 [1.20] www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com 101
