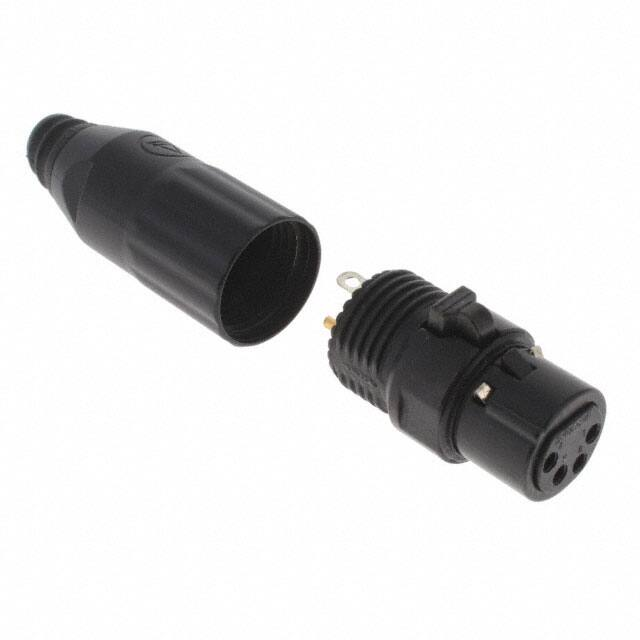

AAA4FBAUZ

HANDLE AAAHZ SHOWN FLEX RELIEF CONNECTOR QT3FZ SHOWN AAA3FZ SHOWN 4 PIN 3 PIN 5 PIN 7 PIN 6 PIN CONTACTS AS VIEWED FACING FEMALE CONECTOR AAA F Z 2.97±0.12 F 75.4±3.05 SMALLER CABLES SHORTEN ASSEMBLY 0.71 18.0 FLAT SERIES: Q-G CONNECTOR # OF CONTACT SOCKETS: 3, 4, 5, 6 OR 7 0.65 16.4 FLAT 0.62 15.8 GENDER: FEMALE 0.78 19.7 HANDLE STYLE: BLANK - METAL HANDLE (SEE FINISH BELOW) P - PLASTIC HANDLE, BLACK FINISH: BLANK - NICKEL HANDLE & CONNECTOR, WITH BLACK FLEX RELIEF & GREEN INSERT B - BLACK HANDLE & CONNECTOR, WITH BLACK FLEX RELIEF & BLACK INSERT W - WHITE HANDLE & NICKEL FINISH CONNECTOR WITH WHITE FLEX RELIEF & GREEN INSERT 0.84 21.2 0.49 12.3 G CONTACT SOCKET PLATING: BLANK - SILVER AU - GOLD FLEX RELIEF STYLE: BLANK - FLEX RELIEF I.D. 0.135 [3.4mm] RECOMMENDED CABLE O.D. 0.100 - 0.220 [2.5mm - 5.6mm] L - FLEX RELIEF I.D. 0.225 [5.7mm] RECOMMENDED CABLE O.D. 0.220 - 0.285 [5.6mm - 7.2mm] SEE TABLE FOR FLEX RELIEF SIZE 1.99 50.6 0.87 22.0 F CUSTOMER DRAWING NOTES: 1. CONNECTORS AND HANDLES ARE SHIPPED SIDE BY SIDE OR IN BULK. G 27473 03/27/15 PC TJK 2. MATERIALS: HANDLE METAL - ZINC ALLOY, NICKEL PLATED OR BLACK OR WHITE PAINTED F HANDLE PLASTIC - THERMOPLASTIC, BLACK CABLE CLAMP - THERMOPLASTIC, BLACK FLEX RELIEF - THERMOPLASTIC, BLACK OR WHITE HOUSING AND LATCH - ZINC ALLOY, NICKEL OR BLACK SATIN CHROME PLATED INSULATOR - THERMOPLASTIC, GREEN OR BLACK GROUND TERMINAL - SPECIAL COPPER ALLOY, TIN PLATED CONTACT SOCKETS - SPECIAL COPPER ALLOY, SILVER OR GOLD PLATED O-RING - THERMOPLASTIC RUBBER, BLACK F 27081 01/25/13 BL TJK 3. THESE PRODUCTS ARE RoHS COMPLIANT. E 25891 9-9-08 SRC TJK D 25711 10-17-07 JGK TJK UNLESS OTHERWISE SPECIFIED 1. ALL DIMENSIONS IN INCHES - TWO PLACE DECIMALS 0.01 - THREE PLACE DECIMALS 0.005 - ANGLES 1 - ALL DIA. CONCENTRIC WITHIN 0.005 T.I.R. C 24940 3-11-05 JL TJK B 24552 10-13-03 JL BRH 2. FEATURES ON THE SAME CENTERLINE MUST BE ALIGNED WITHIN 0.002 A 24446 8-12-03 JL BRH 3. REMOVE ALL BURRS REV ECO NUMBER DATE REVISIONS BY APVD THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. STAR SYMBOL DENOTES CRITICAL DIMENSION DO NOT SCALE DRAWING SolidWorks CAD File SIZE WIDTH MULT FINISH 03-07-03 NAME BY BRH SPEC No. SCALE 1.5:1 CHKD BRH 8-12-03 APVD BRH 8-12-03 FEMALE XLR CONNECTOR, RoHS B TEMPER MATERIAL SPEC No. FIRST USED ON DATE DRAWN LBS/M SHEET PART No. 1 OF AAA_FZ SERIES 1 REV G
