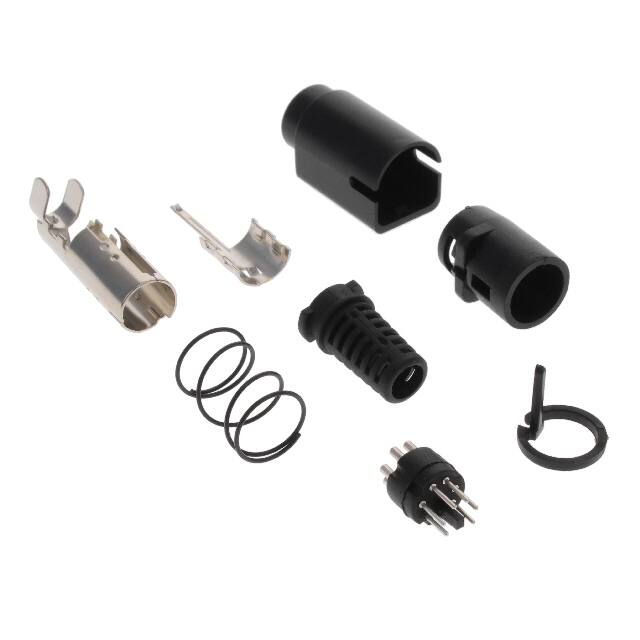

KMDLAX-6P

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number KMDLAX-3P-KPPSR Part Number Builder KMDLAX 3 P Series Number of Contacts Contact Type MINI/CIRCULAR DINs: KMDLAX Series Snap and Lock Cable Mount Plug Product Features Series KMDLAX - Snap and Lock Plug Performance Specifications Number of Contacts 3 Contacts 4 Contacts 5 Contacts 6 Contacts 7 Contacts 8 Contacts Audio, Video, Lap Top Computer and Other Portable Digital Equipment Applications Snap and Lock Feature Helps Prevent Accidental Disconnects Supplied in Kits Ready for Assembly Gold Plating Available Upon Request Mechanical Characteristics Suggested Wire Gauge 26-30 Awg. Insertion Force 4.5kg Max. Extraction Force 0.5kg - 3.0kg Durability 1500 Cycles Strain Relief Diameters Contact Type P - Plug Strain Relief Diameters Blank - Ø5.5mm (Standard) KPPSR - Ø6.35mm Contact Kycon Other Options KMDLAX Series Dimensions in mm Ø0.65 13.00 8.95 6.5± 0.2 Materials and Finish Insert Nylon, Black Color, ULHB Rated Plastic Shell ABS, UL 94HB Rated Contact Material Brass, Silver Plated Shield Iron Steel, Nickel Plated KPPSR Electrical Characteristics 50.0±0.8 Contact Current Rating 2.0A Max. @12V DC and 30°C 1.25A Max. @32V DC and 30°C 1.0A Max. @32V DC and 45°C Insulation Resistance 50 Megohm Min. at 250V DC Dielectric Withstanding Voltage 250V AC for 1 Minute Operating Temperature -25°C to + 80°C Ø5.5 Click here for our assembly videos Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0915
