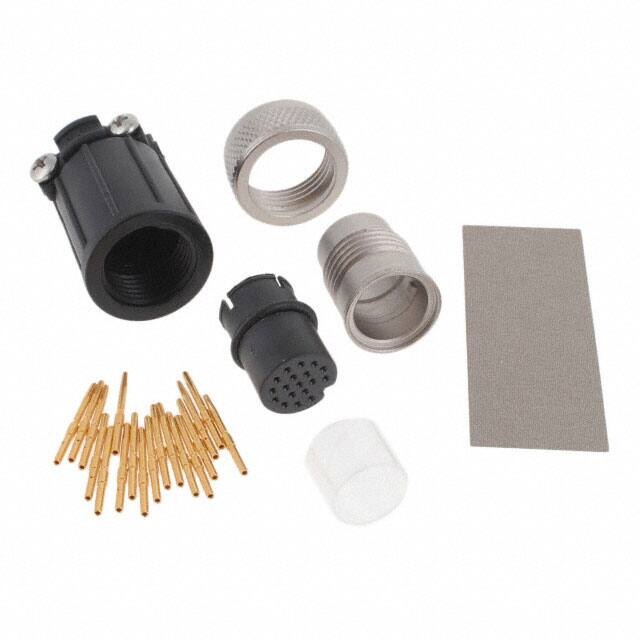

SF6980-18SG-530

NOTES: 1. CRIMP CONTACTS SUPPLIED UNASSEMBLED. 2. REFER TO DRAWING HPSFMISTD FOR CONTACT PATTERNS. 3. DIMENSIONS ARE REFERENCE ONLY, IN INCHES [mm], WITHIN ±0.015 UNLESS OTHERWISE NOTED. CABLE-END CONNECTOR PART NUMBERS: S F 6 9 8 X - X S G - 5XX BACKSHELL KIT: 520 = BACKSHELL 0.220 [5.6] 530 = BACKSHELL 0.330 [8.4] MAT'L: THERMOPLASTIC INSERT COPPER ALLOY,GOLD PLATED CONTACTS ELASTOMERIC SEAL O-RING CUSTOMER PRINT # OF CONTACTS: 9 - 18 SOLDER CONTACTS INSERT KIT OPTION, SEE CONNECTOR PART NUMBERS PLUG INSERT KIT 0.763 19.4 REF WITH GROMMET I.D. WITH GROMMET I.D. CONTACTS STYLE: 0 = CRIMP 2 = SOLDER CONDUCTIVE TAPE 1.429 36.3 REF KEYWAY KEYWAY GROMMET FACE VIEW SF6982-18SG-520 SHOWN 0.114 2.9 REF 0.789 20.0 REF WIRING VIEW SF6982-18SG-520 SHOWN WITHOUT BACKSHELL COUPLING RING HOUSING INSULATING TUBE BACKSHELL KIT MAT'L: THERMOPLASTIC SHELL & STRAP, ELASTOMERIC GROMMET, STAINLESS STEEL SCREWS PLUG ASSEMBLY KIT SF698X-XSG-5XX MAT'L: COPPER ALLOY, NICKEL PLATED HOUSING & COUPLING RING, NICKEL/COPPER/POLYESTER FABRIC WITH CONDUCTIVE ADHESIVE TAPE, MYLAR INSULATING TUBE CRIMP CONTACTS INSERT KIT OPTION, SEE CONNECTOR PART NUMBERS PART NUMBER: CUSTOMER APPROVAL 0.699 17.8 REF 0.024 0.6 REF (WHEN ASSEMBLED) THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. APPROVED BY: DATE: RoHS COMPLIANT 0A PNK REV. INIT. 2-8-18 DRAWING CREATED PER PDR17006 DATE DESCRIPTION ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX ORIG. DRAWN BY: PNK DATE: 2-8-18 CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE NTS SIZE B FILE: SF698X-XSG-5XX_CD SHEET 1 OF 1 CUSTOMER: DIRECTORY: PART NUMBER: SLW CABLE-END CONNECTOR 9-18 #26 SOCKET CONTACTS SHIELDED MINI-CON-X STANDARD PRODUCT SF698X-XSG-5XX REV 0A
