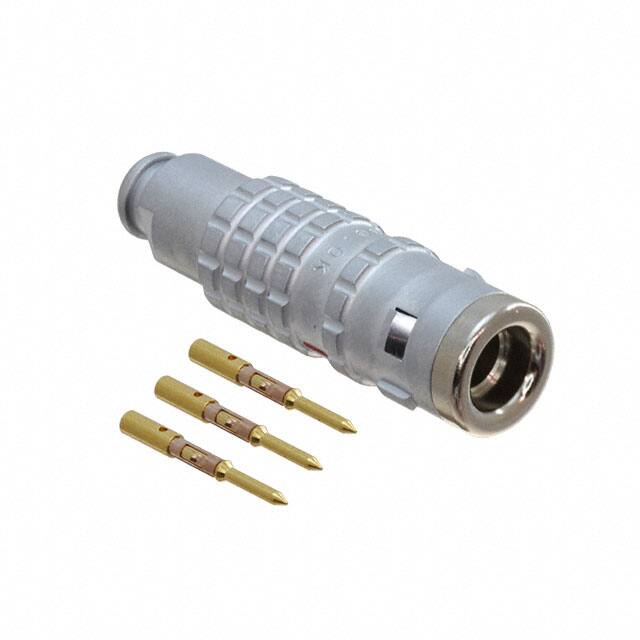

FGG.0K.303.CYCC50Z

FGG.0K.303.CYCC50Z www.lemo.com SUMMARY # Wires Low voltage 3 Image is for illustrative purpose only Series 0K Termination type Male crimp IP rating 68 AWG wire size 24.00 - 20.00 Cable Ø 4.60 - 5.00 mm Status active Alternative part FGG.0K.303.CYCK50Z Matching parts EGG.0K.303.CYM Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet and nut for fitting a bend relief Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 13.17 g Performance Configuration 0K.303 : 3 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 8 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 R (max): 4.8 mOhm Vtest (contact-shell): 1600 V (AC), 2300 V (DC) Vtest (contact-contact): 1700 V (AC), 2400 V (DC) Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +200°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S2 mm. 11 34 23 7 in. 0,43 1,34 0,91 0,28 RECOMMENDED BY LEMO LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Tools Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 20-22-24/6-5-5 Positionner: DCE.91.070.BVC Extractor: DCF.91.090.2LT Replacement contact: FGG.0B.560.ZZC Spanner wrench: DCD.0E.007.PA070 Caps: BFG.0K.100.NAS Cables CMN.03.T20.049PGZE Grey CMN.03.T20.049PNZE 130240 PVC Black 3220 PVC Black 60080 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
