ECG.0B.303.CYM

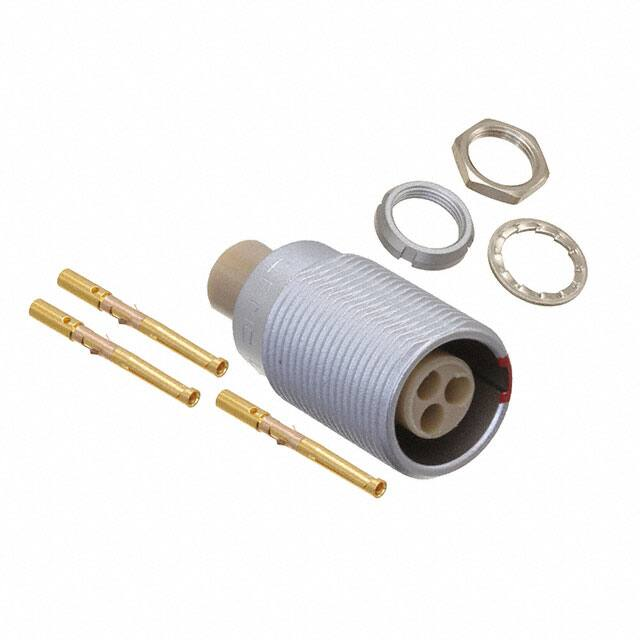

ECG.0B.303.CYM www.lemo.com SUMMARY # Wires Low voltage 3 Image is for illustrative purpose only Series 0B Termination type Female crimp IP rating 50 AWG wire size 24.00 - 20.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.0B.303.CYCD32 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EC*: Fixed receptacle with two nuts (back panel mounting) Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 6.08 g Performance Configuration 0B.303 : 3 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 8 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 1600 V (AC), 2250 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-contact): 1700 V (AC), 2400 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 12 12.4 5.5 20.7 2.5 19.1 8.2 11 M9x0.6 in. 0,47 0,49 0,22 0,81 0,10 0,75 0,32 0,43 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 20-22-24/6-5-5 Positionner: DCE.91.070.BVM Extractor: DCF.91.090.2LT Spanner 2: DCH.91.121.PA Replacement contact: EGG.0B.660.ZZM Cables CMN.03.T20.049PGZE Grey CMN.03.T20.049PNZE CMN.03.T28.031PGCE PVC CMN.03.T28.031PGZE CMN.03.T28.031PNCE GREY Grey PVC Black 130240 PVC Black 130250 PVC Grey 230500 PVC Grey 230750 PVC Grey 30110 PVC Grey 30141 PVC Grey 30260 PVC Black 3041 PVC Grey 3050 PVC Black 3081 PVC Black 3220 PVC Black 3280 PVC Black 60080 PVC Grey CMN.03.T28.031PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
