HGG.1B.306.CLLPV

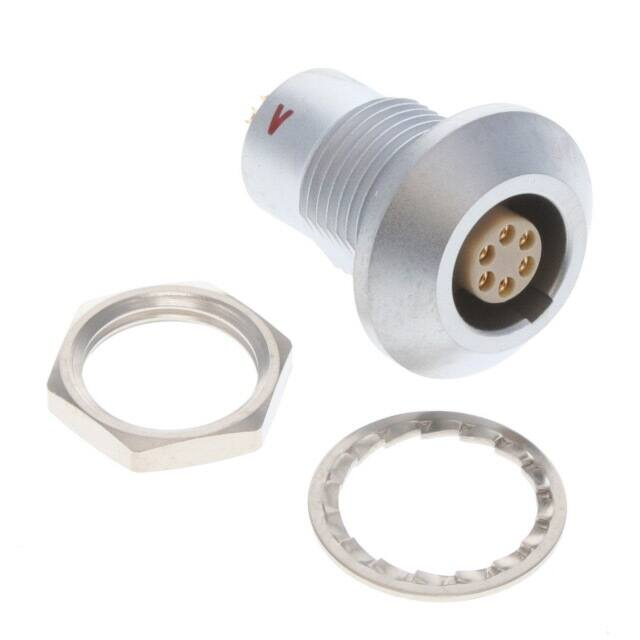

HGG.1B.306.CLLPV www.lemo.com SUMMARY # Wires Low voltage 6 Image is for illustrative purpose only Series 1B Termination type Female solder IP rating 68 AWG wire size 30.00 - 22.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.1B.306.CLAD42 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model HG*: Fixed receptacle, nut fixing, watertight or vacuum-tight Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant PV : Watertight / Vacuum-tested Weight 13.44 g Performance Configuration 1B.306 : 6 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 7 Amps Specifications Contact Type: Solder Contact Dia.: 0.7 mm (0.028in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 6.1 mOhm LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Vtest (contact-shell): 1200 V (AC), 1700 V (DC) Vtest (contact-contact): 1050 V (AC), 1490 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -20°C / +100°C Humidity (max): 1000 hr Pressure: 60 bars 12NC part number: 4022.438.33303 DRAWINGS Dimensions A B E L M S1 S3 e mm. 18 16 7 26.6 4.5 10.5 14 M12x1.0 in. 0,71 0,63 0,28 1,05 0,18 0,41 0,55 RECOMMENDED BY LEMO LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Tools Cables CMN.06.T26.037QGZE TPR (medical) Grey CMN.06.T28.031PGCE PVC GREY CMN.06.T28.031PGZE CMN.06.T28.031PNCE Grey PVC Black CMN.06.T28.031PNZE CMN.06.T28.042QBCE TPR (medical) CMN.06.T28.044PGZE Grey CMN.06.T28.044PNZE 106220 PVC Black 106240 PTFE White 12080 PVC Grey 160140 PVC Grey 160240 PVC Black 160260 PVC Black 260250 PVC Grey 60260 PTFE White 6280 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
