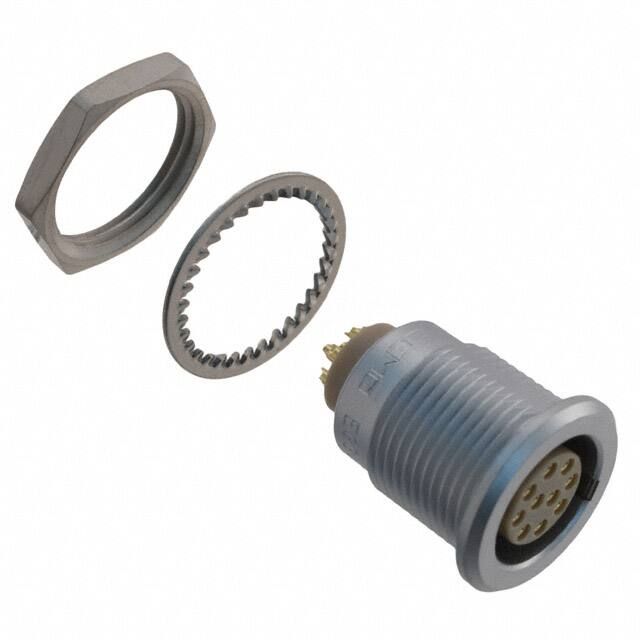

EGG.3B.310.CLL

EGG.3B.310.CLL www.lemo.com SUMMARY # Wires Low voltage 10 Image is for illustrative purpose only Series 3B Termination type Female solder IP rating 50 AWG wire size 28.00 - 20.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.3B.310.CLAD12 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 27.47 g Performance Configuration 3B.310 : 10 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 12 Amps Specifications Contact Type: Solder Contact Dia.: 1.3 mm (0.051in) Bucket Dia.: 1 mm (0.039in) Max. Solid Conductor: 0.5 mm^2 (AWG 20) Max. Stranded Conductor: 0.5 mm^2 (AWG 20) R (max): 3.6 mOhm Vtest (contact-shell): 900 V (AC), 1270 V (DC) Vtest (contact-contact): 1250 V (AC), 1770 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 22 25 11.5 30.7 2 28.1 16.5 22 M18x1.0 in. 0,87 0,98 0,45 1,21 0,08 1,11 0,65 0,87 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.10.T20.080PGZE Grey CMN.10.T20.080PNZE CMN.10.T20.080QGC TPR Grey CMN.10.T22.068QGZE TPR (medical) Grey CMN.10.T28.052PGZE Grey CMN.10.T28.052PNZE CMN.10.T28.053QGZE TPR (medical) Grey 110220 PVC Black 110240 PTFE White 110260 PTFE White 110280 PVC Black 210140 PVC Grey 210240 PVC Black 210250 PVC Grey 210260 PVC Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
