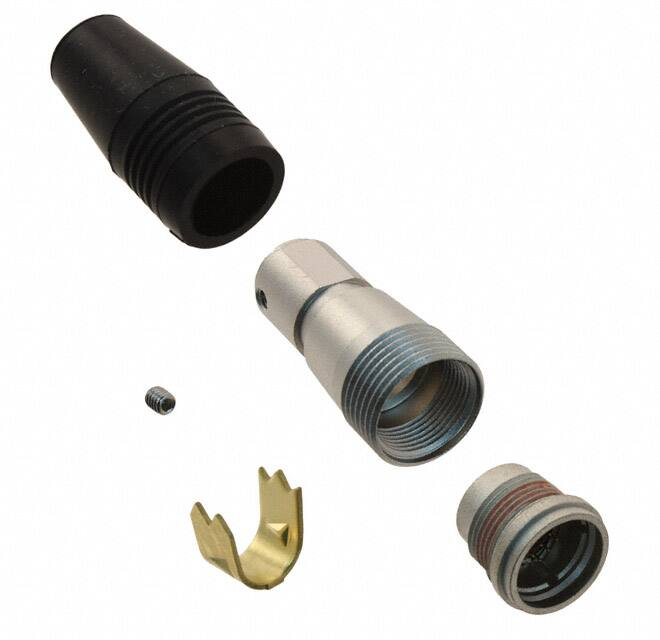

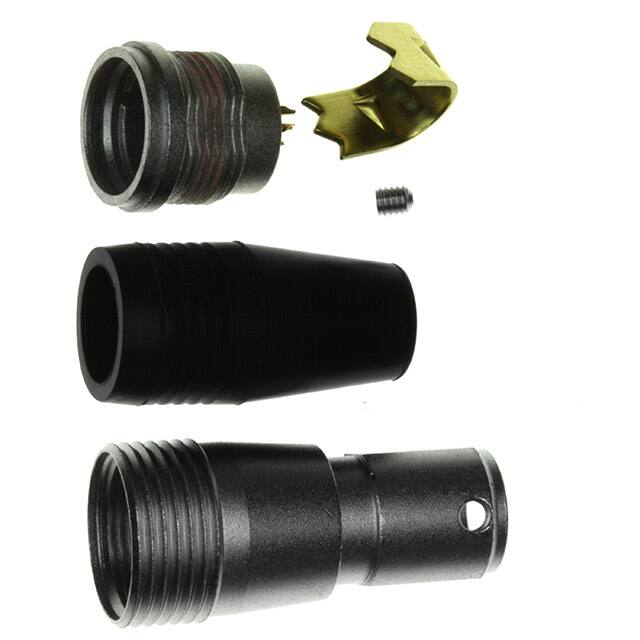

HR25A-9J-12P

HR25A-9J-12P

  • 厂商:

    HRS(广濑)

  • 封装:

    -

  • 描述:

    CONN JACK MALE 12P GOLD SLDR CUP

  • 数据手册
  • 价格&库存
HR25A-9J-12P 数据手册
Miniature Push-Pull Circular Connectors HR25A Series Mated dimensions 40.3 Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 31.8 Features 1. Small size – high density Outer diameters - plugs (max) : 11mm : 4, 6 and 8 positions 13mm : 12,16 and 20 positions 2. Simple push-in/ pull-out mating / un-mating Polarized for correct insertion by a straight push-in movement. Built-in lock release mechanism securely locks mated connectors while allowing quick disconnection by simply pulling on the plug release collar. 3. Several mounting number of positions, styles and terminations Number of positions : 4, 6, 8, 12, 16 and 20 Connector : Plug, jack, receptacle Termination : Solder, crimp or PCB mounting type only for receptacle Choice of socket or pin contacts for plugs and receptacles. 4. Metal shells Secure lock between the metal shells provides excellent ground connection for the applications requiring EMI protection. 5. RoHS compliant All materials used in are complaint with RoHS regulations. Diagrams of Connectors in Combination Plugs Receptacles Solder termination Solder termination Crimp termination Crimp termination PCB mounting Jacks Solder termination Crimp termination In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. 2018.7③ 1 HR25A Series●Miniature Push-Pull Circular Connectors Specifications Ratings Current rating 1A Voltage rating 30V AC, 42V DC Item 1. Insulation resistance 2. Withstanding voltage 3. Contact resistance 4. Durability -25ç to +85ç Storage temperature range -10ç to +60ç Specification 1,000Mø min. No flashover or insulation breakdown 30mø max. Contact resistance : 50mø max. No electrical discontinuity of 10µs or longer No damage, cracks or parts dislocation. Insulation resistance : 5Mø min. (at high humidity) Insulation resistance : 50Mø min. (when dry) No damage, cracks or parts dislocation. 5. Vibration 6. Humidity 7. Temperature cycle Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Operating temperature range Conditions 100V DC 100V AC / 1 minute (test voltage) 1A DC No damage, cracks or parts dislocation 1,000 cycles Frequency : 10 to 55Hz, single amplitude of 0.75mm 5 minute cycle, 10 cycles in each of the 3 axis 96 hours at 40ç, and humidity of 90 to 95% Temperature : -55ç / room temp. / +85ç / room temp. Insulation resistance : 1,000Mø min. Time 5 cycles : 30min. /2 to 3 min. / 30min. /2 to 3 min. Materials / Finish Item Material Zinc alloy PPS Ethylene propylene rubber, Outer shell Insulator Plug Gasket, boots Jack Chloroprene rubber Phosphor bronze Zinc alloy PPS Phosphor bronze Contacts Outer shell Insulator Contacts Receptacle Finish Nickel plated Remarks –––––––– UL94V-0 –––––––– Gold plated Nickel plated Gold plated –––––––– –––––––– UL94V-0 –––––––– ■Product Number Structure Refer to the chart below when determining the product specifications from the product number. Please select from the product numbers listed in this catalog when placing orders. HR25A − 7 P − 6 S C (**) q w e r t y u q Model name : HR25A Series w Shell size : The shell size is the outer diameter of the mating end of the plug. e Connector type : S : Female contacts P : Male contacts y Termination type : Blank : Solder P : Plug C : Crimp R : Receptacle A : DIP J : Jack r Number of contacts : 4, 6, 8, 12, 16, 20 2 t Contact type : A two-digit character is added to u Other specifications indicate other specifications as needed. HR25A Series●Miniature Push-Pull Circular Connectors Plug ●Solder termination (contacts inserted) Ø5 4 6 Ø11 Ø7.45 1 3 Shell size : 7 35.3 Ø7 20 Ø13 Ø9.45 1 2 Shell size : 9 5 Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. HR25A-7P-6P(31) 43.8 All dimensions : mm HR25A-9P-20P Shell size 7 9 No. of contacts Male contact type Part No. HRS No. Female contact type Part No. HRS No. 4 HR25A-7P-4P 125-0612-1 HR25A-7P-4S 125-0613-4 6 HR25A-7P-6P(31) 125-0602-8 31 HR25A-7P-6S 125-0611-9 8 HR25A-7P-8P 125-0609-7 HR25A-7P-8S 125-0610-6 12 HR25A-9P-12P 125-0607-1 HR25A-9P-12S 125-0608-4 16 HR25A-9P-16P 125-0605-6 HR25A-9P-16S 125-0606-9 20 HR25A-9P-20P 125-0600-2 HR25A-9P-20S 125-0604-3 ●Crimp termination (separate contacts required) Shell size 9 No. of contacts Male contact type Part No. Female contact type HRS No. Part No. HRS No. 12 HR25A-9P-12PC 125-0652-6 HR25A-9P-12SC 125-0653-9 16 HR25A-9P-16PC 125-0650-0 HR25A-9P-16SC 125-0651-3 20 HR25A-9P-20PC 125-0648-9 HR25A-9P-20SC 125-0649-1 3 HR25A Series●Miniature Push-Pull Circular Connectors Receptacle ●Solder termination (contacts inserted) 9 6 Ø11 3 1 1 3 4 3 6 4 Shell size : 7 11.8 14.3 12HEX Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. HR25A-7R-6S Ø13 3 11.8 14.3 11 20 1 2 20 2 5 A 15 Shell size : 9 14HEX All dimensions : mm HR25A-9R-20S Shell size 7 9 Male contact type No. of contacts Female contact type Part No. HRS No. Part No. HRS No. 4 HR25A-7R-4P 125-0623-8 HR25A-7R-4S 125-0622-5 6 HR25A-7R-6P 125-0621-2 HR25A-7R-6S 125-0603-0 8 HR25A-7R-8P 125-0620-0 HR25A-7R-8S 125-0619-0 12 HR25A-9R-12P 125-0618-8 HR25A-9R-12S 125-0617-5 16 HR25A-9R-16P 125-0616-2 HR25A-9R-16S 125-0615-0 20 HR25A-9R-20P 125-0614-7 HR25A-9R-20S 125-0601-5 ●Crimp termination (separate contacts required) Female contact type HR25A-9R-20SC Ø13 11 Ø13 5 1 2 19 5 1 20 11.8 20 16 A 13.8 19 A 2 16 3 3 11 Male contact type HR25A-9R-20PC 14HEX 14HEX All dimensions : mm Shell size 9 4 No. of contacts Male contact type Female contact type Part No. HRS No. Part No. HRS No. 12 HR25A-9R-12PC 125-0659-5 HR25A-9R-12SC 125-0658-2 16 HR25A-9R-16PC 125-0657-0 HR25A-9R-16SC 125-0656-7 20 HR25A-9R-20PC 125-0654-1 HR25A-9R-20SC 125-0655-4 HR25A Series●Miniature Push-Pull Circular Connectors Receptacle ●Through hole (for PC board mounting) Shell size : 7 Shell size : 9 HR25A-7R-6SA HR25A-9R-20SA 11 20 15 2 9 Ø11 3 6 1 Ø13 11.8 12.9 12 3 20 12HEX 2 A 11.8 12.9 1 4 3 5 3 A 6 4 14HEX 2 All dimensions : mm No. of contacts 4 6 8 12 16 20 7 9 Male contact type Part No. HRS No. HR25A-7R-4PA 125-0647-6 HR25A-7R-6PA 125-0645-0 HR25A-7R-8PA 125-0643-5 HR25A-9R-12PA 125-0641-0 HR25A-9R-16PA 125-0639-8 HR25A-9R-20PA 125-0637-2 Female contact type Part No. HRS No. HR25A-7R-4SA 125-0646-3 HR25A-7R-6SA 125-0644-8 HR25A-7R-8SA 125-0642-2 HR25A-9R-12SA 125-0640-7 HR25A-9R-16SA 125-0638-5 HR25A-9R-20SA 125-0636-0 Jack ●Solder termination (contact inserted) 35.8 Ø7 Ø13.8 20 15 2 Ø5 Ø11.8 6 HR25A-9J-20S 3 Shell size: 9 HR25A-7J-6S 4 Shell size : 7 1 Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Shell size 43.8 All dimensions : mm Shell size 7 9 No. of contacts 4 6 8 12 16 20 Male contact type Part No. HRS No. HR25A-7J-4P 125-0635-7 HR25A-7J-6P 125-0633-1 HR25A-7J-8P 125-0631-6 HR25A-9J-12P 125-0629-4 HR25A-9J-16P 125-0627-9 HR25A-9J-20P 125-0625-3 Female contact type Part No. HRS No. HR25A-7J-4S 125-0634-4 HR25A-7J-6S 125-0632-9 HR25A-7J-8S 125-0630-3 HR25A-9J-12S 125-0628-1 HR25A-9J-16S 125-0626-6 HR25A-9J-20S 125-0624-0 ●Crimp termination (separate contacts required) Shell size No. of contacts 9 12 16 20 Male contact type Part No. HRS No. HR25A-9J-12PC 125-0665-8 HR25A-9J-16PC 125-0663-2 HR25A-9J-20PC 125-0661-7 Female contact type Part No. HRS No. HR25A-9J-12SC 125-0664-5 HR25A-9J-16SC 125-0662-0 HR25A-9J-20SC 125-0660-4 5 HR25A Series●Miniature Push-Pull Circular Connectors Crimp contact Female contact 0.88 0.88 Male contact 13.4 13.4 9.4 0.7 4 4 0.7 9.4 All dimensions : mm Type Part No. Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Loose contact Reel contact Conductor size / construction HRS No. HR25-PC-111 125-0419-1 HR25-PC-211 125-0420-0 Type Part No. Loose contact Reel contact 30 AWG Conductor size / construction HRS No. HR25-SC-111 125-0421-3 HR25-SC-211 125-0422-6 30 AWG Note 1 : Wire jacket outer diameter 0.71mm max. Note 2 : Loose piece contacts are packaged 100 pcs/pack. Reel contacts are packaged 10,000 pcs/reel. Applicable tools Type Manual contact crimping tool Automatic crimping machine Applicator Cable clamp crimp tool Part No. HR25-TA3032HC CM-105C AP105-HR25-1 HR10A-TC-02 HR25A-7P-T02 HR25-7P-T01 HR25A-9P-T02 HR25-9P-T01 HR25-TP Solder termination fixture Plug shell tightening fixture Contact extraction tool HRS No. 150-0207-3 901-0001-0 901-2040-6 150-0041-2 150-0243-7 150-0085-8 150-0242-4 150-0086-0 150-0091-0 Used on HR25-PC-111 or HR25-SC-111 — HR25-PC-211 or HR25-SC-211 — HR25A-7P For tightening HR25A-7P For wiring HR25A-9P For tightening HR25A-9P For wiring — Panel cutouts B All dimensions : mm A ØD Dimensions A B C D Applicable panel thickness C HR25A-7R HR25A-9R 1.55 +0.05 0 9.05 +0.03 _0.02 5.1 +0.1 0 10 +0.05 0 11.05 +0.03 _0.02 6.1 +00.1 12 +00.05 0.7 to 2 Note 1 : The receptacle panel cutout is a view from the mating side. PCB mounting pattern (for through-hole PC board mounting) 0.7 3 2 2 4 6 2 5 6-Ø0.5+0.1 0 2.8 1.4 5 8 3 12 1 4 12-Ø0.5+0.1 0 7 8 8-Ø0.5+0.1 0 2.1 0.7 2.1 0.7 14 1 3 2 15 19 11 13 16 16-Ø0.5+0.1 0 5 6 8 9 2.1 0.7 4 1.4 1 2.8 1.4 4 3.1 1.9 0.7 2.1 0.7 2.1 0.7 1 1 0.7 4 1.5 1.5 16 3.1 1.9 0.7 3 0.9 2 4-Ø0.5 +0.1 0 2.1 0.7 1.4 1 1.5 1.5 1 0.9 0.9 0.9 1 1.4 2.8 20 20-Ø0.5+0.1 0 1.4 2.8 Note 1 : The above diagrams are viewed from the engagement side of the socket insert (i.e., the wiring side of the pin insert). mark of the above diagrams indicates the engagement guide key position. Note 2 : The Note 3 : Plated through hole location and diameter tolerance: ±0.05. Δ 6 HR25A Series●Miniature Push-Pull Circular Connectors Contact Position Arrangement Shell size Size 7 1 2 1 Contact configuration 1 4 3 2 4 5 3 2 3 4 6 5 6 7 8 No. of contacts 4 6 100V AC for 1 minute Current capacity 1A Insulation resistance 1,000Mø or greater Contact resistance 30mø Solderpot inner diameter 0.5mm dia. Shell size Size 9 1 Contact configuration 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 6 7 8 9 9 10 11 12 13 11 12 13 14 14 15 16 2 16 3 4 18 17 5 10 15 19 20 No. of contacts Withstand voltage 12 16 Insulation resistance 1A 1,000Mø or greater Contact resistance Solderpot inner diameter 20 100V AC for 1 minute Current capacity 30mø 0.5mm dia. Note 1 : The above diagrams are viewed from the engagement side of the socket insert (i.e., the wiring side of the pin insert). Note 2 : The Δ Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Withstand voltage 8 mark of the above diagrams indicates the engagement guide key position. Note 3 : The withstand voltage indicates the test voltage value. For regular use the voltage used should be less than 30V AC or 42V DC. Note 4 : The current capacity of the crimp terminals indicates the value when using wire of 30 AWG. Note 5 : The insulation resistance indicates a value when measured at 100V DC. Precautions 1. Switch off the power of the circuit before disconnecting or plugging-in the connectors. 2. Use connectors with socket contacts at the power side of the circuit. 3. Make sure that the coupling is in completely cocked position. 4. Cable clamping, cable rotation, and other forces may vary with the cable construction. Please make sure that your cable is suitable for use with these connectors before usage and production. 7 Oct.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved. HR25A Series●Miniature Push-Pull Circular Connectors USA: HIROSE ELECTRIC (U.S.A.), INC. HEADQUARTERS CHICAGO OFFICE 2300 Warrenville Road, Suite 150, Downers Grove, IL 60515 Phone : +1-630-282-6700 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. SAN JOSE OFFICE 2841 Junction Ave, Suite 200 San Jose, CA. 95134 Phone : +1-408-253-9640 Fax : +1-408-253-9641 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. DETROIT OFFICE (AUTOMOTIVE) 17197 N. Laurel Park Drive, Suite 253, Livonia, MI 48152 Phone : +1-734-542-9963 Fax : +1-734-542-9964 http://www.hirose.com/us/ USA: HIROSE ELECTRIC (U.S.A.), INC. BOSTON OFFICE 300 Brickstone Square Suite 201, Andover, MA 01810 Phone : +1-978-662-5255 THE NETHERLANDS: HIROSE ELECTRIC EUROPE B.V. Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. GERMAN BRANCH Schoenbergstr. 20, 73760 ostfildern Phone : +49-711-456002-1 Fax : +49-711-456002-299 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. NUREMBERG OFFICE Neumeyerstrasse 22-26, 90411 Nurnberg Phone : +49-911 32 68 89 63 Fax : +49-911 32 68 89 69 http://www.hirose.com/eu/ GERMANY: HIROSE ELECTRIC EUROPE B.V. HANOVER OFFICE Bayernstr. 3, Haus C 30855 Langenhagen, Germany Phone : +49-511 97 82 61 30 Fax : +49-511 97 82 61 35 http://www.hirose.com/eu/ FRANCE: HIROSE ELECTRIC EUROPE B.V. PARIS OFFICE 130 Avenue Joseph Kessel, Bat E, 78960 Voisins le Bretonneux, France Phone : +33-1-85764886 Fax : +33-1-85764823 http://www.hirose.com/eu/ UNITED KINGDOM: HIROSE ELECTRIC EUROPE BV (UK BRANCH) 4 Newton Court, Kelvin Drive, Knowlhill, Milton Keynes, MK5 8NH Phone : +44-1908 202050 Fax : +44-1908 202058 http://www.hirose.com/eu/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. (SHANGHAI, HEADQUARTERS) 18, Enterprise Center Tower 2, 209# Gong He Road, Jing’an District, Shanghai, CHINA 200070 Phone : +86-21-6391-3355 Fax : +86-21-6391-3335 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO.,LTD. BEIJING BRANCH A1001, Ocean International Center, Building 56# East 4th Ring Middle Road, ChaoYang District, Beijing, 100025 Phone : +86-10-5165-9332 Fax : +86-10-5908-1381 http://www.hirose.com/cn/ CHINA: HIROSE ELECTRIC (CHINA) CO., LTD. SHENZHEN BRANCH Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre, 5002 Shen Nan Dong Road, Shenzhen City, Guangdong Province, 518008 Phone : +86-755-8207-0851 Fax : +86-755-8207-0873 http://www.hirose.com/cn/ HONG KONG: HIROSE ELECTRIC HONGKONG TRADING CO., LTD. Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560 http://www.hirose.com/hk/ TAIWAN: HIROSE ELECTRIC TAIWAN CO., LTD. 103 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377 Fax : +886-2-2555-7355 http://www.hirose.com/tw/ KOREA: HIROSE KOREA CO.,LTD. 143, Gongdan 1-daero, Siheung-si, Gyeonggi-do, 15084, Korea Phone : +82-31-496-7000 Fax : +82-31-496-7100 http://www.hirose.co.kr/ SINGAPORE: INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. DELHI LIAISON OFFICE HIROSE ELECTRIC SINGAPORE PTE. LTD. 03, Anson Road, #20-01, Springleaf Tower, Office NO.552, Regus-Green Boulevard, Level5, Tower C, Sec62, Plot B-9A, Block B, Noida, 201301, Uttar Pradesh, India Singapore 079909 Phone : +91-12-660-8018 Phone : +65-6324-6113 Fax : +91-120-4804949 Fax : +65-6324-6123 http://www.hirose.com/sg/ http://www.hirose.com/sg/ INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGALORE LIAISON OFFICE Unit No-403, 4th Floor, No-84, Barton Centre, Mahatma Gandhi (MG) Road, Bangalore 560 001, Karnataka, India Phone : +91-80-4120 1907 Fax : +91-80-4120 9908 http://www.hirose.com/sg/ MALAYSIA: THAILAND: PENANG REPRESENTATIVE OFFICE BANGKOK OFFICE (REPRESENTATIVE OFFICE) 73-3-1, Ideal@The One, Jalan Mahsuri, Bayan Unit 4703, 47th FL., 1 Empire Tower, South Sathorn Road, Yannawa, Sathorn, Bangkok 10120 Thailand Lepas Penang, 11950, Malaysia Phone : +66-2-686-1255 Phone : +604-648-5536 Fax : +66-2-686-3433 http://www.hirose.com/sg/ http://www.hirose.com/sg/ ® 8 2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-3526 Fax: +81-45-591-3726 http://www.hirose.com http://www.hirose-connectors.com The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 07/2018. Contents are subject to change without notice for the purpose of improvements.
