FFA.1S.304.CLAC42Z

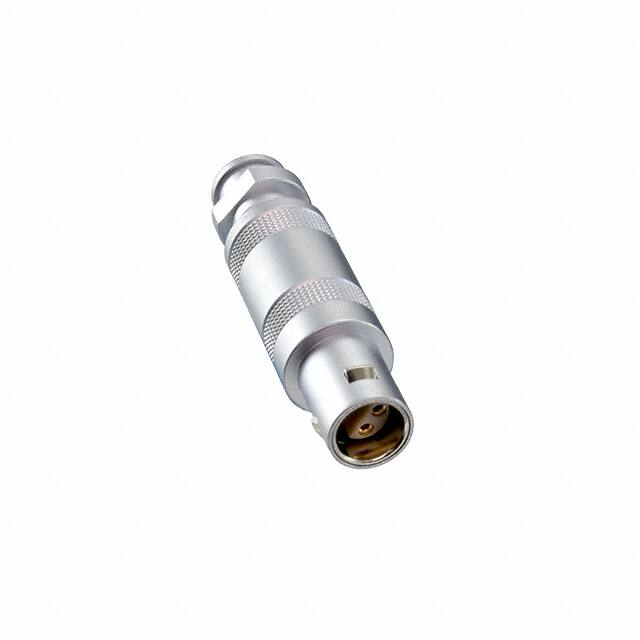

FFA.1S.304.CLAC42Z www.lemo.com SUMMARY # Wires Low voltage 4 Image is for illustrative purpose only Series 1S Termination type Male solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 3.20 - 4.20 mm Status active Matching parts ERA.1S.304.CLL Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FFA*: Straight plug, cable collet and nut for fitting a bend relief Keying Hermaphroditic keying (half moon insert) with male pin 1 Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Variant Z : Nut for fitting a bend relief Weight 18.39 g Performance Configuration 1S.304 : 4 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.0354in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) R (max): 4.8 mOhm Vtest: 1200 V (AC), 1800 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Air clearance min.: 1.1 mm Creepage distance min.: 1.1 mm Others Endurance (Shell): 5000 mating cycles Temp (min / max): -55°C / +250°C Humidity (max): 144 hr DRAWINGS Dimensions A L M S2 mm. 12 42.5 31.5 9 in. 0,47 1,67 1,24 0,35 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Spanner wrench: DCD.1B.015.PA090 Cables 40080 PVC Black 40086 PVC Blue 40140 PVC Black 40240 PTFE White 4260 PTFE White LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
