EGG.0B.302.CYM

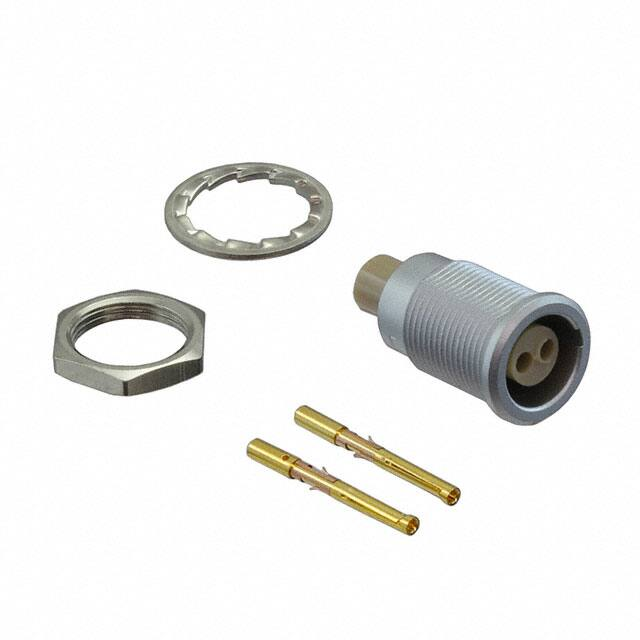

EGG.0B.302.CYM www.lemo.com SUMMARY # Wires Low voltage 2 Image is for illustrative purpose only Series 0B Termination type Female crimp IP rating 50 AWG wire size 24.00 - 20.00 Cable Ø 0.00 - 0.00 mm Status active Matching parts FGG.0B.302.CYCD52 Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model EG*: Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 5.28 g Performance Configuration 0B.302 : 2 Low Voltage Insulator Y: PEEK for crimp contacts Rated Current 10 Amps Specifications Contact Type: Crimp Contact Retention: 30 N Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 1.1 mm (0.043in) Min. Conductor: 0.25 mm^2 (AWG 24) Max. Conductor: 0.5 mm^2 (AWG 20) R (max): 4.8 mOhm Vtest (contact-shell): 1200 V (AC), 1700 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/4 Vtest(contact-contact): 1450 V (AC), 2100 V (DC) Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A B E L M N S1 S3 e mm. 10 12.5 7 20.7 1.2 19.1 8.2 11 M9x0.6 in. 0,39 0,49 0,28 0,81 0,05 0,75 0,32 0,43 RECOMMENDED BY LEMO Tools LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/4 Crimp Tool: DPC.91.701.V Crimp settings: AWG/Selector = 20-22-24/6-5-5 Positionner: DCE.91.090.BVM Extractor: DCF.91.090.2LT Replacement contact: EGG.0B.660.ZZM Cables CMN.02.T20.047PGZE Grey CMN.02.T20.047PNZE CMN.02.T20.048QGZE TPR (medical) Grey CMN.02.T28.030PGCE PVC GREY CMN.02.T28.030PGZE CMN.02.T28.030PNCE Grey PVC Black 102080 PVC Grey 120184 PVC Black 120240 PVC Black 120250 PVC Grey 120500 PVC Grey 120501 PVC Grey 120751 PVC Grey 20140 PVC Grey 20140 PVC Grey 20141 PVC Grey 20142 PVC Red 20143 PVC Green 20144 PVC Black 20145 PVC Yellow 20146 PVC Black 20240 PTFE White 20260 PVC Black 20264 PVC Black 20266 PVC Violet 2050 PVC Black 20550 PUR Black 20560 PUR White 2080 PVC Grey 220750 PVC Grey CMN.02.T28.030PNZE LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/4 2221 PVC Black 2260 PTFE White 2280 PVC Black 4082 PVC Grey CMB.02.210.635 PUR Black LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 4/4
