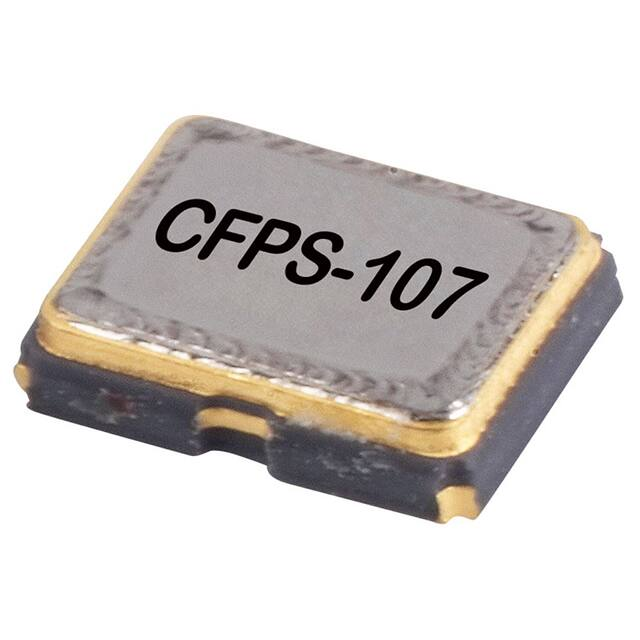

LFSPXO082291RL3K

Crystal Clock Oscillator Specification Part No. + Packaging: LFSPXO082291RL3K Customer Part: Description Suitable for real time clock applications 32.768kHz output crystal oscillators Ceramic package with a seam sealed metal lid, hermetically sealed Model CFPS-107 Model Issue number 5 Frequency Parameters Frequency 32.7680kHz Frequency Stability ±100.00ppm Operating Temperature Range Ageing -40.00 to 125.00°C ±3ppm max per year Electrical Parameters 1.8V ±5% Supply Voltage Current Draw 1.500mA Outline (mm) Output Details CMOS 15pF max 50.0ns max 40/60% Output Compatibility Drive Capability Rise and Fall Time Duty Cycle Output Control Standby Operation: Logic ‘1’ to pad 1 enables oscillator output Logic ‘0’ to pad 1 disables oscillator output; when disabled the oscillator output goes to the high impedance state No connection to pad 1 enables oscillator output Start-up Time: 35ms max 2ms typ to 90% of final amplitude (under ideal conditions @ 25°C) Standby Current: 10µA max, 1.35µA typ @ 25°C Test Circuit Environmental Parameters Storage Temperature Range: –55 to 125°C Shock: MIL-STD-883F, Method 2002.4: 1500G, 0.5ms, 3 times in each of 3 mutually perpendicular planes. Vibration: MIL-STD-883F, Method 2007.3: 20G (20Hz-2000Hz), 1.52mm amplitude Manufacturing Details RoHS Terminations RoHS Reflow Temp NiAu 260degC 10s Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: RL3K Pack Size: 3,000 Tape & reel in accordance with EIA-481-D Sales Office Contact Details: UK: +44 (0)1460 270200 France: 0800 901 383 Germany: 0800 1808 443 USA: +1.760.318.2824 Printed on 7 Nov 21 11:55 using Part Data Sheet V1.0018 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 1 of 2 Crystal Clock Oscillator Specification Part No. + Packaging: LFSPXO082291RL3K Customer Part: Alternative packing option available Wave Form Sales Office Contact Details: UK: +44 (0)1460 270200 France: 0800 901 383 Germany: 0800 1808 443 USA: +1.760.318.2824 Printed on 7 Nov 21 11:55 using Part Data Sheet V1.0018 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 2 of 2
