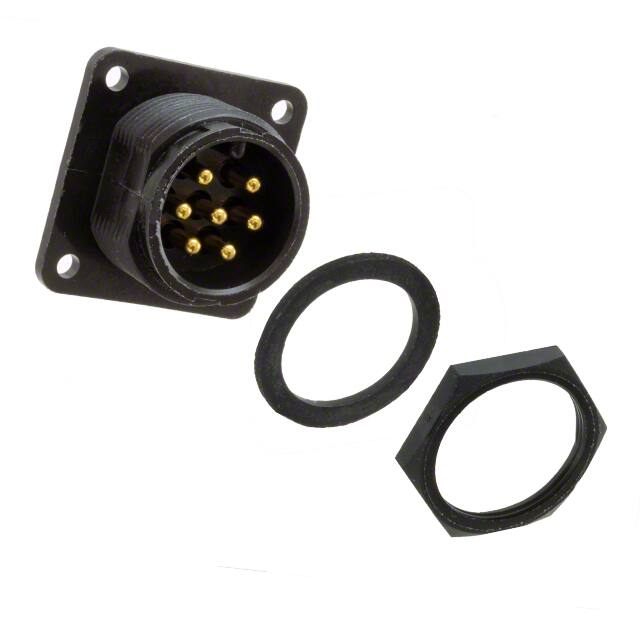

14182-7PG-3ES

MAXI-CON-X® FIELD INSTALLABLE CONNECTORS Cable Pin Panel Mount P/C Tail Panel Mount 13X8X-XXPG-XXX Matching Mates: • Cable-Cable 14X8X-XXXG-XXX Matching Mates: • Cable Pin 14XXX-XXXG-XXX Matching Mates: • Cable Pin 15X8X-XXSG-XXX • Panel 13X8X-XXPG-XXX • Cable Socket 14XXX-XXSG-XXX 13X8X-XXSG-XXX 13X8X-XXPG-XXX •Cable Socket 13X8X-XXSG-XXX Cable Socket Cable to Cable Winged Coupling Ring 13X8X-XXSG-XXX Matching Mates: • Cable-Cable 15X8X-XXXG-XXX Matching Mates: • Cable Pin W/14482 15X8X-XXPG-XXX • Panel 13X8X-XXPG-XXX • Cable Socket 14XXX-XXPG-XXX 13X8X-XXSG-XXX Dust Cap 14295 Molded Cable Assemblies Cable End ® (See pages 3 & 26) Cable to Cable Right Angle 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 18 ® MAXI-CON-X® FIELD INSTALLABLE CONNECTORS Dimensions Molded Cable Assemblies (See pages 3 & 26) 1.500 [38.1] 2.000 [50.8] 2.062 [52.4] 1.625 [41.3] CABLE END ASSEMBLY CABLE TO CABLE ASSEMBLY CABLE END ASSEMBLY STRAIGHT BOOT 0.545 [13.8] MAX. CABLE O.D. STRAIGHT BOOT 0.545 [13.8] MAX. CABLE O.D. 90º BOOT 0.445 [11.3] MAX. CABLE O.D. ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 19 ® MAXI-CON-X® FIELD INSTALLABLE CONNECTORS Part Number to Order XX X XX-XX XG-3XX Grommet Code – Cable O.D. Range: Connector Type: 13 - Cable End 14 - Panel Mount 15 - Cable to Cable Back Shell Style 3 Contact Size: 21 - .21 - .25 (5.3-6.3) 26 - .26 - .30 (6.6-7.6) 31 - .31 - .38 (7.8-9.6) Back Shell Style: 1 - #12 (7 Contacts) 2 - #20 (18 & 20 Contacts) 3 - #16 (10 Contacts) Mechanical screw-down cable clamp with grommet seal and (1) interfacial “O” ring for cable end. 3 Contact Style: 80 81 82 91 92 - Crimp (Supplied loose) P/C Tail .187” (4.7) (Supplied assembled) Solder Cup (Supplied assembled) P/C Tail .280” (7.1) (Supplied assembled)* P/C Tail .335” (8.5) (Supplied assembled)* 300 - Panel mount with hex nut & gasket. 3ES - 300 with Epoxy Number of Contacts: 7, 10, 18 & 20 Type of Contact: P - Pin S - Socket Contact Plating: G - Gold over Nickel (Standard) EMI/RFI shielded assemblies available - consult factory. *Available in #20 size contact only. Consult factory for optional threaded coupling. Consult factory for your custom design cable assemblies and connectors. (See pages 3 & 26) Contact Arrangements 1 1 2 3 3 3 5 5 6 6 8 4 2 3 4 2 1 1 2 7 7 10 11 11 13 8 6 9 12 7 10 7-#12 15 16 10-#16 7 15 12 18-#20 14 16 17 18 9 18 19 20 20-#20* Contact arrangements shown are wiring view of cable end pins/sockets. Key/keyway shown for orientation only. *Available in connector types: cable end socket, panel mount pin styles only. ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 20 ® MAXI-CON-X® FIELD INSTALLABLE CONNECTORS Specifications Typical Specifications Manufacturers Identifications Description Rating Conductor Size Configuration Certification Maxi-Con-X® Field Installable Connector & Custom Cable Assemblies 1.35 thru 13.0A, 600V #12 Contacts, 12 thru 14 AWG #16 Contacts, 16 thru 18 AWG #20 Contacts, 20 thru 24 AWG 7 - #12 Contacts 10 - #16 Contacts 18 - #20 Contacts 20 - #20 Contacts UL Recognized File #E138878 - 250V CSA Certified File #LR89277 - 600V Material Specifications Cable Pin/Socket Mechanical Backshell (Threaded) Strap Screws Grommet Coupling Ring Contacts Connector Body O-Ring Nylon, UL Recognized, Black Nylon, UL Recognized, Black Cadmium Plated Santoprene Rubber, Black Nylon, UL Recognized, Black Brass, Gold over Nickel Nylon, UL Recognized, Black Nitrile Rubber, Black Optional Winged Coupling Ring Nylon, UL Recognized, Black (W/14482) Cable to Cable Mechanical Backshell (Threaded) Grommet Strap Screws Contacts Connector Body Nylon, UL Recognized, Black Santoprene Rubber, Black Nylon, UL Recognized, Black Cadmium Plated Brass, Gold over Nickel Nylon, UL Recognized, Black Panel Mount Contacts Panel Body Gasket Hex Nut Brass, Gold over Nickel Nylon, UL Recognized, Black Nitrile Rubber, Black Nylon, UL Recognized, Black Optional Dust Cap Santoprene Rubber, Black (Part No. 14295) Mechanical Specifications Durability Minimum 300 mate/unmate cycles without mechanical or electrical failure Coupling rings have overriding locking feature to prevent loosening or separation of connector All series hex nut to withstand 10-12 inch/lb tightening torque Vibration Hex Nut Torque Electrical Specifications Voltage Current 600 V See Electrical Current Rating Chart (Page 27) Environmental Specifications Temperature Rating Corrosion Weathertight -55°C to +125°C (-67°F to +257°F) 300 Hr salt spray contacts Consult factory with specific application Molded Cable Assemblies (See Pages 3 & 26) Watertight NEMA 6P, 13: IEC IP67 ® 601 East Wildwood, Villa Park, Illinois 60181 • Telephone (630) 834-7504 • Fax (630) 834-8540 21 ®
