FGJ.2B.308.CLLD62

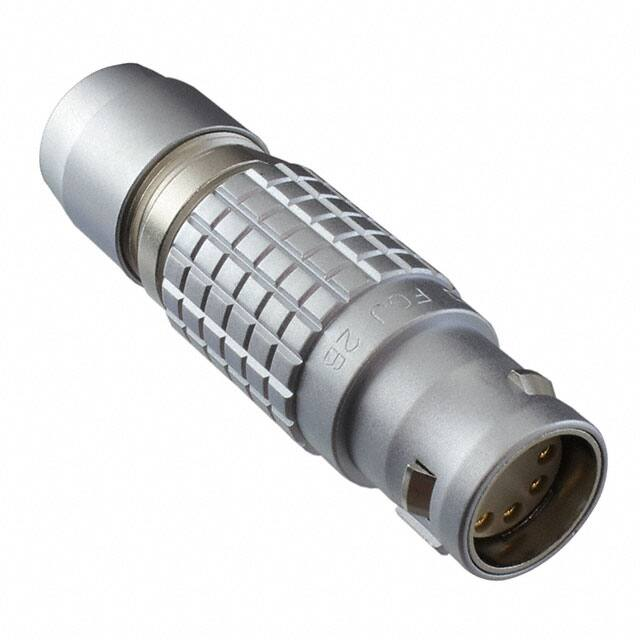

FGJ.2B.308.CLLD62 www.lemo.com SUMMARY # Wires Low voltage 8 Image is for illustrative purpose only Series 2B Termination type Female solder IP rating 50 AWG wire size 30.00 - 22.00 Cable Ø 5.30 - 6.20 mm Status active Matching parts EGJ.2B.308.CLA Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug, cable collet Keying 2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts) Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces Weight 30.20 g Performance Configuration 2B.308 : 8 Low Voltage Insulator L: PEEK (UL 94 / V-0/1.5) Rated Current 10 Amps Specifications Contact Type: Solder Contact Dia.: 0.9 mm (0.035in) Bucket Dia.: 0.8 mm (0.031in) Max. Solid Conductor: 0.34 mm^2 (AWG 22) Max. Stranded Conductor: 0.34 mm^2 (AWG 22) R (max): 4.8 mOhm Vtest (contact-shell): 1250 V (AC), 1770 V (DC) Vtest (contact-contact): 1500 V (AC), 2120 V (DC) LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Others Endurance (Shell): 5000 Temp (min / max): -55°C / +250°C Humidity (max): 1000 hr DRAWINGS Dimensions A L M S1 S2 mm. 15 50 38 13 12 in. 0,59 1,97 1,50 0,51 0,47 RECOMMENDED BY LEMO Tools Spanner wrench: DCD.2B.025.PA120 LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Cables CMN.08.T22.059QGC TPR Grey CMN.08.T22.059QGZE TPR (medical) Grey 16080 PVC Grey 180240 PVC Black 180260 PVC Black 335991 PVC Black 42265 PVC Yellow 80140 PVC Grey LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
