XLR CABLE CONNECTORS
3 PIN XLR
3 pin XLR style connectors
perfect for use in audio cables
and also in entry level DMX
cables.
IO-XLR3-M-BK
SPECIFICATIONS

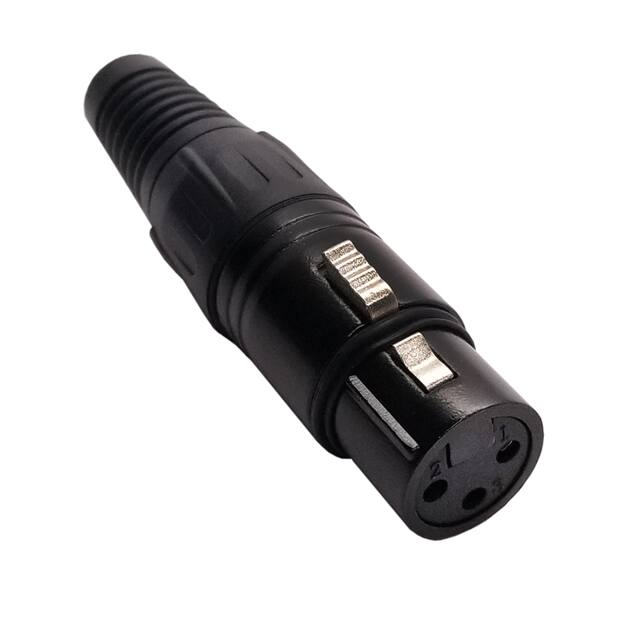

IO-XLR3-F-BK
MECHANICAL
PRODUCT
Lifetime: > 1000 Mating Cycles
Gender: Male (IO-XLR3-M-BK)
Female (IO-XLR3-F-BK)
Contacts: 3
Cable O.D.: 3.5 - 8.0mm
Wiresize (Male): 2.0mm Max
Wiresize (Female): 2.5mm Max
ELECTRICAL
Wiring: Solder Contacts
Capacitance Between Contacts: < 2 pF
Capacitance Between Contact and Ground: < 2 pF
Solderability: Complies with IEC
60068-2-20
Contact Resistance: < 3 mΩ
MATERIAL
Insulation Resistance: ≥ 5000 MΩ
Pins: Brass (IO-XLR3-M-BK)
Dielectric Strength: 1500V @ 60s
Phosphor Bronze (IO-XLR3-F-BK)
Current Rating: 15 A / 125 V AC
Pin Plating: Silver
ENVIRONMENTAL
Push Button: Die Cast Zinc
Standard Compliance: IEC 61076-2-103
Locking Mechanism: Stainless Steel
UL Flammability Rating: UL 94 HB
Locking Mechanism Finish: Tin
Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F)
Shell: Die Cast Zinc
Shell Finish: Black (Electrocoated)
Insert: POM
Bushing: PVC
Product specifications may change without prior notification
Io Audio Technologies® is a registered trademark of Knight Electronics, Inc.
10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 |
www.ioaudiotechnologies.com
DRAWINGS
IO-XLR3-M-BK
IO-XLR3-F-BK
FEATURES & APPLICATIONS
The IO-XLR3-M-BK and IO-XLR3-F-BK connectors feature durable die cast zinc shells with
built in latch locks which provide a reliable connection when mated with the opposite gender.
They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief
while an additional rubber boot delivers extended support from excessive bending. The silver
plated contacts ensure a great signal every time. 3 pin XLR connectors are a perfect solution for
applications requiring a rugged and dependable locking connection. Because the housing
construction is threaded, the connectors require no tools for assembly, making them ideal for
onsite termination and allow the user to be able to troubleshoot connection issues quickly. This
connector is perfect for use in balanced audio, DMX, low voltage power, and control
applications where the termination method is solder cups.
These connectors are also available with gold plated contacts (IO-XLR3-M-BKAU &
IO-XLR3-F-BKAU)
PART NUMBER BREAKDOWN
STANDARDS & CLASSIFICATIONS
IO-XLR3-M-BK
Connector Type
IO-XLR3-M-BK
Number of Pins
IO-XLR3-M-BK
Gender
IO-XLR3-M-BK
Body Color
