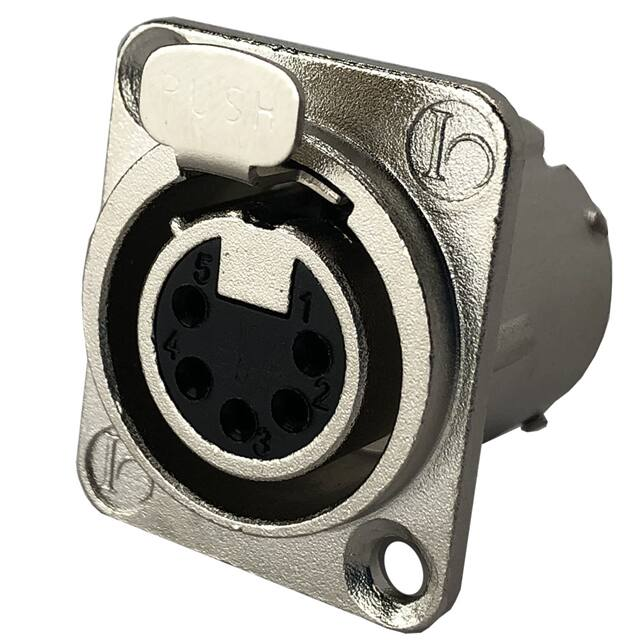

IO-XLR5-F-JLX

XLR CHASSIS CONNECTORS 5 PIN JLX SERIES Locking 3 pin connectors with rugged metal shells for audio and lighting control. IO-XLR5-M-JLX IO-XLR5-F-JLX SPECIFICATIONS PRODUCT MECHANICAL Gender: Male (IO-XLR5-M-JLX) Lifetime: > 1000 Mating Cycles Female (IO-XLR5-F-JLX) Wiresize: 1.0mm Max O.D. Contacts: 5 Wiring: Solder Contacts ELECTRICAL Locking Device: Latch Lock Capacitance Between Contacts: ≤ 2.6 pF Mounting Direction: Front Capacitance Between Contact and Ground: ≤ 2.8 pF Solderability: Complies with IEC 60068-2-20 Contact Resistance: < 7 mΩ Insulation Resistance: ≥ 5000 MΩ MATERIAL Dielectric Strength: 1500V @ 60s Pins: Brass (IO-XLR5-M-JLX) Current Rating: 7.5 A / 125 V AC Phosphor Bronze (IO-XLR5-F-JLX) Grounding: Separate ground contact shell, mating connector shell, and front panel Pin Plating: Silver ENVIRONMENTAL Grounding Terminal Plating: Tin Standard Compliance: IEC 61076-2-103 Shell: Die Cast Zinc UL Flammability: Meets UL 94 HB Shell Finish: Nickel Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Push Button: Die Cast Zinc Grounding Terminal: Brass Push Button Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR5-F-JLX IO-XLR5-M-JLX FEATURES & APPLICATIONS Panel Cutout JLX Series XLR chassis connectors offer a sleek and robust connection in a standard "J" Size shell. This series is perfect for permanent installations or design-in applications where the termination method is solder cups. The connectors feature “metal on metal” housing which provides improved RF and EMI protection, making these connectors perfect for use in high noise environments or where cell phone or radio frequencies are most offensive. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in 3 or 5 pin variations. The JLX Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created. PART NUMBER BREAKDOWN: STANDARDS & CLASSIFICATIONS IO-XLR5-M-JLX Series Identifier IO-XLR5-M-JLX Number of Pins IO-XLR5-M-JLX Gender IO-XLR5-M-JLX Series Identifier Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
