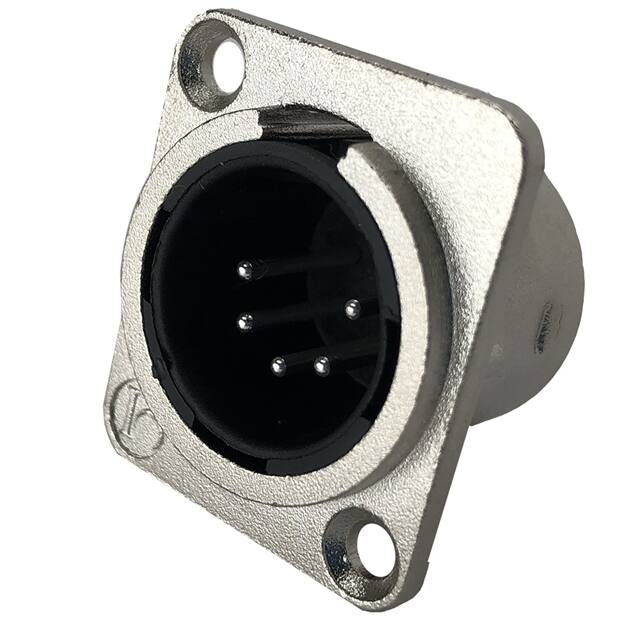

IO-XLR5-M-JL

XLR CHASSIS CONNECTORS 5 PIN JL SERIES Locking 5 pin connectors with rugged metal shells for audio and lighting control. IO-XLR5-M-JL SPECIFICATIONS IO-XLR5-F-JL MECHANICAL PRODUCT Gender: Male (IO-XLR5-M-JL), Female (IO-XLR5-F-JL) Contacts: 5 Lifetime: > 1000 Mating Cycles Wiresize: 1.0mm Max O.D. Wiring: Solder Contacts Locking Device: Latch Lock ELECTRICAL Mounting Direction: Front Capacitance Between Contacts: ≤ 2.4 pF Capacitance Between Contact and Ground: ≤ 2.6 pF Solderability: Complies with IEC 60068-2-20 Contact Resistance: < 7 mΩ MATERIAL Insulation Resistance: ≥ 5000 MΩ Pins: Brass (IO-XLR5-M-JL) Dielectric Strength: 1500V @ 60s Phosphor Bronze (IO-XLR5-F-JL) Current Rating: 7.5 A / 125 V AC Pin Plating: Silver Grounding: Separate ground contact to mating connector shell. Grounding Terminal: Brass Grounding Terminal Plating: Tin ENVIRONMENTAL Shell: Die Cast Zinc Standard Compliance: IEC 61076-2-103 Shell Finish: Nickel UL Flammability: Meets UL 94 HB Push Button: Die cast zinc Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Push Button Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com DRAWINGS IO-XLR5-M-JL IO-XLR5-F-JL Panel Cutout FEATURES & APPLICATIONS JL Series XLR chassis connectors offer a sleek and robust connection in a standard "J" Size shell. This series is perfect for high-noise environments like permanent installations or design-in applications where the termination method is solder cups. The connectors have nickel plated Die cast zinc housing which allows for great RF protection. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in either black or nickel housing and in 3 or 5 pin variations. The JL Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created. PART NUMBER BREAKDOWN STANDARDS & CLASSIFICATIONS IO-XLR5-M-JL Series Identifier IO-XLR5-M-JL Number of Pins IO-XLR5-M-JL Gender IO-XLR5-M-JL Series Identifier Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
