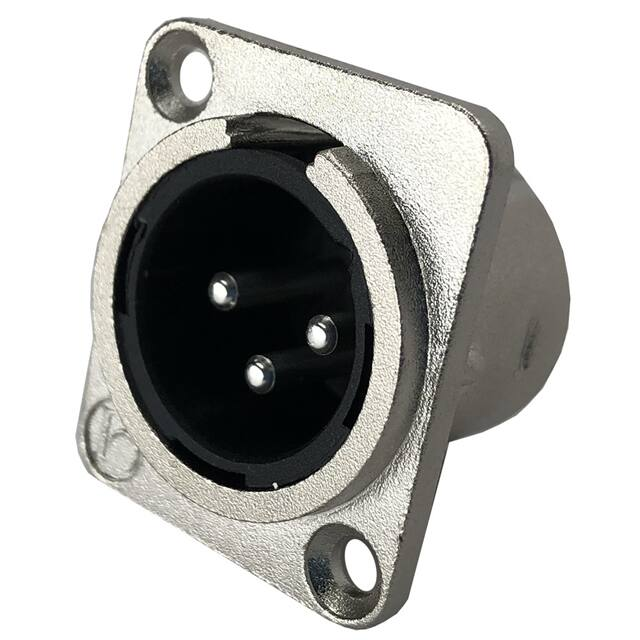

IO-XLR3-M-JL

XLR CHASSIS CONNECTORS 3 PIN JL SERIES Locking 3 pin connectors with rugged metal shells for audio and lighting control. IO-XLR3-M-JL SPECIFICATIONS IO-XLR3-F-JL MECHANICAL PRODUCT Gender: Male (IO-XLR3-M-JL) Female (IO-XLR3-F-JL) Lifetime: > 1000 Mating Cycles Wiresize (Male): 2.0mm Max O.D. Wiresize (Female): 2.5mm Max O.D. Contacts: 3 Wiring: Solder Contacts ELECTRICAL Locking Device: Latch Lock Capacitance Between Contacts: ≤ 2 pF Capacitance Between Contact and Ground: ≤ 2.1 pF Mounting Direction: Front Contact Resistance: < 3 mΩ Solderability: Complies with IEC 60068-2-20 Insulation Resistance: ≥ 5000 MΩ MATERIAL Dielectric Strength: 1500V @ 60s Pins: Brass (IO-XLR3-M-JL) Current Rating: 15 A / 125 V AC Phosphor Bronze (IO-XLR3-F-JL) Grounding: Separate ground contact to shell of mating connector and panel Pin Plating: Silver Grounding Terminal: Brass ENVIRONMENTAL Grounding Terminal Plating: Tin Standard Compliance: IEC 61076-2-103 Shell: Die Cast Zinc UL Flammability: Meets UL 94 HB Shell Finish: Nickel Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F) Push Button: Die Cast Zinc Push Button Finish: Nickel Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas , TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | DRAWINGS IO-XLR3-M-JL IO-XLR3-F-JL FEATURES & APPLICATIONS JL Series XLR chassis connectors offer a sleek and robust connection in a standard "J" Size shell. This series is perfect for high-noise environments like permanent installations or design-in applications where the termination method is solder cups. The connectors have nickel plated Die cast zinc housing which allows for great RF protection. They have precision machined, one piece, silver plated contacts and a separate tin plated ground pin which grounds to the connector housing and panel. Available in either black or nickel housing and in 3 or 5 pin variations. The JL Series XLR chassis connectors help prevent local RF interference from assisted listening, WiFi, and other radio transmitters close to the connectors. When coupled with quality shielded cables, a robust system for preventing the intrusion of unwanted noises is created. PART NUMBER BREAKDOWN: Panel Cutout STANDARDS & CLASSIFICATIONS IO-XLR3-M-JL Series Identifier IO-XLR3-M-JL Number of Pins IO-XLR3-M-JL Gender IO-XLR3-M-JL Series Identifier Product specifications may change without prior notification Io Audio Technologies® is a registered trademark of Knight Electronics, Inc. 10557 Metric Dr. Dallas, TX 75243 | 214-340-0265 | 800-323-2439 | Fax: 214-340-5870 | www.ioaudiotechnologies.com
